TP-Link AX5400 User Manual

102
Chapter 15
Customize Your Network Settings

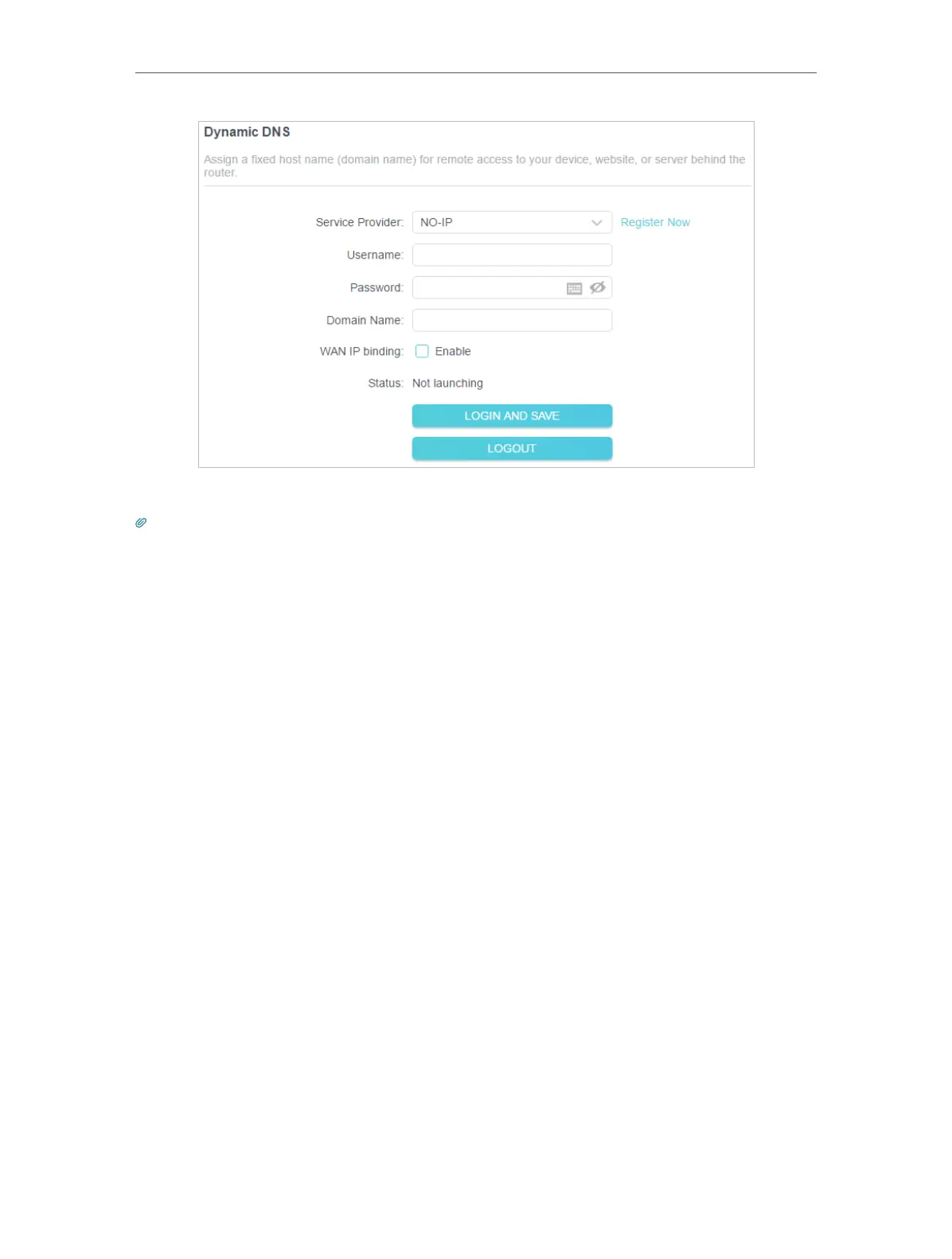

5. Click LOGIN AND SAVE.
Tips: If you want to use a new DDNS account, please click Logout first, and then log in with a new account.
15. 6. Create Static Routes
Static routing is a form of routing that is configured manually by a network administrator
or a user by adding entries into a routing table. The manually-configured routing
information guides the router in forwarding data packets to the specific destination.
I want to:
Visit multiple networks and servers at the same time.
For example, in a small office, my PC can surf the internet through Router A, but I also
want to visit my company’s network. Now I have a switch and Router B. I connect the
devices as shown in the following figure so that the physical connection between my
PC and my company’s server is established. To surf the internet and visit my company’s
network at the same time, I need to configure the static routing.

TP-Link AX5400 Specifications

General

Model	Archer AX73
Wi-Fi Standard	Wi-Fi 6 (802.11ax)
Bands	Dual-Band
Maximum Speed	5400 Mbps
2.4 GHz Speed	574 Mbps
5 GHz Speed	4804 Mbps
Frequency	2.4 GHz and 5 GHz
Antenna	6x External Antennas
Processor	1.5 GHz Triple-Core CPU
Ports	1x Gigabit WAN, 4x Gigabit LAN, 1x USB 3.0
Security	WPA3, WPA2
Features	OFDMA, MU-MIMO, Beamforming
Memory	512 MB RAM
