TP-Link Deco E4 User Manual

11
Create New Networks
On the Deco app, you can create different Deco networks bound to your TP-Link ID, and manage them conveniently from the Deco app with one
account. You can also help family or friends by managing their network on your Deco app. Two methods are provided as below to create a new network:

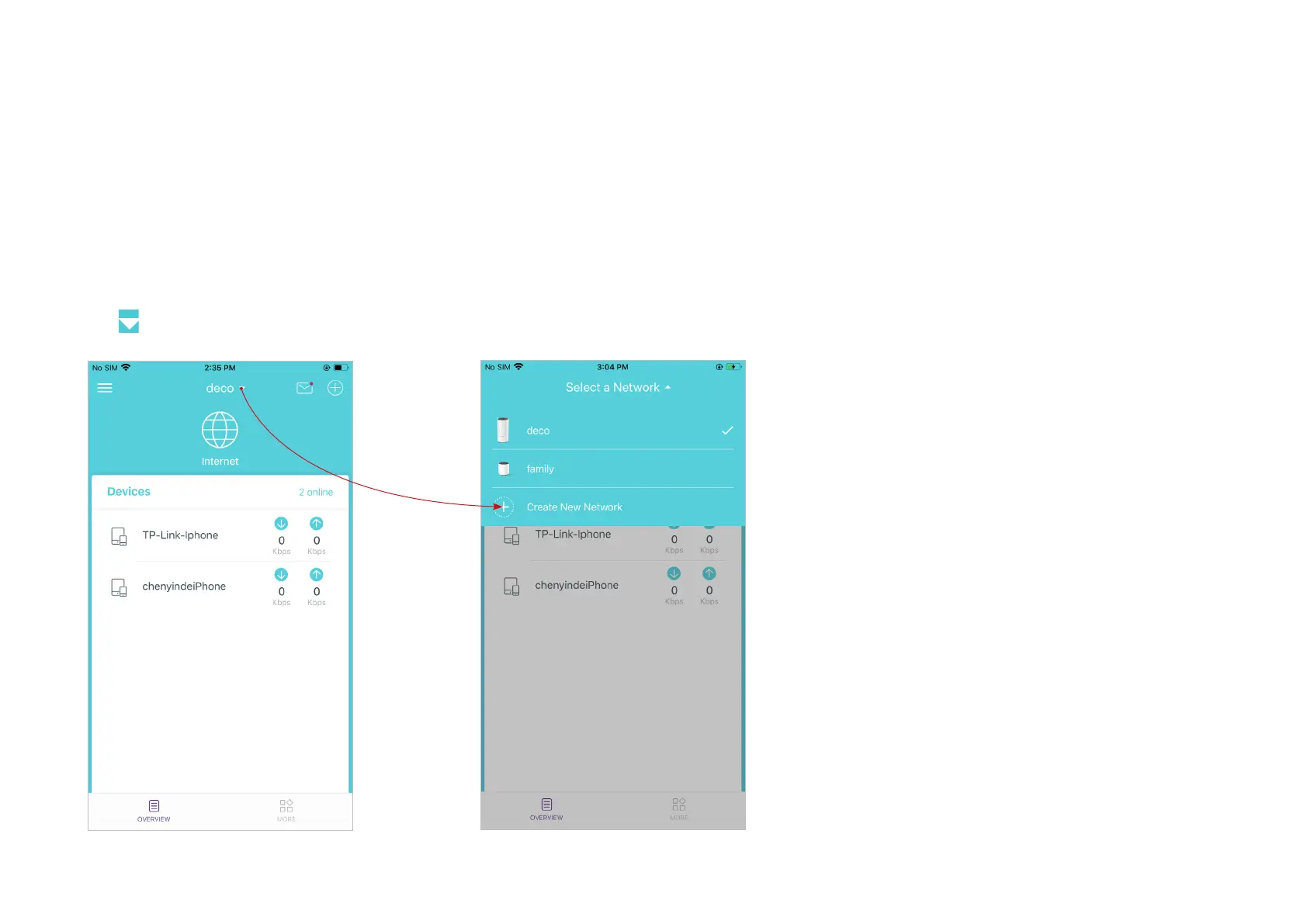

Method 1. Create a new network from the Overview page
Tap > Create New Network
Then follow the app instructions to
complete the setup

TP-Link Deco E4 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA-PSK, WPA2-PSK
Networking standards	IEEE 802.11n, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g
WLAN data transfer rate (max)	867 Mbit/s
WLAN data transfer rate (first band)	300 Mbit/s
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	2
Product type	Tabletop router
Certification	FCC, IC, NCC, BSMI, IDA, RCM, JPA, JRF, VCCI, KC
Product color	White
LED indicators	LAN, WLAN
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz
AC adapter input current	0.3 A
AC adapter output current	0.85 A
AC adapter output voltage	9 V
Firewall security	SPI Firewall
Number of guest networks (2.4 GHz)	1
Package type	Box
Number of products included	2 pc(s)
Cables included	LAN (RJ-45)
Harmonized System (HS) code	85171800
Sustainability certificates	RoHS, CE

Weight and Dimensions

Width	90.7 mm
Height	190.5 mm
Package depth	241 mm
Package width	365 mm
Package height	105 mm
Package weight	1730 g
