TP-Link TL-WR841HP User Manual

-21-
TL-WR841HP
300Mbps High Power Wireless N Router
 Dynamic IP/ Static IP - Choose either as you are given by your ISP and enter the ISP’s IP
address or the domain name. If you choose static IP and enter the domain name, you
should also enter the DNS assigned by your ISP.
 VPN Server IP/Domain Name - Enter the IP address or domain name of your VPN server.
Click the Connect button to connect immediately.
Click the Disconnect button to disconnect immediately.
Click the Save button to save your settings.

Note:
If you don't know how to choose the appropriate connection type, click the Detect button to
allow the router to automatically search your Internet connection for servers and protocols. The
connection type will be reported when an active Internet service is successfully detected by the
router. This report is for your reference only. To make sure the connection type your ISP
provides, please refer to the ISP. The various types of Internet connections that the router can
detect are as follows:
 PPPoE - Connections which use PPPoE that requires a user name and password.
 Dynamic IP - Connections which use dynamic IP address assignment.
 Static IP - Connections which use static IP address assignment.
The router cannot detect PPTP and L2TP connections with your ISP. If your ISP uses one of
these protocols, then you must configure your connection manually.

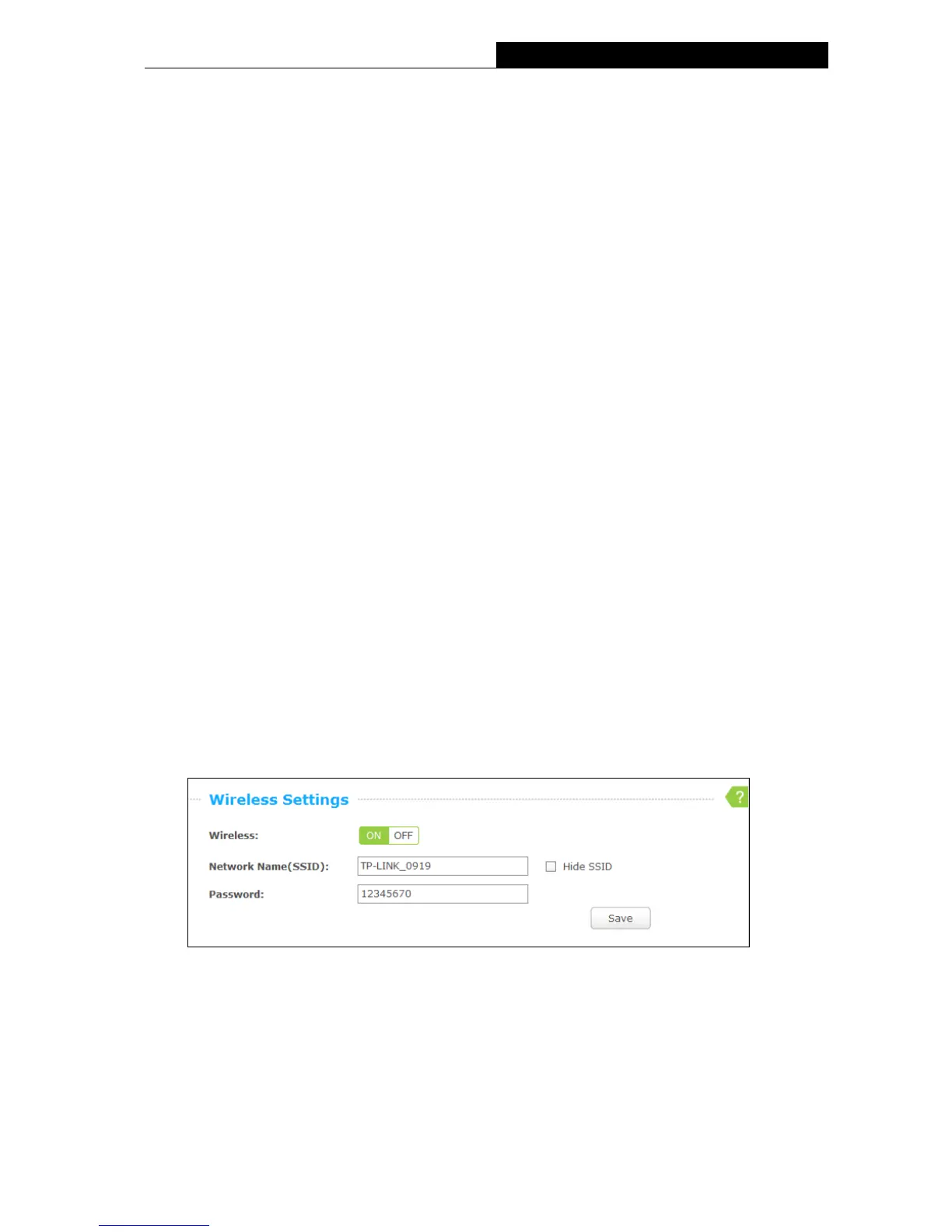

3.3.3 Wireless
Choosing menu “Basic→Wireless”, you can configure the basic settings for the wireless
network.
 Wireless - Click ON/OFF to enable or disable your wireless network.
 Network Name (SSID) - Create a name (up to 32 characters) for your wireless network. If
the Hide SSID checkbox is selected, the SSID of your wireless network will be hidden from
the Wi-Fi network.
 Password - Create a password for your wireless network. The password must have a
minimum of 8 characters in length.
Click the Save button to save your settings.

TP-Link TL-WR841HP Specifications

General

Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Number of guest networks (2.4 GHz)	1
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
USB port	No
Ethernet LAN (RJ-45) ports	4
Supported network protocols	Dynamic IP, Static IP, PPPoE, PPTP, L2TP
NAT functionality	Virtual Server Port Forwarding Port Triggering DMZ UPnP
Security algorithms	WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise
Transmit power	30 dBmW
Antennas quantity	2
Antenna connector type	-
Antenna gain level (max)	9 dBi
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Product type	Tabletop router
Product color	Black
Cables included	LAN (RJ-45)
WAN connection type	RJ-45
Output current	1 A
Output voltage	12 V
Power source type	DC

Weight and Dimensions

Depth	190 mm
Width	227.5 mm
Height	48.3 mm
