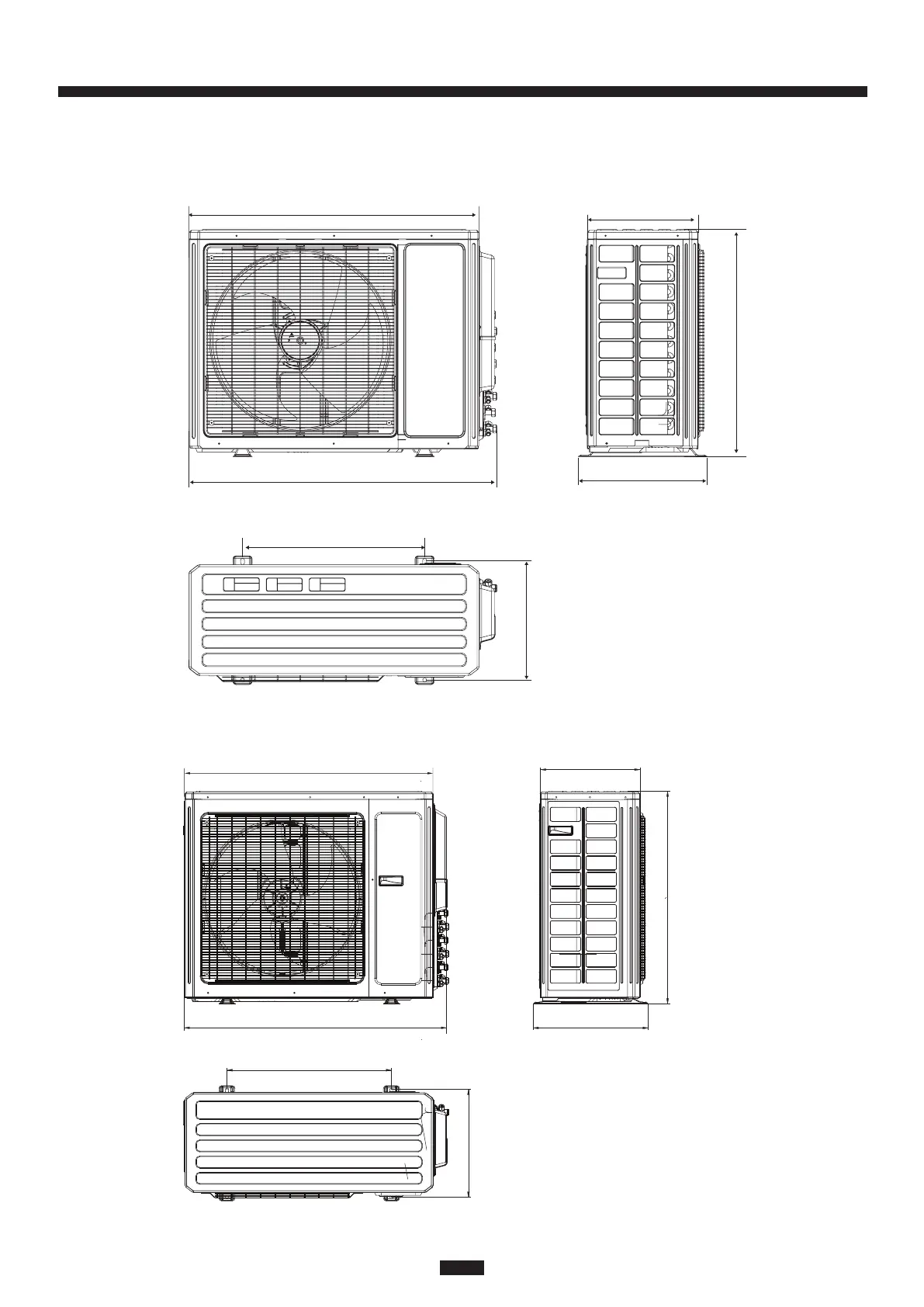

Outline and Dimensions of the Outdoor Unit
18K Unit
21K Units
35.1(892)
38(965)
27.6(700)
15.6(396)
13.4(341)
22(559)
14.5(368)
Unit: inch(mm)
Unit: inch(mm)
38.6(979)
35.1(892)
13.4(341)
17.3(440)
31.1(790)
22(559)
14.5(368)
The dimensions in these dra
wings
are rounded according to standard
measurement.
The dimensions in these dra
wings
are rounded according to standard
measurement.
32
22 Series Multi-Zone
31
33
Table of Contents
Table of Contents
4
Safety Precautions
5
Pre-Installation Checklist
6
Product Introduction
7
Combinations for Outdoor and Indoor Units
7
Operating Ranges
9
Preparation for Installation
10
Selecting the Installation Location
10
Connection Pipe Requirement
11
Refrigerant Piping Precautions
12
Installing the Outdoor Unit
13
Condensate Management of the Outdoor Unit
13
Installing the Refrigerant Piping
14
Flaring Process and Bending Pipes
14
Insulating the Refrigerant Piping and Connections
15
Refrigerant Piping at the Outdoor Unit
16
Piping Requirements
17
Refrigerant Piping between the Indoor and Outdoor Units
18
Vacuum and Refrigerant Leakage Detection
20
Wiring Precautions
21
Outdoor Wiring Connections
21
Stranded Wiring Connections
22
Electrical Connections
23
Power Supply Wiring
24
Cable Specifications and Grounding Requirements
24
Installation of Controllers
24
Post Installation Checklist
25
Refrigerant System Diagrams
26
Electrical Connections at the Outdoor Unit
28
Wiring Diagrams
30
Dimensional Diagrams
33
Troubleshooting
34
Error Codes
35
Maintenance
37
Parts Replacement
37
After-Sales Service
37
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Trane 22 Series and is the answer not in the manual?
Ask a question
Trane 22 Series Specifications
General
Brand
Trane
Model
22 Series
Category
Air Conditioner
Language
English
