INSTALLER’S GUIDE

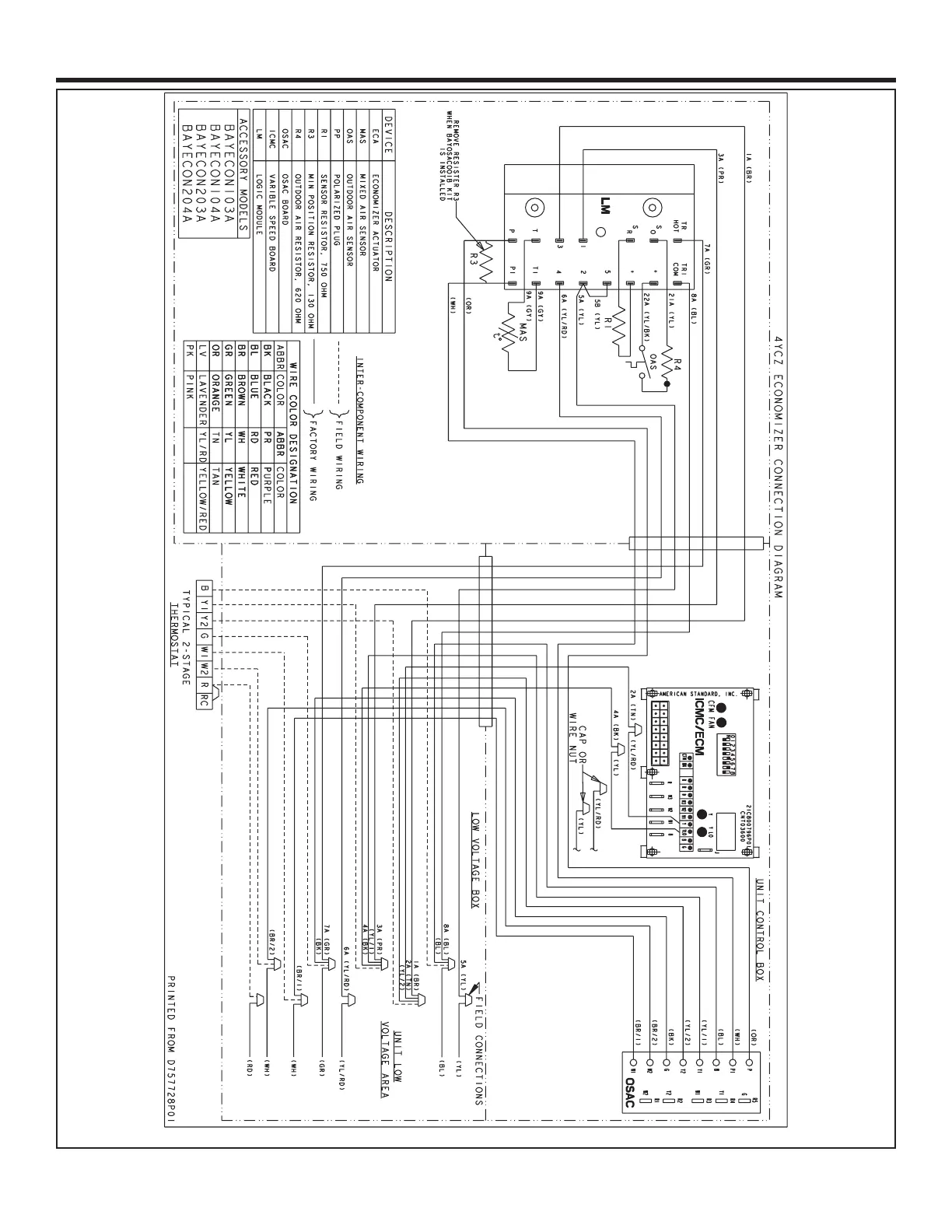

Figure 8. *WCZ & *DCZ Economizer Connection Diagram
A A A A
A A A
ACCESSORY MODELS
BAYECON103AA/AB/AC BAYECON104AA/AB/AC BAYECON203AA/AB/AC BAYECON204AA/AB/AC
IMPORTANT-Retain this wiring diagram; please return this document to service information pack upon completion of work.
Wiring Diagram for Economizer Using a Honeywell W7212 Logic
