22
CG-PRC002A-EN
Dimensional
Data

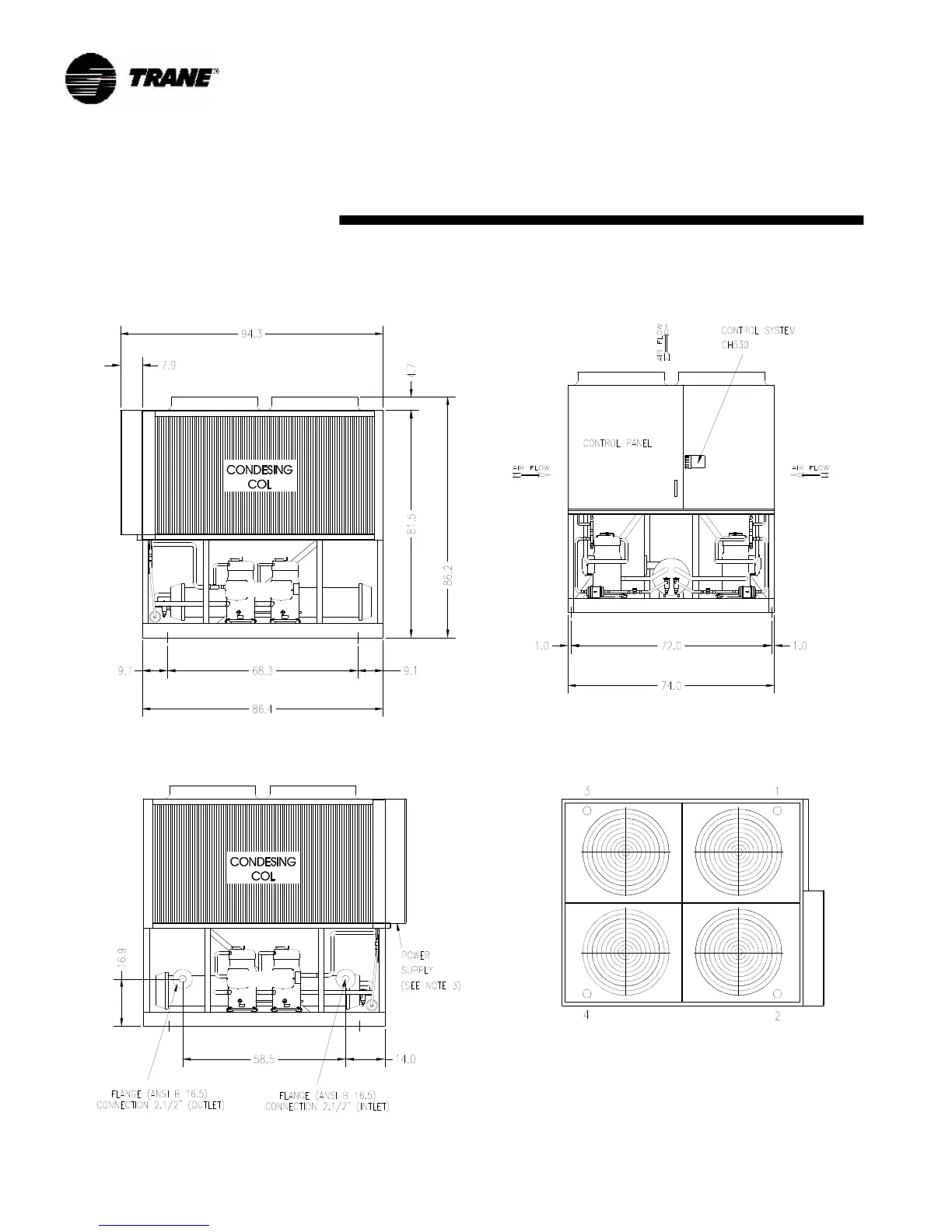

Fig. 11 - Unit Dimensions - CGAD 040C
CGAD 040C
NOTES:
1 - FIXING POINTS FOR VIBRATION INSULATORS (4 X.11,5-mm DIAM HOLES)
2 - VIBRATION INSULATORS ARE NOT SUPPLIED WITH THE EQUIPMENT.
3 - UNITS NOT SPECIFIED: mm
COMPRESSORS
COMPRESSORS
Fig. 12 - Top View of Fans
