Trane CVGF Product Manual

CTV-PRC001-GB
18

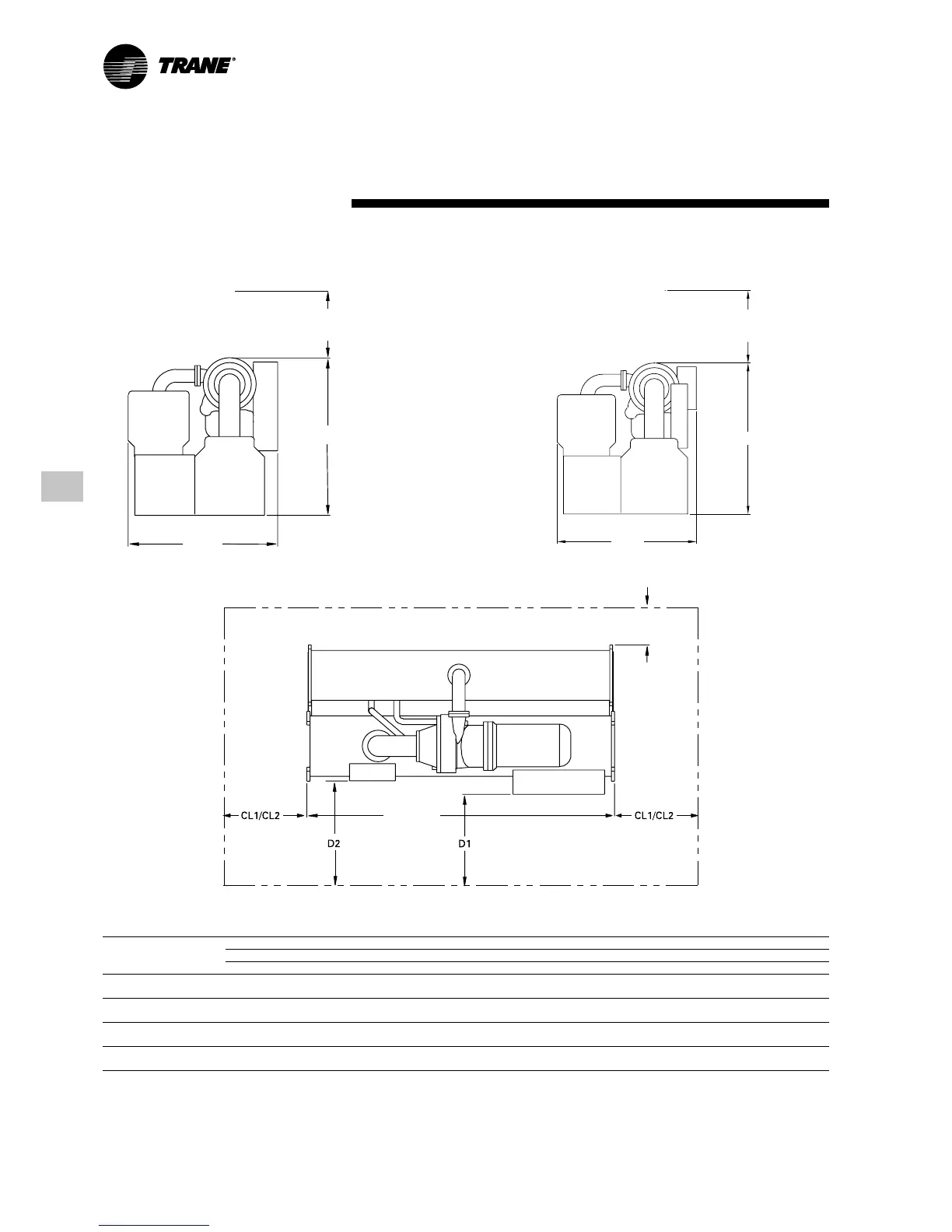

Figure PD-2 – Model CVGF Cooling Only Without Unit
Mounted Starter (for Remote Mounted Starter)
Figure PD-1 – Model CVGF Cooling Only
With Unit Mounted Starter
Physical
Dimensions
50 and 60 Hz SI
(English Units)
Dimensions – SI Units (English Units)
Clearance Unit Dimensions Unit Dimensions
Tube Pull With Unit Mounted Starters Without Unit Mounted Starters
Comp. Shell Size CL1 CL2 Length Height Width Width
400-500 500 4235 mm 1118 mm 4083 mm 2094 mm 1984 mm 1929 mm
(13’ 10
3
/4”) (3’ 8”) (13’ 4
3
/4”) (6’ 10
1
/
2
”) (6’ 6
1
/8”) (6’ 3
15
/16”)
500 700 4235 mm 1850 mm 4083 mm 2200 mm 2038 mm 1988 mm
(13’ 10
3
/4”) (3’ 11”) (13’ 4
3
/4”) (7’ 2
5
/8”) (6’ 8
1
/4”) (6’ 6
1
/4”)
650 700 4235 mm 1850 mm 4083 mm 2270 mm 2083 mm 2076 mm
(13’ 10
3
/4”) (3’ 11”) (13’ 4
3
/4”) (7’ 5
3
/8”) (6’ 10”) (6’ 9
3
/4”)
800-1000 1000 4235 mm 1219 mm 4083 mm 2521 mm 2305 mm 2257 mm
(13’ 10
3
/4”) (4’) (13’ 4
3
/4”) (8’3
1
/4”) (7’6
3
/4”) (7’ 4
7
/8”)
CL1 at either end of machine and is required for tube pull clearance.
CL2 is always at the opposite end of machine from CL1 and is for water box plus clearance.
– Recommended clearance (D1) for machine with unit mounted starter is 914 mm (36”)
– Recommended clearance (D2) for machine without unit mounted starter is 1219 mm (38”)
Unit length is not included for the waterbox.
See page 19 for waterbox dimension
HEIGHT
WIDTH
914 mm (36
”
)
RECOMMENDED
CLEARANCE
457 mm (18')
RECOMMENDED
CLEARANCE
LENGTH
914 mm (36
”
)
RECOMMENDED
CLEARANCE
HEIGHT
WIDTH
