Trane TTA Series User Manual

14 SS-APG008-EN
Refrigerant Piping Examples

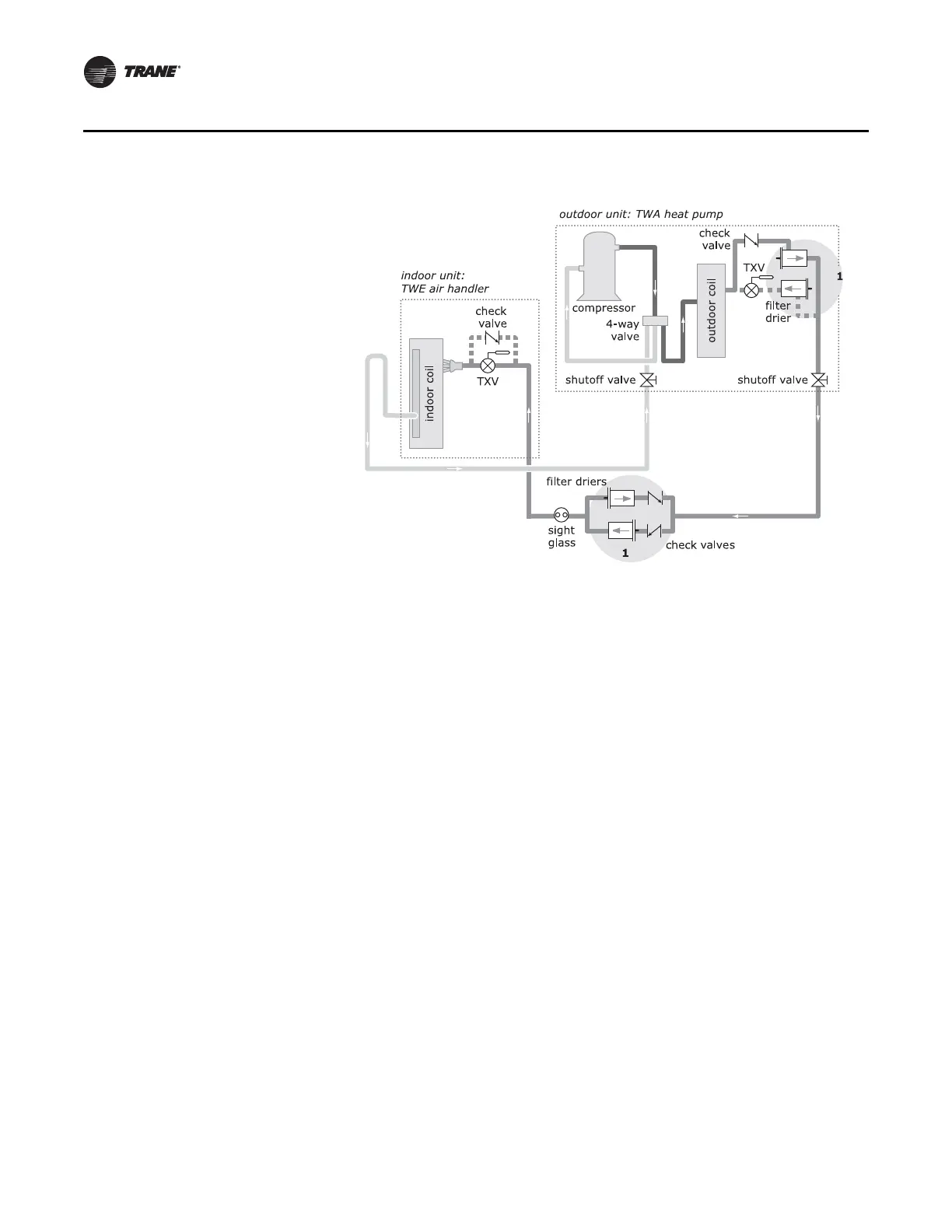

Figure 8. TWA heat pump and TWE air handler (typical arrangement shown in cooling mode)
1 For applications where the length of the liquid
line exceeds 80 ft (24 m) and the heat pump will
start in the cooling mode, remove the liquid-line
filter driers from the TWA heat pump and install
new filter driers and check valves at the TWE air
handler..

Trane TTA Series Specifications

General

Refrigerant	R-410A
Voltage	208/230V
Cooling Capacity	1.5 to 5 tons
Heating Capacity	1.5 to 5 tons
Sound Level	72 dB
