Unit Dimensions and Clearances

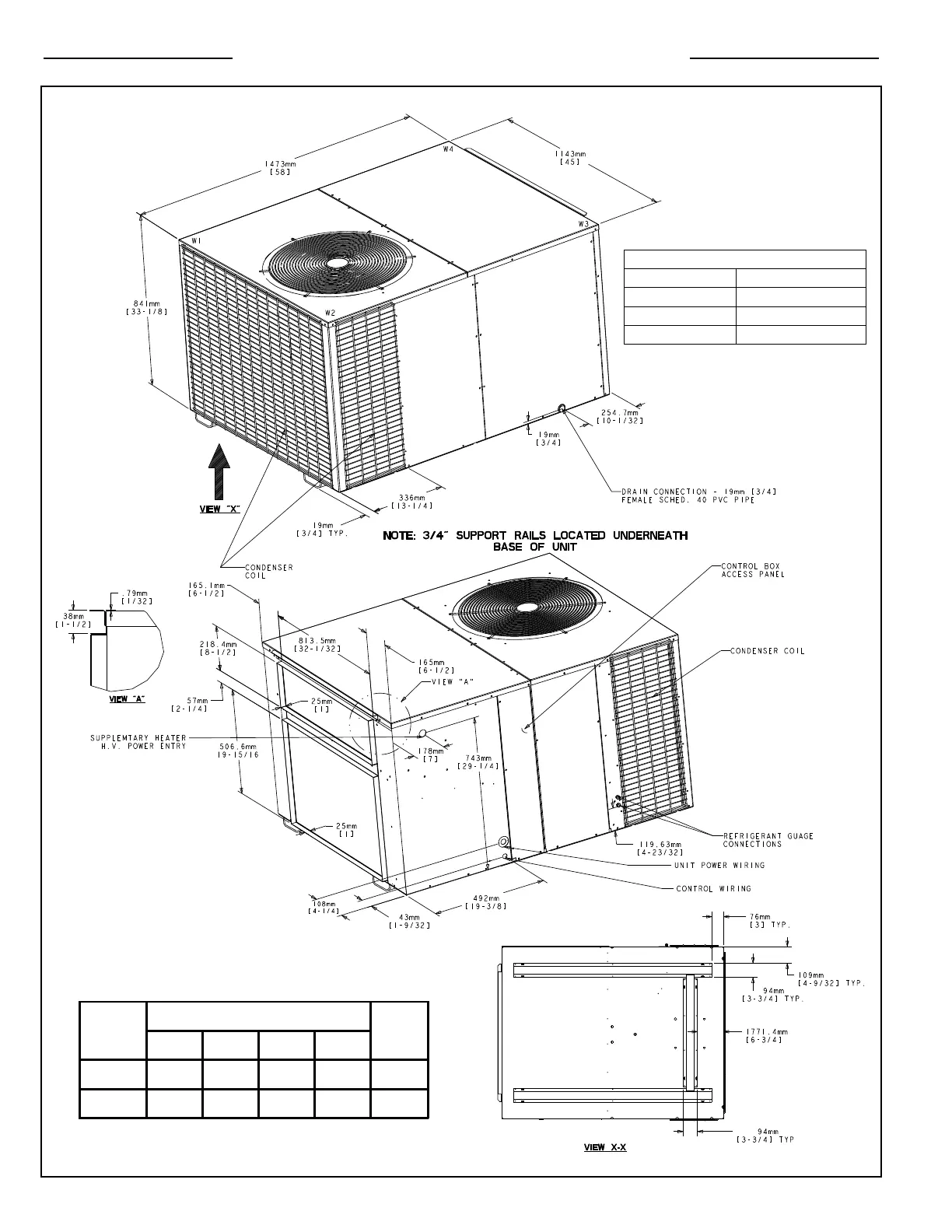

WCH048-060F Outline
1
INSTALLATION / SERVICE CLEARANCE
BACK 48.0"
LEFT SIDE 24.0"
RIGHT SIDE 36.0"
TOP 36.0"
MODEL
APPROX. CORNER WTS - LBS.
TOTAL
WEIGHT
LBS.
W1 W2 W3 W4
WCH048F 128 128 97 97 447
WCH060F 115 115 114 114 457
