Trane XL14i User Manual

10 22-1750-05
Dimensions

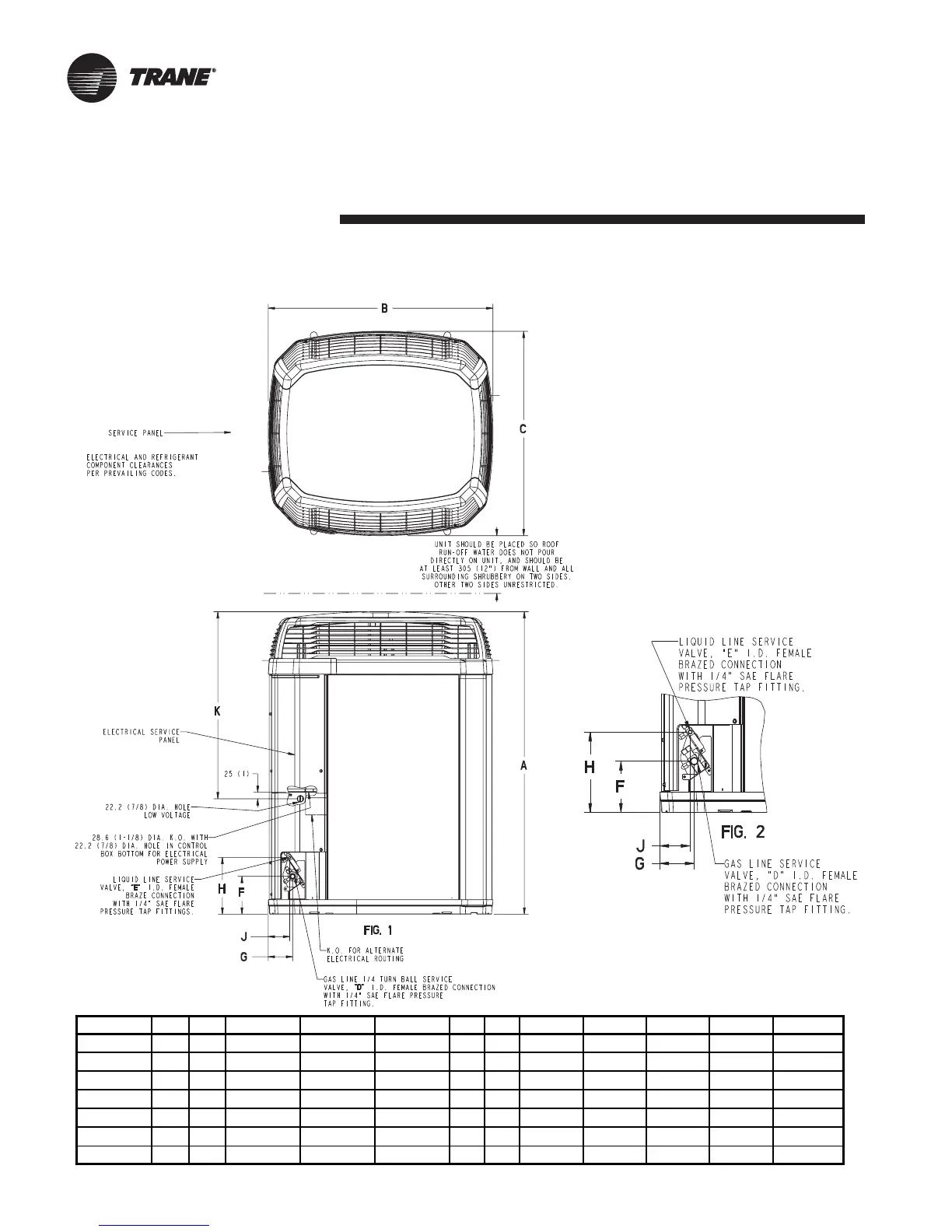

2TWX4 Outline Drawing
NOTE: ALL DIMENSIONS ARE IN MM (INCHES)
From Dwg. 21D152635 Rev. 11
MODELS BASE FIG. A B C D E F G H J K
2TWX4018B 3 2 1016 (40) 829 (32-5/8) 756 (29-3/4) 5/8 1/4 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 692 (27-1/4)
2TWX4024B 3 2 1118 (44) 829 (32-5/8) 756 (29-3/4) 3/4 5/16 143 (5-5/8) 92 (3-5/8) 210 (8-1/4) 79 (3-1/8) 692 (27-1/4)
2TWX4030B 4 1 1064 (41-7/8) 946 (37-1/4) 870 (34-1/4) 3/4 5/16 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 730 (28-3/4)
2TWX4036B 4 1 1165 (45-7/8) 946 (37-1/4) 870 (34-1/4) 7/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 730 (28-3/4)
2TWX4042B 4 1 1267 (49-7/8) 946 (37-1/4) 870 (34-1/4) 7/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 730 (28-3/4)
2TWX4048B 4 1 1267 (49-7/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 933 (36-3/4)
2TWX4060B 4 1 1267 (49-7/8) 946 (37-1/4) 870 (34-1/4) 1-1/8 3/8 152 (6) 98 (3-7/8) 219 (8-5/8) 86 (3-3/8) 933 (36-3/4)

Trane XL14i Specifications

General

HSPF	8.2
Refrigerant	R-410A
Stages	Single-stage
Voltage	208/230 V
Phase	1
Compressor	Climatuff®
Cooling Capacity	24, 000 - 60, 000 BTU/h
