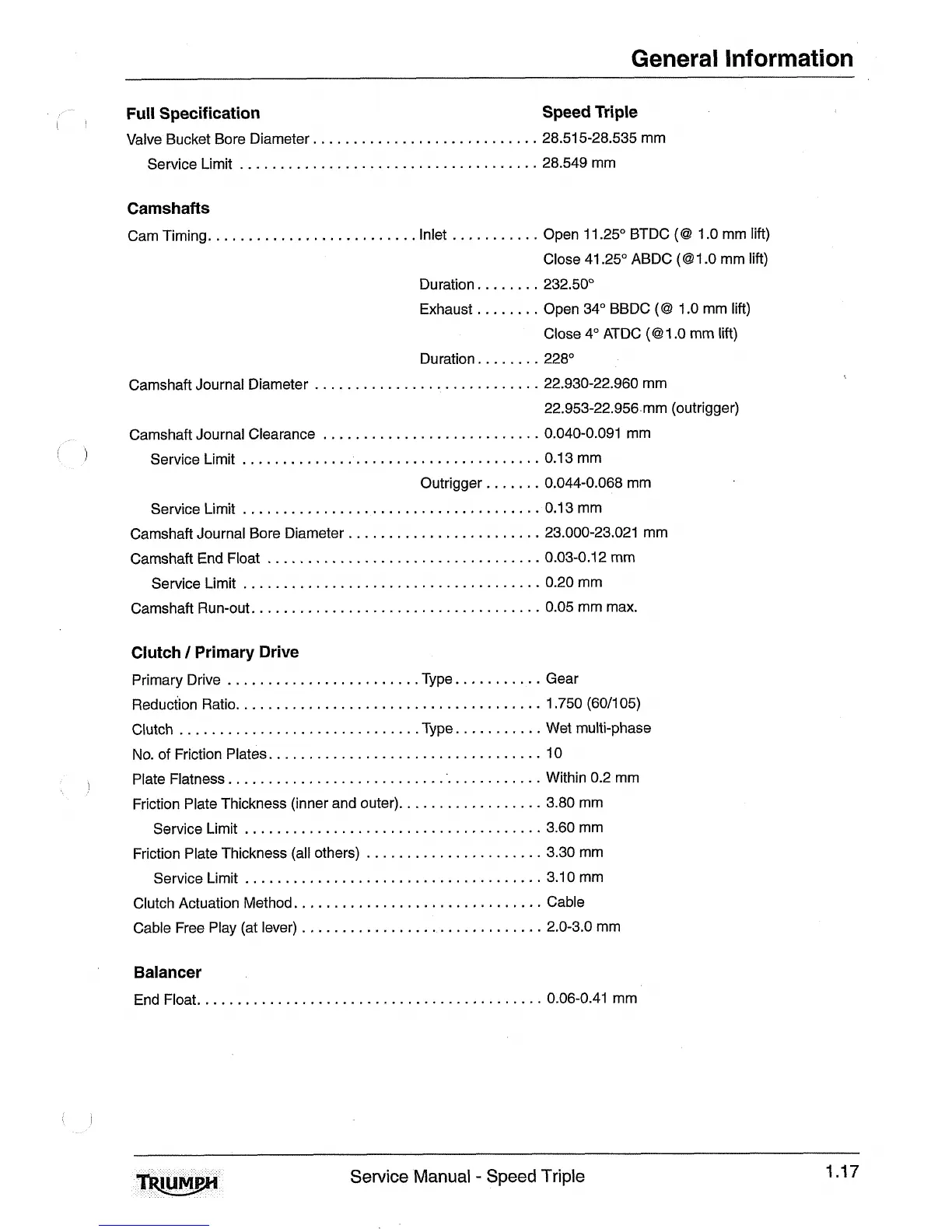

Triumph Speed Triple Service Manual

General Information
Full Specification Speed Triple
1'
...........................
Valve Bucket Bore Diameter.
28.51 5-28.535 mm
.....................................
Service Limit 28.549 mm
Camshafts
.........................
Cam Timing.
Inlet
........... Open 11 .25" BTDC (8 1.0 mm lift)
Close 41.25" ABDC (81 .0 mm lift)
Duration
........ 232.50"
Exhaust
........ Open 34" BBDC (@ 1.0 mm lift)
Close 4" ATDC
(@ 1.0 mm lift)
Duration
........ 228"
............................
Camshaft Journal Diameter 22.930-22.960 mm
22.953-22.956 mm (outrigger)
...........................
Camshaft Journal Clearance 0.040-0.091 mm
i
.....................................
Service Limit 0.1 3 mm
Outrigger
....... 0.044-0.068 mm
.....................................
Service Limit 0.1 3 mm
........................
Camshaft Journal Bore Diameter
23.000-23.021 mm
..................................
Camshaft End Float
0.03-0.1 2 mm
.....................................
Service Limit 0.20 mm
...................................
Camshaft Run-out. 0.05 mm max.
Clutch / Primary Drive
Primary Drive ........................ Type.. ......... Gear
.....................................
Reduction Ratio. 1.750 (6011 05)
..............................
Clutch
Type.
.......... Wet multi-phase
No, of Friction Plates.
.................................
10
.......................................
Plate Flatness. Within 0.2 mm
Friction Plate Thickness (inner and outer).
................. 3.80 mm
.....................................
Service Limit 3.60 mm
......................
Friction Plate Thickness (all others)
3.30 mm
.....................................
Service Limit 3.1 0 mm
..............................
Clutch Actuation Method. Cable
..............................
Cable Free Play (at lever)
2.0-3.0 mm
Balancer
..........................................
End Float. 0.06-0.41 rnm
Service Manual - Speed Triple

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
