Triumph Speed Triple Service Manual

Clutch
i I

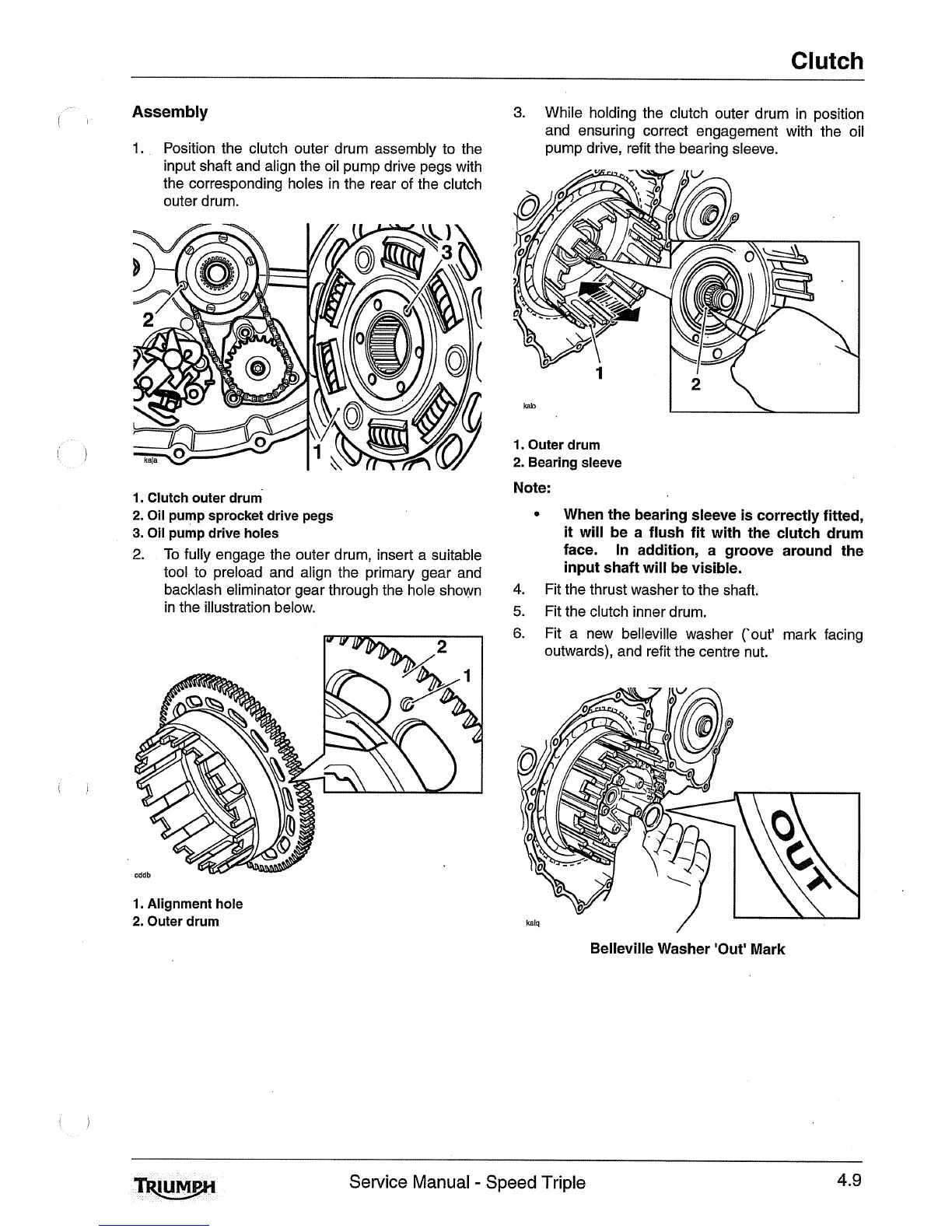

Assembly
1.
Position the clutch outer drum assembly to the
input shaft and align the oil pump drive pegs with
the corresponding holes in the rear of the clutch
outer drum.
1. Clutch outer druG
2. Oil pump sprocket drive pegs
3. Oil pump drive holes
2.
To fully engage the outer drum, insert a suitable
tool to preload and align the primary gear and
backlash eliminator gear through the hole shown
in the illustration below.
1. Alignment hole
2. Outer drum
3.
While holding the clutch outer drum in position
and ensuring correct engagement with the oil
pump drive, refit the bearing sleeve.
1. Outer drum
2. Bearing sleeve
Note:
*
When the bearing sleeve is correctly fitted,
it will be a flush fit with the clutch drum
face. In addition, a groove around the
input shaft will be visible.
4.
Fit the thrust washer to the shaft.
5.
Fit the clutch inner drum.
6.
Fit a new belleville washer ('out' mark facing
outwards), and refit the centre nut.
Belleville Washer 'Out' Mark
Sewice Manual - Speed Triple

Triumph Speed Triple Specifications

General

Transmission	6-speed
Engine Type	Liquid-cooled, 12-valve, DOHC, in-line 3-cylinder
Front Suspension	Öhlins 43mm NIX30 upside down forks, adjustable compression, rebound and preload
Rear Suspension	Öhlins monoshock, adjustable compression, rebound and preload
Front Brakes	twin 320mm floating discs
Rear Brakes	Brembo single piston caliper, 220mm disc
Fuel Tank Capacity	15.5 litres
