Triumph XRX User Manual

Maintenance and Adjustment
134
Spring Preload Adjustment –
Tiger XR
X only

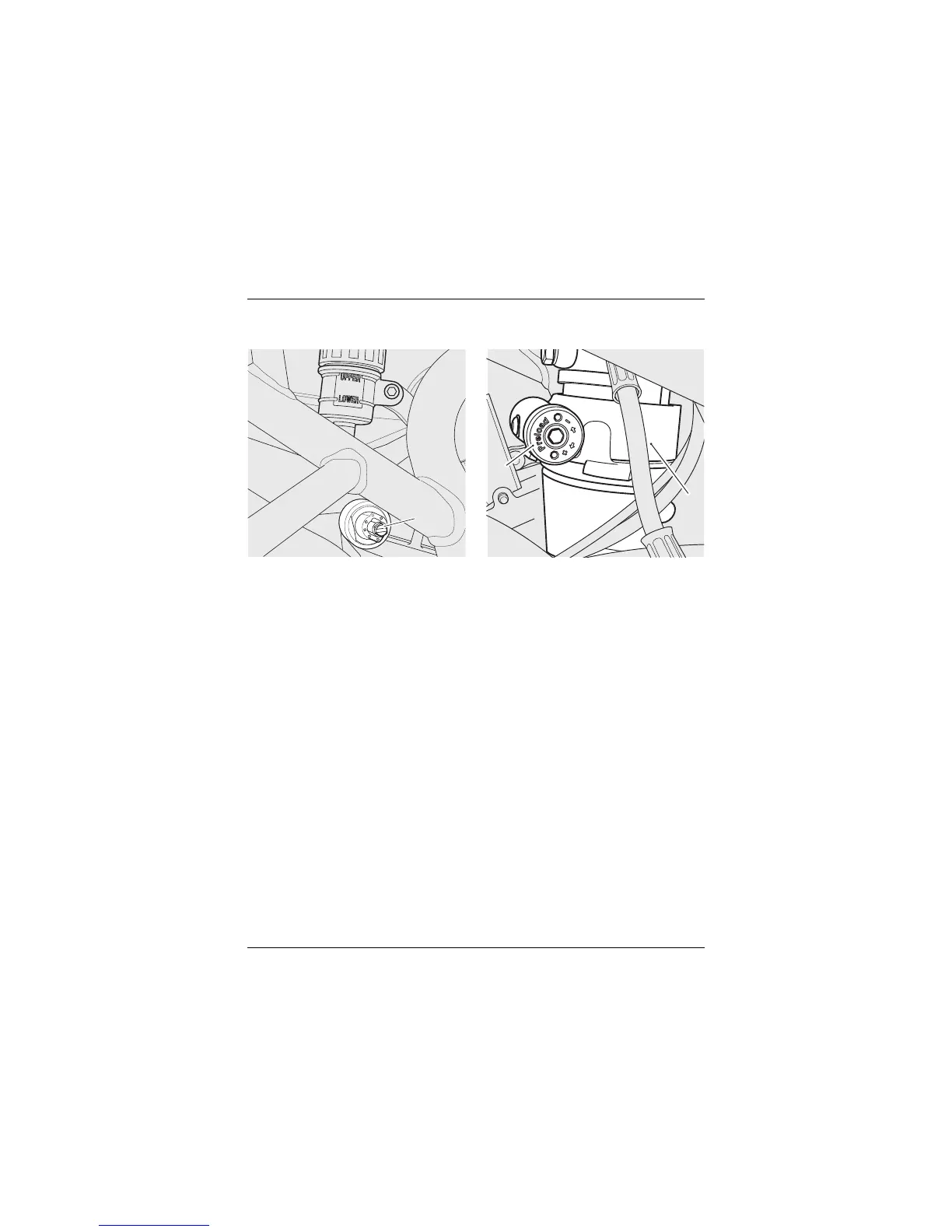

1. Spring preload adjuster, Tiger XRX
The spring preload adjuster is situated
on the right hand side of the motorcycle,
at the top of the RSU.
To adjust the spring preload setting
rotate the slotted adjuster clockwise to
increase, or anticlockwise to decrease.
Note:
• The setting is measured as the
number of adjuster turns
anticlockwise from the fully
clockwise (closed) position.
•The TigerXR
X model is delivered
from the factory with the spring
preload set at the Solo (normal)
riding settings, as shown in the
relevant suspension chart (see
page 133).
Spring Preload Adjustment –
Tiger XC
X only
1. Spring preload adjuster, Tiger XCX
2. RSU
The spring preload adjuster is situated
on the right hand side of the motorcycle,
at the top of the RSU.
To adjust the spring preload setting,
rotate the 5 mm hexagon adjuster
clockwise to increase, or anticlockwise to
decrease.
Note:
• The setting is measured as the
number of adjuster turns
anticlockwise from the fully
clockwise (closed) position.
•The TigerXC
X model is delivered
from the factory with the spring
preload set at the Solo (normal)
riding settings, as shown in the
relevant suspension chart (see
page 133).
1
cgjm
cinn
2
1
