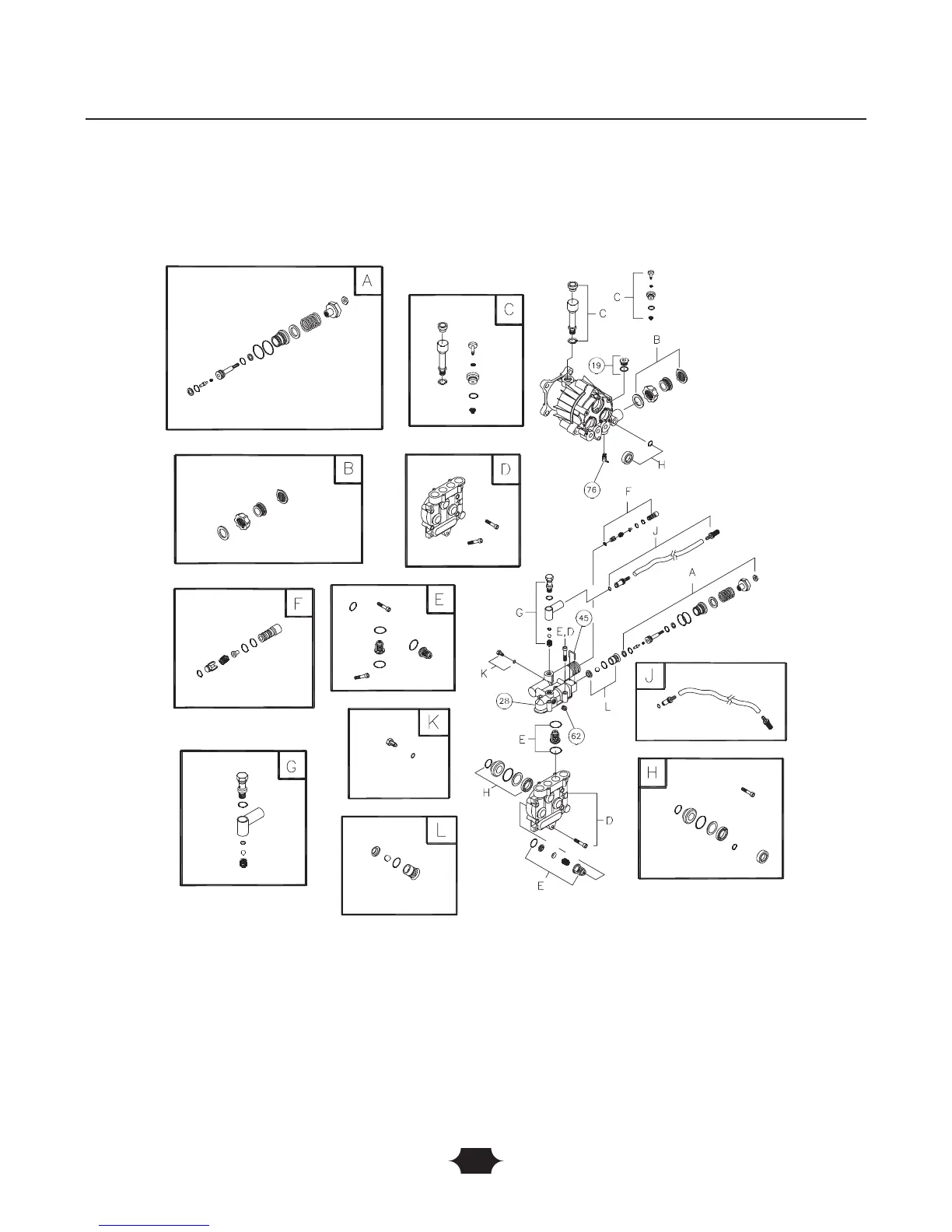

EXPLODED VIEW AND PARTS LIST — PUMP
Item Part # Description
19 190571GS CAP, Oil
28 190673GS MANIFOLD
45 190578GS PIN
62 190581GS CAP
76 194298GS THERMAL RELIEF
77 190585GS OIL BOTTLE (not shown)
A 190594GS KIT, UNLOADER
B 190670GS KIT,WATER INLET
C 190669GS KIT, BREATHER TUBE
D 193808GS KIT, HEAD BRASS
Item Part # Description
E 193806GS KIT, CHECK VALVES
F 190592GS KIT, INLET CHECK
G 190593GS KIT, CHEMICAL INJECTION
H 193807GS KIT, SEAL SET
J 189971GS KIT, CHEMICAL HOSE
K 193971GS KIT, PIPE FITTING
L 193972GS KIT, UNLOADER SEAT
NOTE: Item letters A - L are service kits and include all
parts shown within the box.
