8 se c t i O n 3 — as s e M b l y & se t -up
Bag
Place bag under the upper handle assembly and slip the 1.
front opening on the bag over the discharge chute, making
certain it is over the rim on the discharge chute. Follow
direction of the arrows in Fig. 3-5A.
Place the four straps on top of the bag over the upper 2.
handle, hooking them on the studs to secure in place. See
Fig. 3-5B.
Squeeze the clamp on the drawstring and pull the 3.
drawstring tight. Release the clamp. See Fig. 3-6.
Remove the three hex nuts and bell washers from the weld 3.
studs beside the opening on the right side of the chipper-
shredder vacuum. See Fig. 3-3B.
Place the chipper chute over the weld studs keeping the 4.
slotted side towards the bottom. Loosely secure with
the three hex nuts and bell washers that were removed
earlier. Do not fully tighten the hex nuts at this point in the
assembly. See Fig. 3-4A.
Align the support bracket with the holes in the right side 5.
of the upper and lower handles where the hex bolts were
just removed. See Fig. 3-4B. Push up slightly on the chipper
chute in order to better align the holes in the support
bracket with the holes in the handles.
Replace the hex bolts, saddle washers and flange nuts to 6.
affix the support bracket to the handle assemblies. See Fig.
3-4C.
Follow by tightening all hardware securely first on the 7.
chipper chute, then on the support bracket, and finally on
the handle. See Fig. 3-4D.

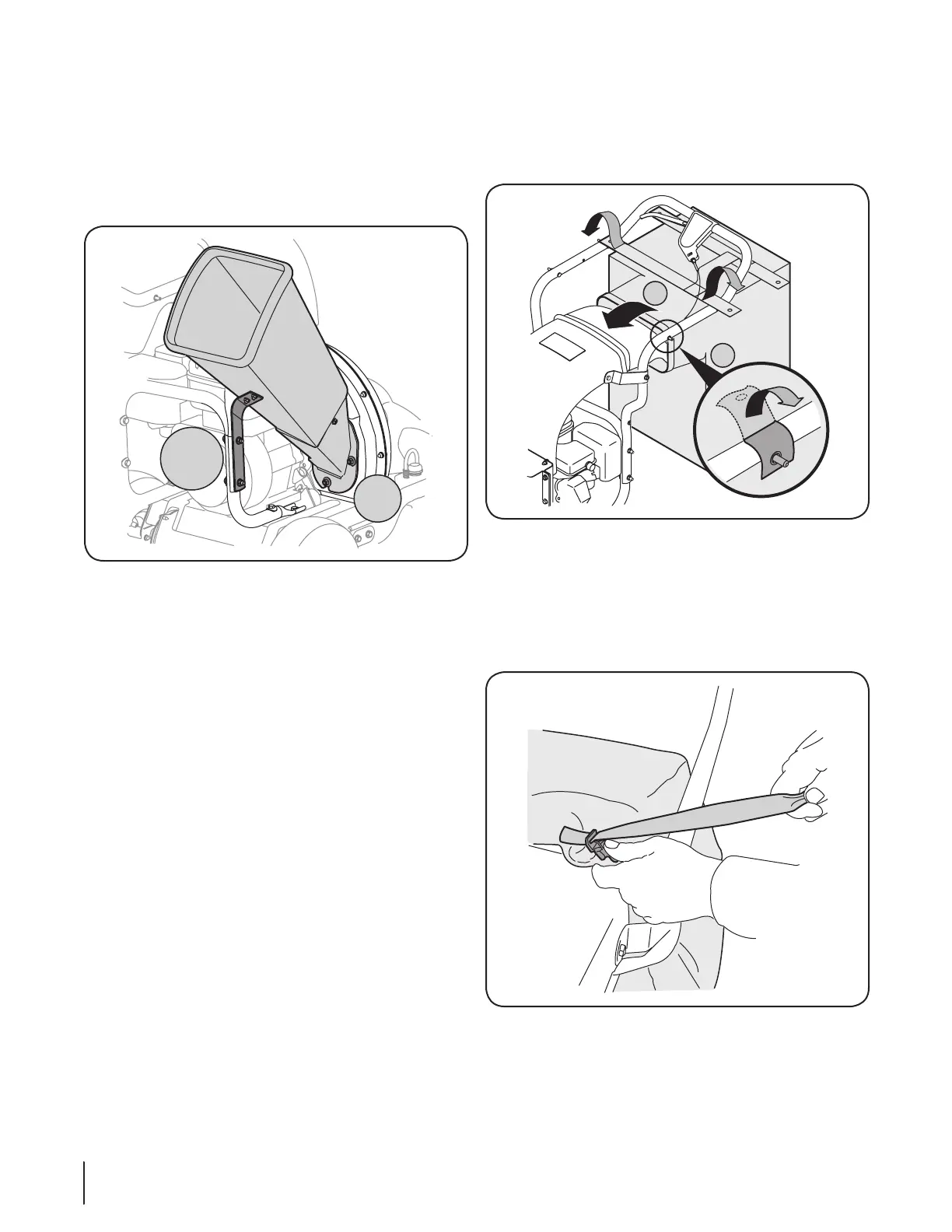

Figure 3-4
A & D
B, C, & D
Figure 3-5
Figure 3-6
B
A

Troy-Bilt CSV 204 Specifications

General

Engine Type	4-Cycle
Engine	Briggs & Stratton
Reduction Ratio	10:1
Chipping Capacity	2 inches
Shredding Capacity	1/2 inch
Wheel Size	10 inches
