E19
PARTS LIST

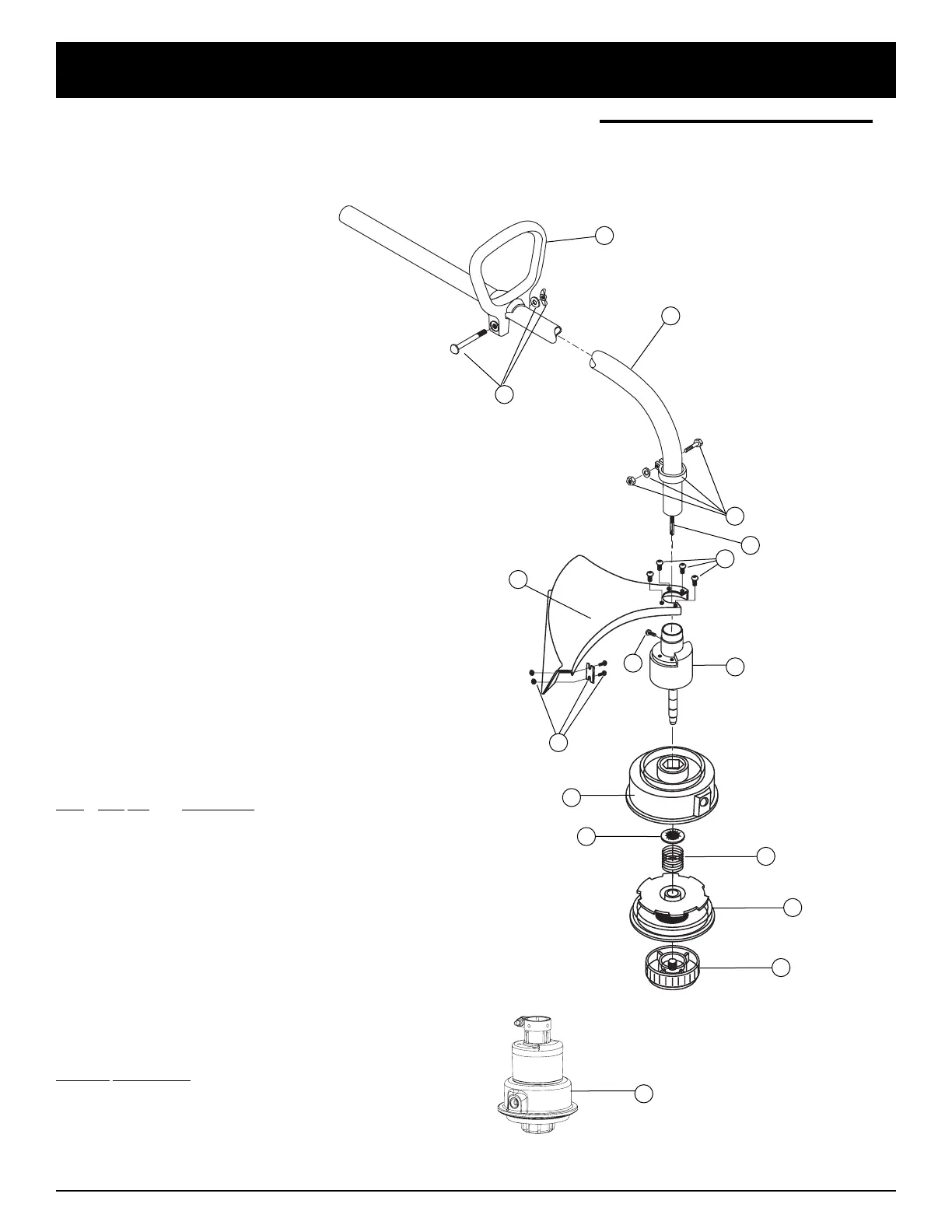

BOOM AND TRIMMER PARTS - MODEL TB50
120 VOLT ELECTRIC TRIMMER
1
2
3
4
5
7
6
9
10
11
12
15
Item Part No. Description
1 791-153064 D-Handle Assembly
2 791-153317 D-Handle Hardware
3 791-180560 Drive Shaft Housing Assembly
4 791-153597 Lower Clamp Assembly (includes item 7)
5 791-180561 Flexible Drive Shaft
6 791-181784 Bushing Housing Assembly w/shaft
7 791-145569 Anti-Rotation Screw
8 791-180531 Guard Mounting Screw Assembly
9 791-683274 Guard and Blade Assembly
10 791-682061 Blade Assembly
11 791-153619 Outer Spool Assembly (includes 12)
12 791-610660 Retainer
13 791-610317B Spring
14 753-1155 Inner Reel
15 791-153066B Bump Head Knob
16 791-182172 Complete Cutting Head Assembly
Optional
Accessories
* 791-160425 Inner Reel W/.060 Line
* Not Shown
8
13
14
16
