u-blox NORA-W10 Series User Manual

NORA-W10 series - System integration manual

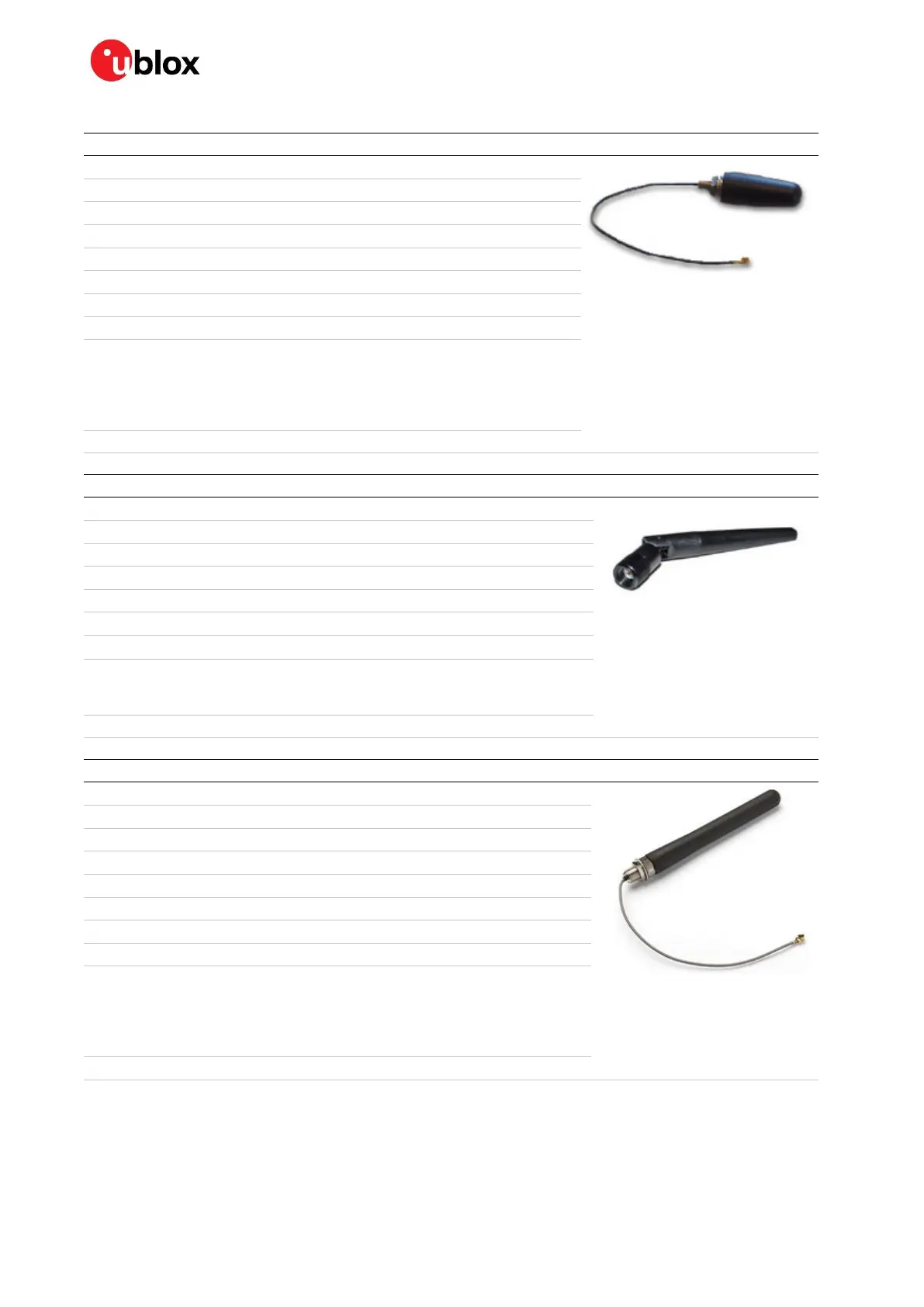

UBX-22005601 - R04 Pre-approved antennas list Page 49 of 56
C1-Public
Wi-Fi / Bluetooth external antenna, PN PRO-EX-296
Manufacturer
Abracon
Polarization
Vertical
Gain
+2.0 dBi
Impedance
50 Ω
Size
Ø 12.0 x 28.0 mm
Type
Monopole
Cable length
100 mm
Connector
U.FL. connector
Comment
This antenna requires to be mounted on a metal ground plane for
best performance. To be mounted with a U.FL connector.
For information on how to integrate the U.FL connector, see RF
connector design. This reference design must be followed to
comply with the NORA-W10 FCC/IC modular approvals.
Approval
FCC, IC, RED, UKCA, MIC, NCC, KCC, ANATEL, ACMA and ICASA
Wi-Fi / Bluetooth / Bluetooth LE external whip antenna, PN PRO-EX-333
Manufacturer
Abracon
Polarization
Vertical
Gain
+3.0 dBi
Impedance
50 Ω
Size
Ø 10 x 83 mm
Type
Monopole
Connector
Reverse Polarity SMA plug (inner thread and pin receptacle)
Comment
To be mounted with a U.FL to Reverse Polarity SMA adapter cable.
An SMA version antenna is also available but not recommended for
use (PN PRO-EX-332).
Approval
FCC, IC, RED, UKCA, MIC, NCC, KCC, ANATEL, ACMA and ICASA
Wi-Fi / Bluetooth external whip antenna, PN PRO-EX-327
Manufacturer
Abracon
Polarization
Vertical
Gain
+3.0 dBi
Impedance
50 Ω
Size
Ø 9.4 x 70.5 mm
Type
Monopole
Cable length
100 mm
Connector
U.FL. connector
Comment
To be mounted with a U.FL connector.
For information on how to integrate the U.FL connector, see RF
connector design. Ths reference design must be followed this
reference design to comply with the NORA-W10 FCC/IC modular
approvals.
Approval
FCC, IC, RED, UKCA, MIC, NCC, KCC, ANATEL, ACMA and ICASA
