Page #7 background image
7
No. Name No. Name
1 A Propeller (Clockwise) 11 Landing Gear
2 Clockwise Motor (Red and Blue Wire) 12 Rear Lamp Cover (Orange)
3 Drive Shaft 13 Lower Cover
4 Motor Gear 14 Front Lamp Cover (Green)
5 Motor Holder 15 WiFi Camera
6 Drive Gear 16 Battery Cover
7 B Propeller (Counterclockwise) 17 Receiving Board
8 Counterclockwise Motor (Black and White Wire) 18 Main Casing
9 Propeller Guard 19 Switch Board
10 Upper Cover 20 Drone Battery
1
2
3
3
4
4
5
5
6
3
4
5
6
6
7
8
9
1
2
3
4
5
6
7
8
9
9
9
10
11
12
12
13
14
14
15
16
17
18
19
20

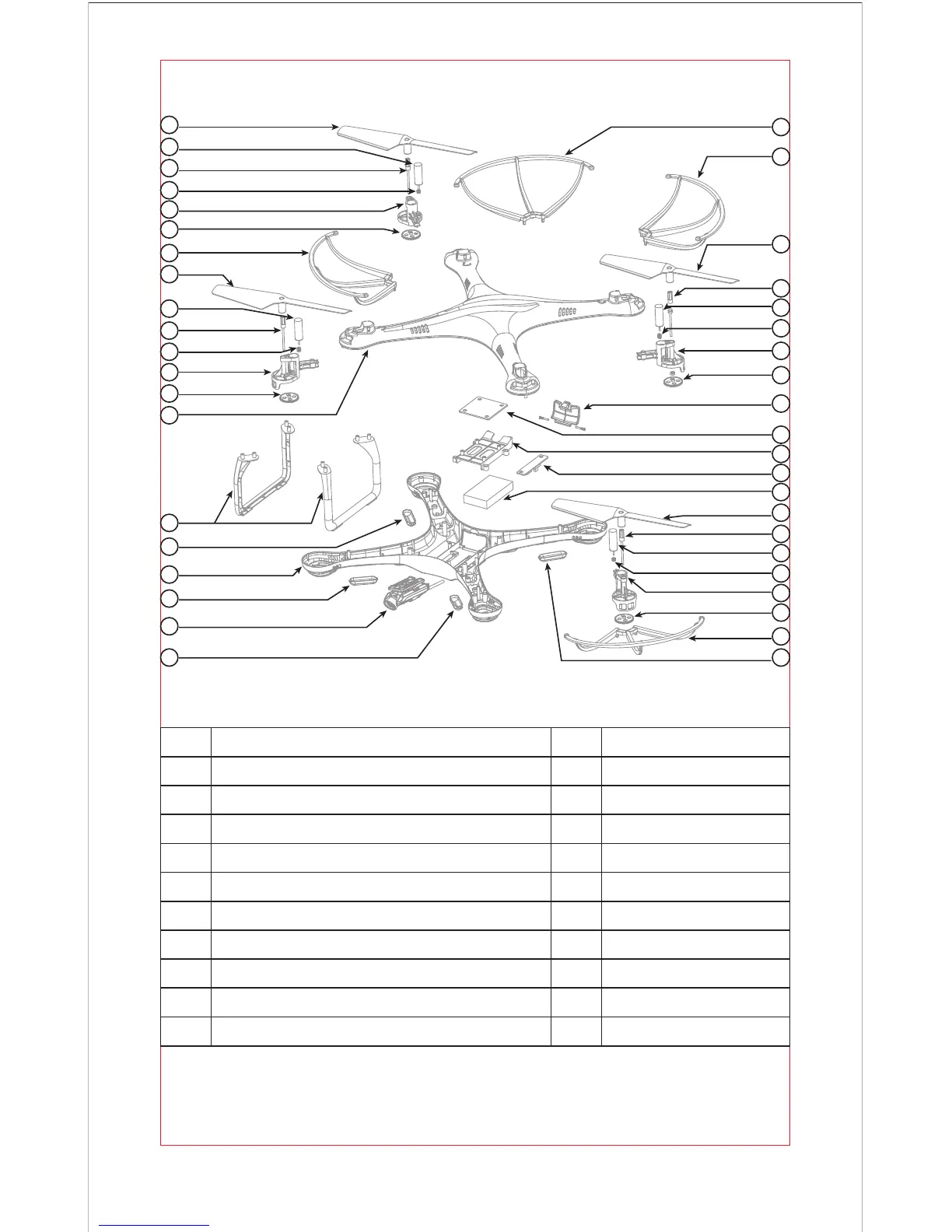

Exploded View

Questions and Answers:

Udirc U42W Specifications

General IconGeneral
BrandUdirc
ModelU42W
CategoryDrones
Camera720P HD
Frequency2.4GHz
Battery3.7V
FeaturesAltitude Hold, Headless Mode
FPV DistanceApproximately 30 meters
FunctionsOne key takeoff/landing
