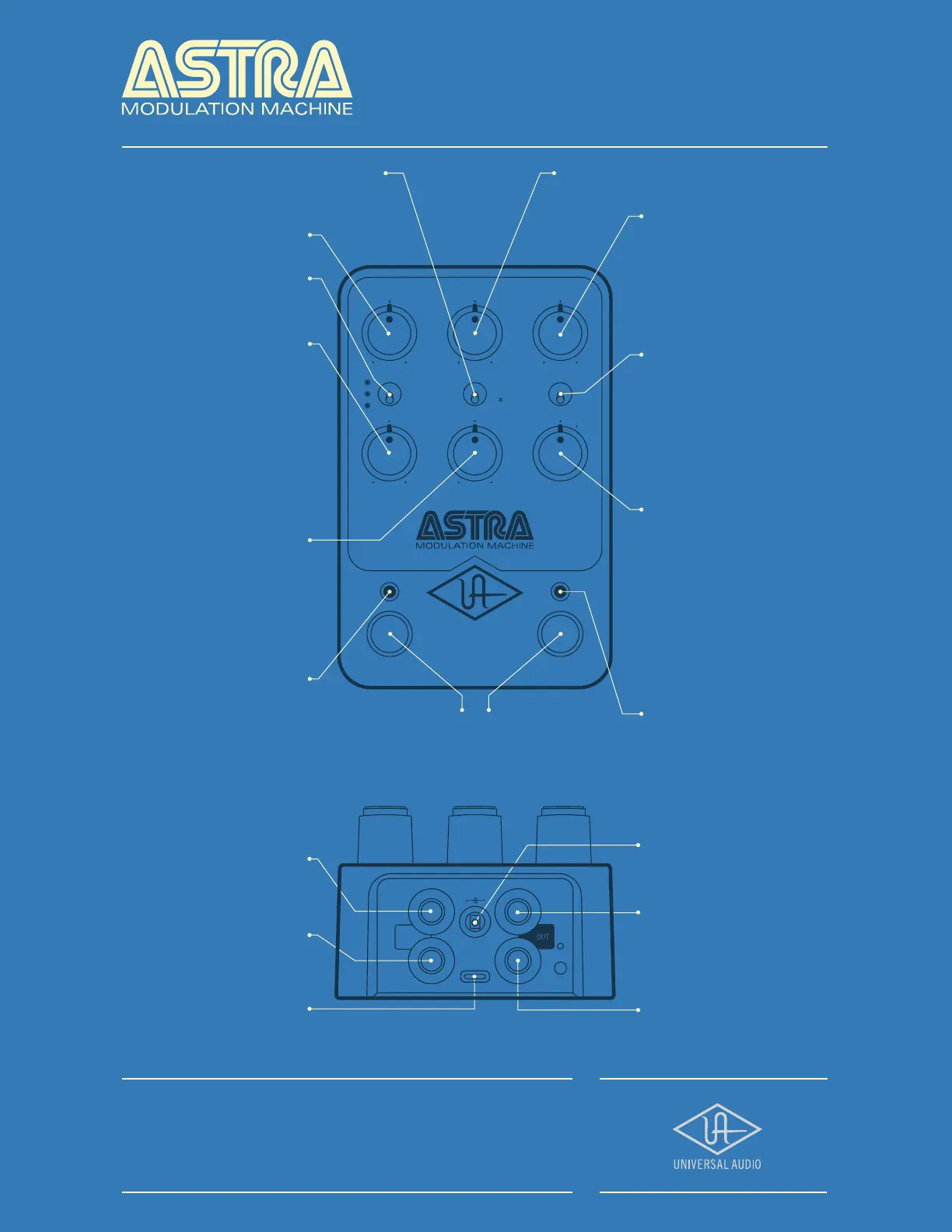

MONO OUT
Connect TS cable to amp or
other gear for mono operation
STEREO OUT
Connect TS cable for stereo only
(in addition to MONO output)
9VDC POWER IN
Connect 400 mA isolated power
supply (sold separately)
MONO IN
Connect TS cable from guitar or
other gear for mono operation
USB TYPE-C
Connect to computer
for firmware updates
STEREO IN
Connect TS cable for stereo only
(in addition to MONO input)
SPEED DEPTH INTENSITY
SHADE SHAPE MODE
CHORUS BRIGADE
FLANGER DBLR
TREM 65
A
B
ON
PRESET
STORE
STORE
Hold down to save current
settings as stored preset
PRESET LED
Lit when stored
settings are active
MODE
Switches the modulation
configuration
Chorus Brigade (stereo only):
Classic/Dual
Flanger Dblr: Normal/Invert
Trem 65: Dual mono/stereo
panned
Phaser X90: Dual mono/180º
stereo offset
Dharma Trem 61:
Dual mono/LFO stereo phase
EFFECT MODE
Selects variations within
the active effect
Chorus Brigade: Chorus/Vibrato
Flanger Dblr: Flanger/Doubler
Trem 65: Sine/Square
Phaser X90: Script/Block
Dharma Trem 61:
Classic/Vibe-y
INTENSITY
Adjusts the modulation character
Chorus Brigade: Intensity
(mode A only)
Flanger Dblr: Feedback
Trem 65: LFO Shape
Phaser X90: N/A
Dharma Trem 61: Crossover
DEPTH
Adjusts the modulation amount
PRESET SWITCH
Press to toggle effect
on/off with stored settings
ON LED
Lit when knob
settings are active
SHADE
Adjusts the modulation character
Chorus Brigade:
Output level - noon unity gain
Flanger Dblr:
Wet/dry mix - noon max flange
Trem 65:
Input drive - noon unity gain
Phaser X90:
Input drive - noon stock level
Dharma Trem 61:
Dynamic speed threshold
SHAPE
Adjusts the modulation character
Chorus Brigade: N/A
Flanger Dblr: Manual sweep
Trem 65: N/A
Phaser X90: N/A
Dharma Trem 61:
Dynamic speed amount
EFFECT TYPE
Push up or down to cycle
through modulation types
SPEED
Adjusts the modulation rate
ON SWITCH
Press to toggle effect
on/off with knob settings
You r a ur al a bs tr ac ti on s, f ro m su bt le t o bo ld , req ui re t oo ls o f li mi tl es s
expression. Astra arrives to reveal a universe of resplendent analog
warble. Built upon the pioneering bucket-brigade chorus, studio-standard
flanger/doubler, and definitive tube-driven tremolo, Astra has your colors.
Now go forth, and paint your masterpiece.
Get More Free Phaser X90 and Dharma Trem 61 effects, full
documentation, and help: uaudio.com/guitar/start
Power Supply Isolated 9VDC, center-negative, 400 mA minimum,
2.1x5.5 mm barrel connector (sold separately)
