Vertiv | SmartAisle2 | User Manual 86
Installation
• Always disconnect the power supply system, cabinet switchgear, and all output switches prior to installation,
else it may lead to serious injury and even amount to fatality. Any consequences resulting from improper
operation is the responsibility of the customer alone.
• All power lines, connectors, and grounding must comply with the local electrical codes and local protocols
supersede everything else.
• See the name plate for info related to the full load current. The cable should match the size of the local wir-
ing rules.
• Electrical installation and maintenance work must be carried out by authorized professionals.
2.10.1. Electrical installation Air conditioning
Air conditioning circuit to be connected in several ways, namely - the indoor power line, outdoor unit power
supply line, a condenser, a start and stop signal cable.
Indoor unit connected to the power supply line
The distribution cabinet cable drawn from the top into the line from the penetrated hole leaves a margin on the
cable retaining clip fixed inside the air conditioner board. Figure 2-94 shows an illustration of the top access hole.
The full rated current of air conditioning is 46.6 A and the cable model must be selected accordingly.

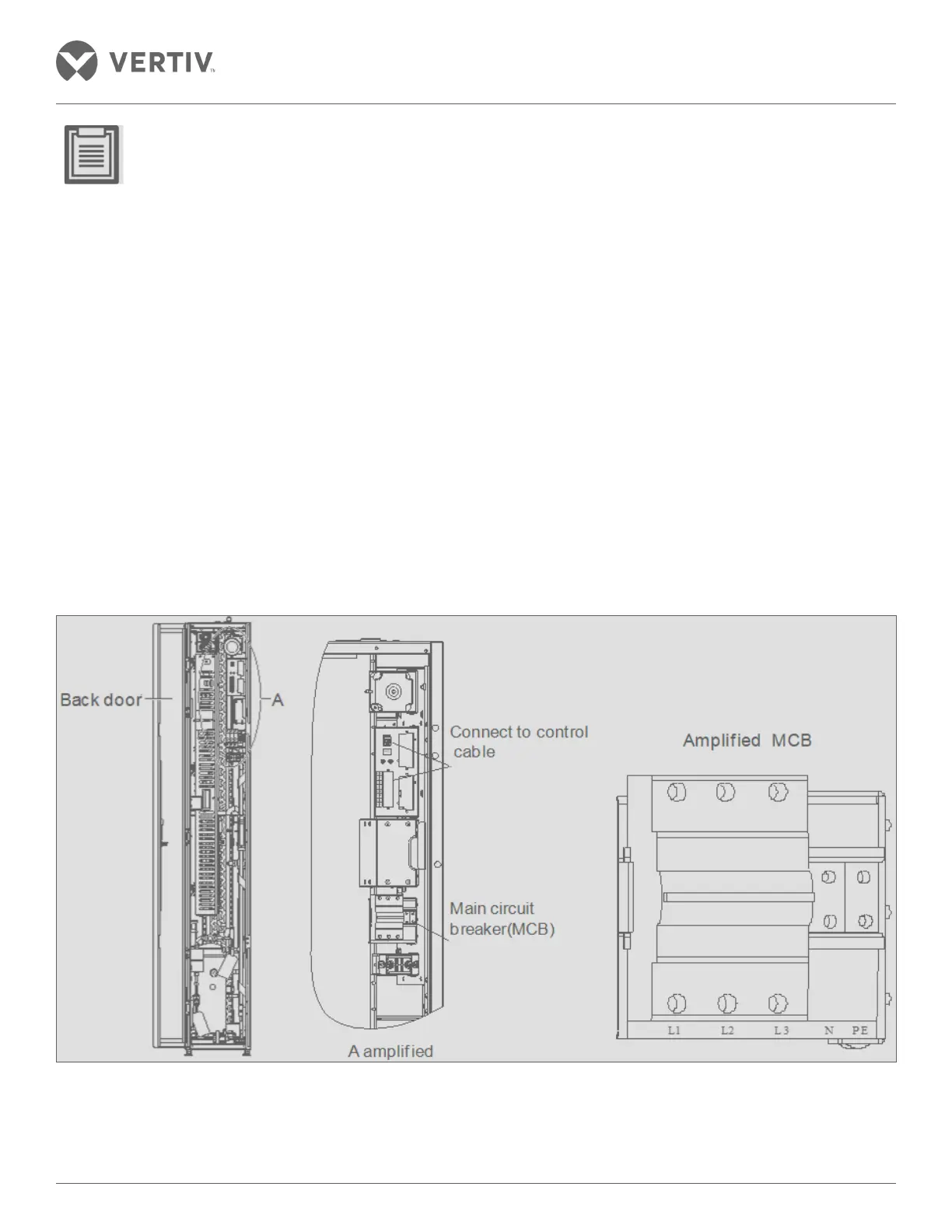

Figure 2-93 Electrical box and the user wiring diagram (opening the tailgate 120 °)
Amplified (Left side)
