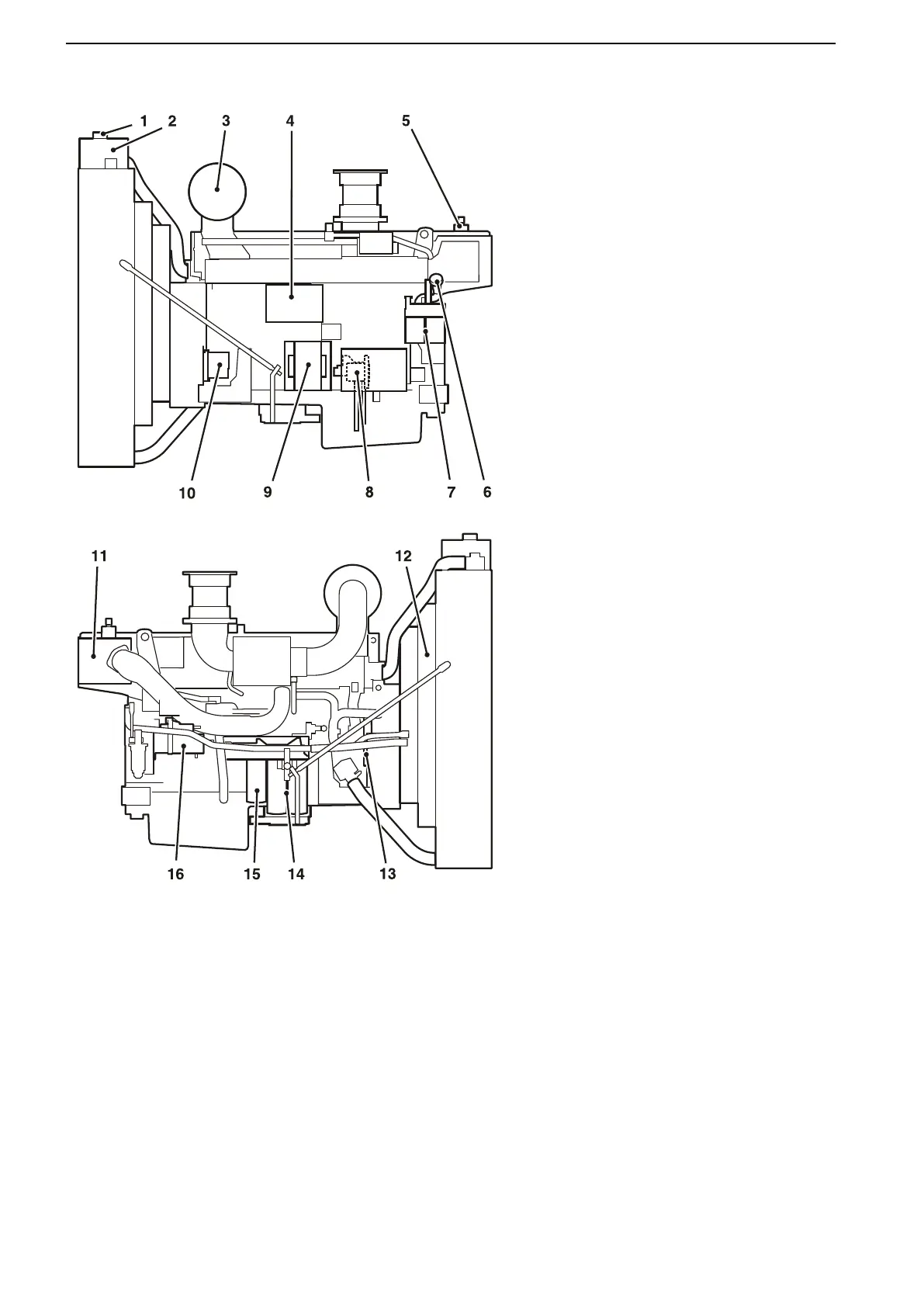

D16 MH RC
P0010385
1 Coolant filler cap
2 Expansion tank
3 Air Filter
4 Electrical connection box with SD
reset
5 Emergency Stop Switch
6 Oil filler cap, engine
7 Switchable fuel filters
8 Fuel Shut-off Valve
9 Engine Control Unit
10 Alternator
11 Charge air cooler
12 Radiator
13 Fresh water pump
14 Oil filter
15 By-pass filter for engine oil
16 Starter motor
Maintenance
42 47706582 09-2015 © AB VOLVO PENTA
