Volvo Penta D2-75 User Manual

17
18 20 19
16 21 17

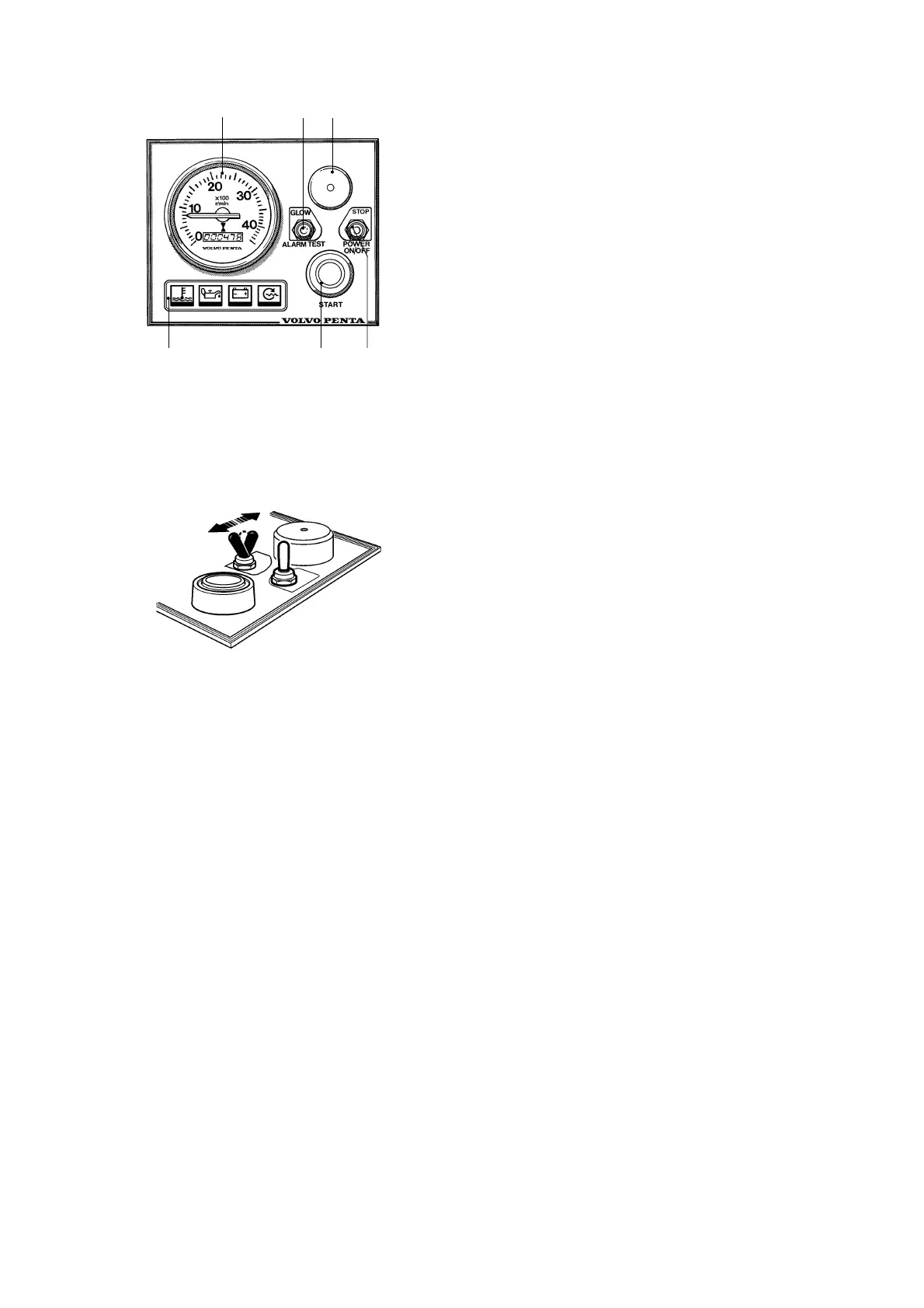

Instrument panel with electrical start/stop
function
The instrument panel does not have an ignition
switch. To stop unauthorized persons starting the
engine the wheelhouse should have a lock or a
lockable main switch should be used.
16. Tachometer and hour counter (accessory).
Displays engine speed. Multiply this value by 100
for revolutions per minute. The hour counter
displays engine operating time in hours and
tenths of an hour.
17. Siren for acoustic alarm.
18. Warning display. See pos. 22-25.
19. Rocker switch for connecting/disconnecting the
instrument panel and stop function.
20. Starter button. The starter motor is engaged when
this button is pressed.
21. Alarm test/acknowledgment and glow plug rocker
switch.
Glow plugs active: When the rocker switch is in
the up position the glow plugs are activated.
To test alarm: Move the rocker switch down. All
warning lights light and the acoustic alarm
sounds.
Alarm acknowledgment: If there is an alarm the
rocker switch is moved down and the alarm is
acknowledged. The acoustic alarm stops but the
relevant warning lamp continues to flash until the
malfunction is corrected.
Instrumentation
7742957 - Downloaded from www.volvopenta.com 22/09/2008 11:33:23

Volvo Penta D2-75 Specifications

General

Engine Type	Diesel
Power Output	75 hp (55 kW)
Number of Cylinders	4
Aspiration	Naturally Aspirated
Alternator	115A
Rated Speed	3000 rpm
Bore x Stroke	84 mm x 100 mm (3.31 in x 3.94 in)
Cooling System	Heat exchanger
Displacement	2.2 liters
