5
A. FLAG ANGLES (AS REQUIRED):
A1. Fully Adjustable (F.A.) Flag Angles
B. JAMB BRACKETS (AS REQUIRED):
B1. Fully Adjustable (F.A.) Jamb Brackets
C. TRACK ROLLERS:
C1. Short Stem Track Rollers
C2. Long Stem Track Rollers
D. GRADUATED END HINGES (AS REQUIRED):
D1. Single Graduated End Hinges (S.E.H.), Industry Standard
D2. Single Graduated Center Hinges (S.E.H.), Narrow Hinges
D3. Double Graduated End Hinges (D.E.H.), Industry Standard
E. STACKED SECTIONS:
E1. Top Section
E2. Intermediate(s) Section
E3. Lock Section
E4. Bottom Section
F. TOP FIXTURES (AS REQUIRED):
F1. Top Fixture Assemblies
G. STRUT(S) (AS REQUIRED):
G1. Strut (U - shaped)
H. DRAWBAR OPERATOR BRACKET (FOR TROLLEY OPERATED DOORS):
H1. Top Halve Drawbar Operator Bracket
H2. Bottom Halve Drawbar Operator Bracket
H3. Drawbar Operator Bracket (Supplied By Others)
I. TRACKS (AS REQUIRED):
I1. Left Hand and Right Hand Horizontal Track Assemblies
I2. Left Hand and Right Hand Vertical Tracks
I3. Left Hand and Right Hand Riveted Vertical Track Assemblies
I4. Left Hand and Right Hand Angle Mount Vertical Track Assemblies
J. EXTENSION SPRING ASSEMBLY (AS REQUIRED):
J1. Extension Springs
J2. Spring Restraint Cables
J3. Front Cable Lift Sheaves
J4. Rear Cable Lift Sheaves
J5. 3 Hole Clips (As Required)
J6. Small S-Hooks (As Required)
J7. Sheave Forks (As Required)
J8. 5/16” - 18 x 3-3/4” Eye Bolts (As Required)
J9. Counterbalance Lift Cables
J10. Hook Plates (As Required)
J11. Large S-Hooks (As Required)
K. REAR BACK HANGS:
K1. Left Hand And Right Hand Rear Back Hang Assemblies
L. BOTTOM CORNER BRACKETS (AS REQUIRED):
L1. Left Hand And Right Hand Bottom Corner Brackets
M. BOTTOM WEATHER SEAL:
M1. Bottom Weather Seal (Door Width)
E4.
E1.
E2.
E3.
I1.
I1.
K1.
K1.
J3.
J5.
NOTE: The illustrations shown on this page are general
representations of the door parts. Each specific door
models may have unique variations.
J5.
J5.
J8.
J4.
J7.
J1.
J9.
J2.
J6.
J5.
J9.
J4.
J7.
J1.
J2.
J5.
J8.
J6.
A1.
I2.
I4.
I3.
A1.
I2.
I4.
I3.
J10.
J10.
J3.
J5.
D1.
C1.
C2.
C1.
F1.
D3.
D2.
F1.
C1.
G1.
H2.
H1.
H3.
L1.
L1.
M1.
B1.
B1.
J11.
J11.

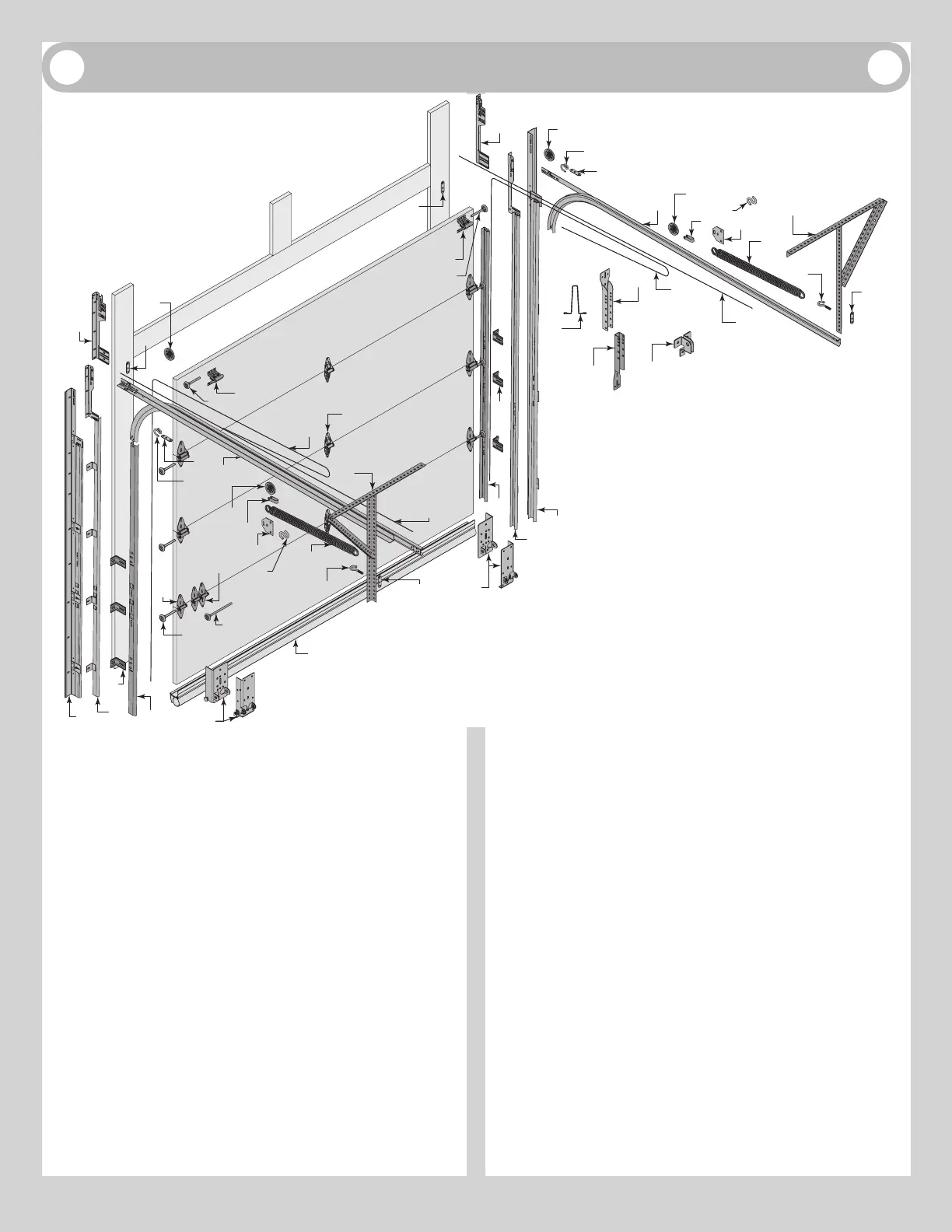

BREAKDOWN OF PARTS
