CLUTCH
L3301, L3901, L4701, WSM
2-M1
1. FEATURE
[1] TRAVELING CLUTCH
(1) Manual Transmission Model
Single Stage Clutch (L3301, L4701)
Manual Transmission Model (L3301, L4701) are
equipped with the single stage clutch.
The clutch is located between the engine and the
transmission and is operated by stepping on the clutch
pedal.
When the clutch pedal is depressed, the clutch is
disengaged. And when the clutch pedal is released, the
clutch is engaged and power from the engine is
transmitted to the transmission.
9Y1211012CLM0001US0
Dual Stage Clutch (L3901)
Manual Transmission Model (L3901) is equipped
with dual stage clutch.
The clutch is located between the engine and the
transmission and is operated by stepping on the clutch
pedal.
When the clutch pedal is depressed, the clutch is
disengaged. And when the clutch pedal is released, the
clutch is engaged and power from the engine is
transmitted to the transmission.
Tractors equipped with dual stage clutch have a live
PTO function which enables stoppage of the power
transmission to the traveling system while the PTO is in
rotation.
9Y1211012CLM0002US0

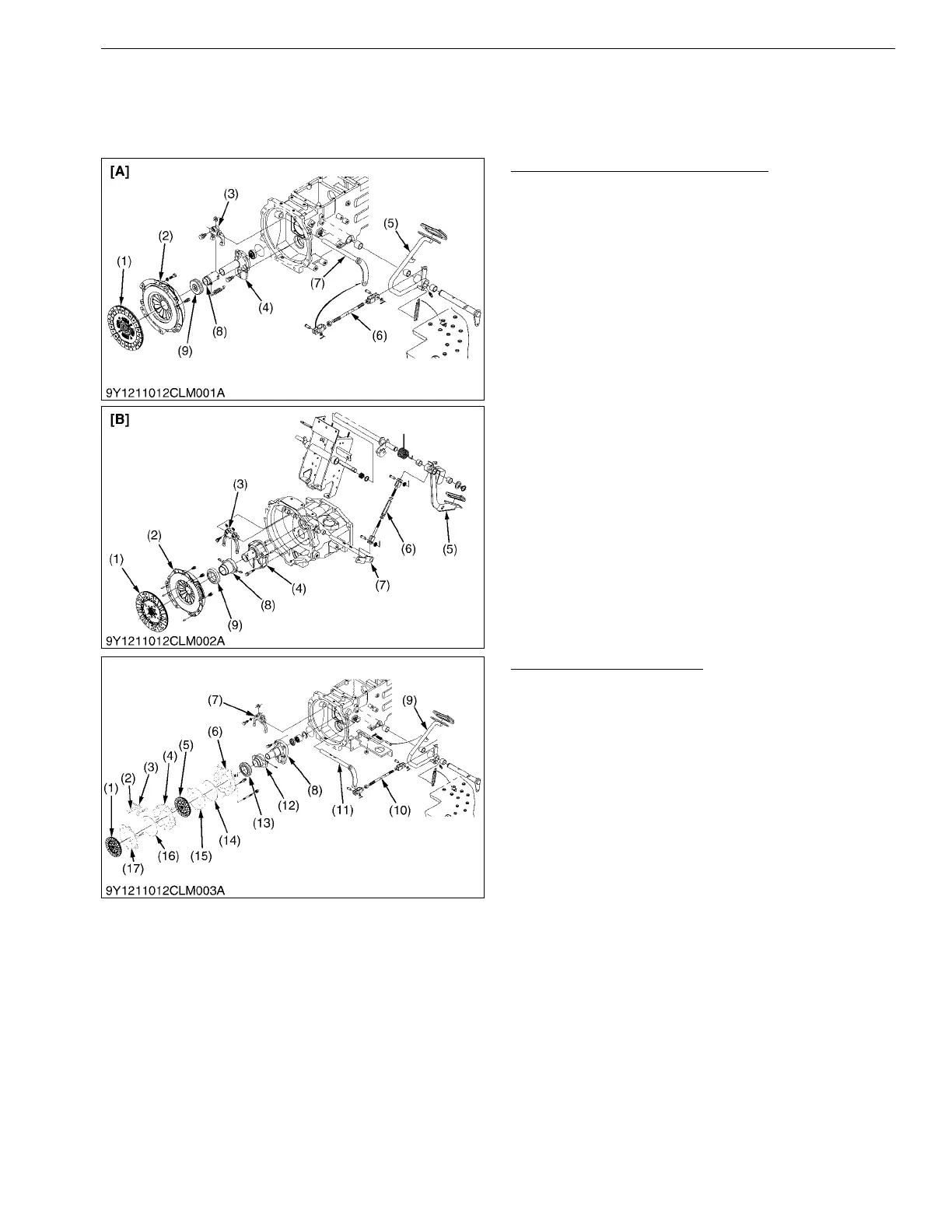

(1) Clutch Disc
(2) Pressure Plate Assembly
(3) Release Fork
(4) Shaft Case
(5) Clutch Pedal
(6) Clutch Rod
(7) Clutch Lever
(8) Release Hub
(9) Release Bearing
[A] L3301
[B] L4701
(1) Clutch Disc 1 (Traveling)
(2) Release Rod
(3) Release Lever
(4) Clutch Cover 1
(5) Clutch Disc 2 (PTO)
(6) Clutch Cover 2
(7) Release Fork
(8) Shaft Case
(9) Clutch Pedal
(10) Clutch Rod
(11) Clutch Lever
(12) Release Hub
(13) Release Bearing
(14) Diaphragm Spring
(15) Pressure Plate 1
(16) Diaphragm Spring
(17) Pressure Plate 2
