FRONT AXLE
L3301, L3901, L4701, WSM
6-S9
5. DISASSEMBLING AND ASSEMBLING
[1] L3301/L3901

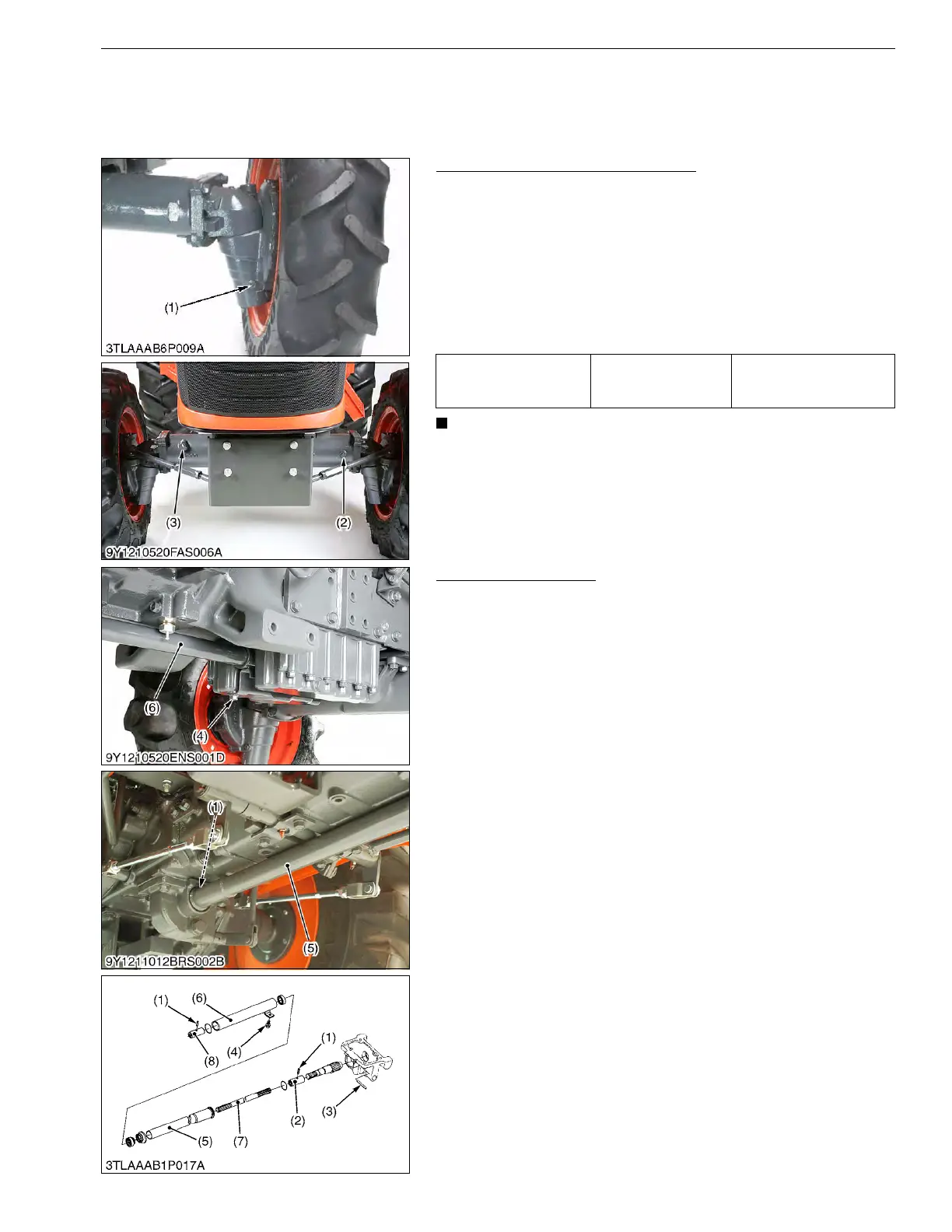

(1) Separating Front Axle from Front Axle Frame
Draining Front Axle Case Oil [4WD]
1. Place the oil pans underneath the front axle case.
2. Remove the drain plug (1) both sides and filling port plug (3) to
drain the oil.
3. After draining, reinstall the drain plugs (1) and filling port plug
(3).
(When refilling)
• Remove the filling port plug (3) and check plug (2).
• Fill with the new oil up to the check plug port.
• After filling, reinstall the check plug (2) and filling port plug (3).
IMPORTANT
• Use KUBOTA SUPER UDT-2 fluid or SAE 80, 90 gear oil.
Refer to "LUBRICANTS, FUEL AND COOLANT" on page
G-10.
9Y1211012FAS0009US0
Propeller Shaft [4WD]
1. Remove the screw (4) then tap out the spring pin (3).
2. Slide the propeller shaft cover 1 (5) to the front and the cover 2
(6) to the rear.
3. Tap out the spring pins (1) and then slide the coupling (2) to the
front and coupling (8) to the rear.
(When reassembling)
• Apply greasing to the splines of the propeller shaft (7) and
pinion shaft.
9Y1211012FAS0010US0
Front axle case oil Capacity
4.5 L
4.8 U.S.qts
4.0 Imp.qts
(1) Drain Plug
(2) Check Plug
(3) Filling Port Plug
(1) Spring Pin
(2) Coupling
(3) Spring Pin
(4) Screw
(5) Propeller Shaft Cover 1
(6) Propeller Shaft Cover 2
(7) Propeller Shaft
(8) Coupling
