TRANSMISSION
M6060, M7060, WSM
2-S43

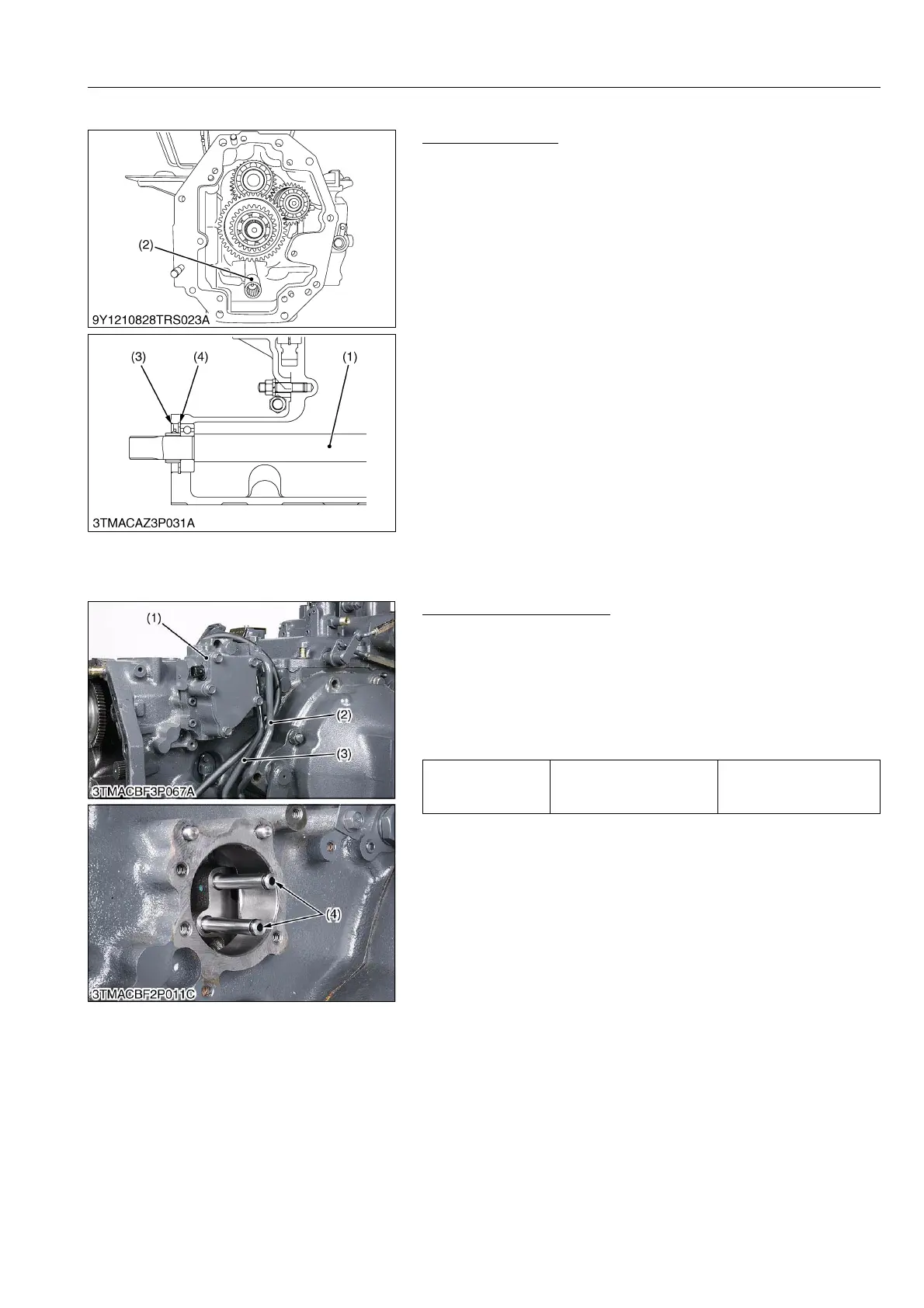

(6) Removing DT Propeller Shaft
DT Propeller Shaft
1. Remove the coupling (2).
2. Remove the oil seal (3) and internal circlip (4).
3. Tap out the DT propeller shaft (1) to the forward.
(When reassembling)
• Replace the oil seal (3) with new one.
9Y1210828TRS0066US0
[10] TRANSMISSION CASE
(1) Removing Solenoid Valve Assembly
Solenoid Valve Assembly
1. Remove the hydraulic pipe (2) and (3).
2. Remove the solenoid valve assembly (1).
3. Remove the hydraulic pipes (4).
(When reassembling)
• Apply transmission fluid to the O-rings.
• Apply liquid gasket (Three Bond 1206C or equivalent) to the
joint face.
9Y1210828TRS0067US0
(1) DT Propeller Shaft
(2) Coupling
(3) Oil Seal
(4) Internal Circlip
Tightening torque
Joint screw for hydraulic
pipe
29.4 to 34.3 N·m
3.0 to 3.5 kgf·m
21.7 to 25.3 lbf·ft
(1) Solenoid Valve Assembly
(2) Hydraulic Pipe (2WD)
(3) Hydraulic Pipe (4WD)
(4) Hydraulic Pipe
To Next Page
