8-S19
ME8200, ME9000, WSM
HYDRAULIC SYSTEM
Hydraulic Flow Test (Continued)
Condition
• Engine speed : Approx. 2600 min
-1
(rpm)
• Rated speed : 17.7 MPa
180 kgf/cm
2
2560 psi
• Oil temperature : 45 to 55 °C
113 to 131 °F
W1019612

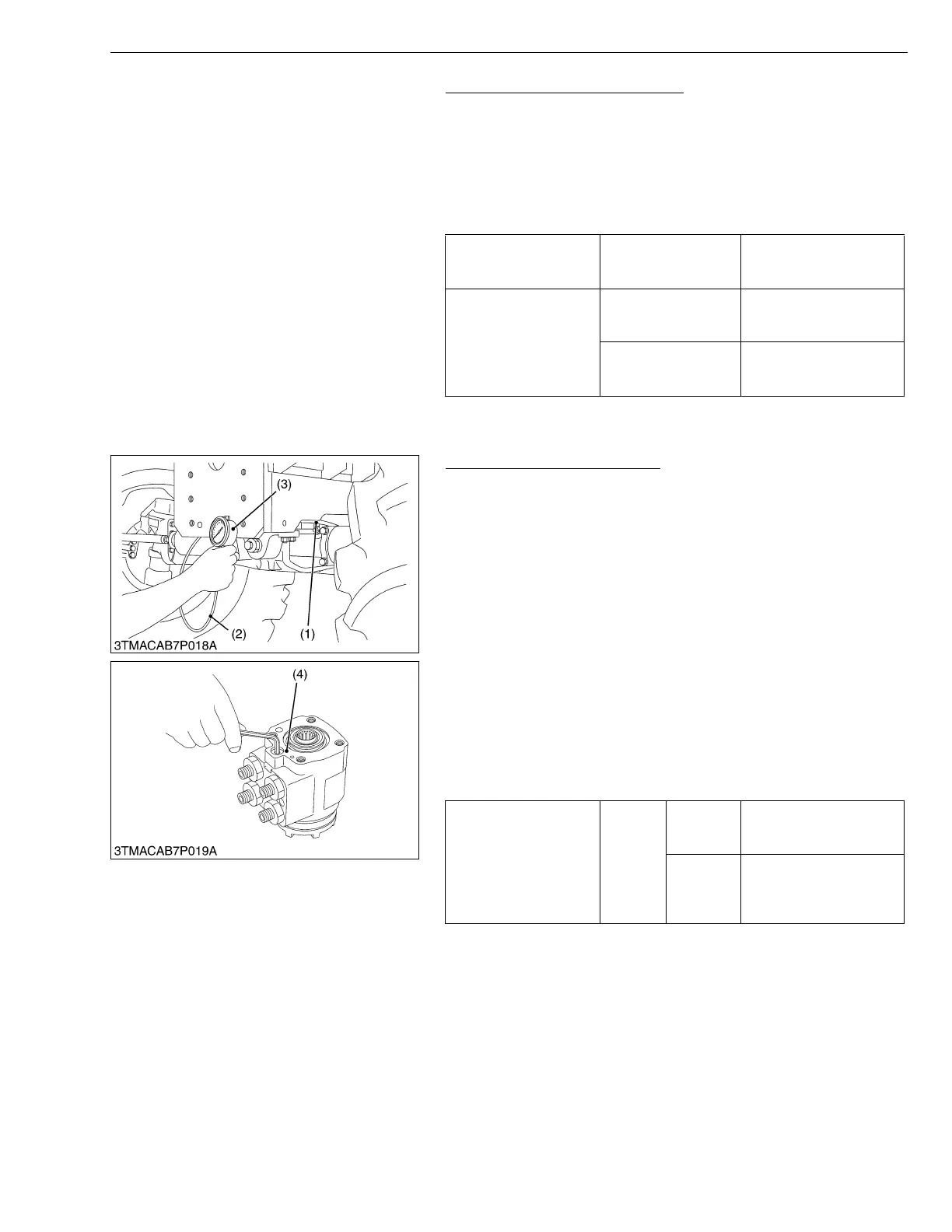

(6) Steering Controller
Relief Valve Setting Pressure
1. Disconnect the delivery hose 1 (or 2) from steering cylinder and
set a pressure gauge (3) (Code No. 07916-50321) between them
using power steering adaptor (1) (Code No. 07916-50331), joint
(Code No. 07916-50401) and cable (Code No. 07916-50331).
2. Start the engine and fully turn the steering wheel to the left or
right and read the pressure when the relief valve operates both
idling and maximum engine speed.
3. If the measurement is not within the factory specifications, adjust
the relief pressure by the adjust plug (4).
IMPORTANT
■
• (Air Bleeding)
Start the engine, then turn the steering wheel slowly in both
directions all the way alternately a few times, and stop the
engine.
(Reference)
• One full turn of the set screw changes the relief setting pressure
by approx. 2.9 MPa (30 kgf/cm
2
, 427 psi).
Condition
• Oil Temperature : 50 to 60 °C
112 to 140 °F
W1019820
Hydraulic pump delivery
at no pressure
Factory spec.
21.2 L/min.
5.6 U.S.gals/min
4.7 Imp.gals/min
Hydraulic pump delivery
at rated pressure
Factory spec.
20.8 L/min.
5.5 U.S.gals/min
4.6 Imp.gals/min
Allowable limit
17.3 L/min.
4.6 U.S.gals/min
3.8 Imp.gals/min
Relief valve setting
pressure
Factory
spec.
At idling
engine
speed
Above 12.3 MPa
125 kgf/cm
2
1779.1 psi
At
maximum
engine
speed
Below 18.1 MPa
185 kgf/cm
2
2633.1 psi
(1) Power Steering Adaptor
(2) Cable
(3) Pressure Gauge
(4) Adjust Plug for Relief Valve
KiSC issued 03, 2007 A
