Xantrex PROwatt SW User Manual

2 in. (50.8 mm)
1 19/32 in. (40.8 mm)
13/64 in. TYP (5.0 mm)
Drill Ø0.125 ( 1/8 in.) (3.2 mm) hole 
4 places for #6/32 self tapping screw or equivalent
Cutout panel 1 in.´ 1 6/
/
16
15 16
in. (49mm ´ 35 mm)

(dashed line)
2
1/2
in. (63.5 mm)
2
3/32
in. (53.5 mm)
13/64
in. TYP (5.0 mm)

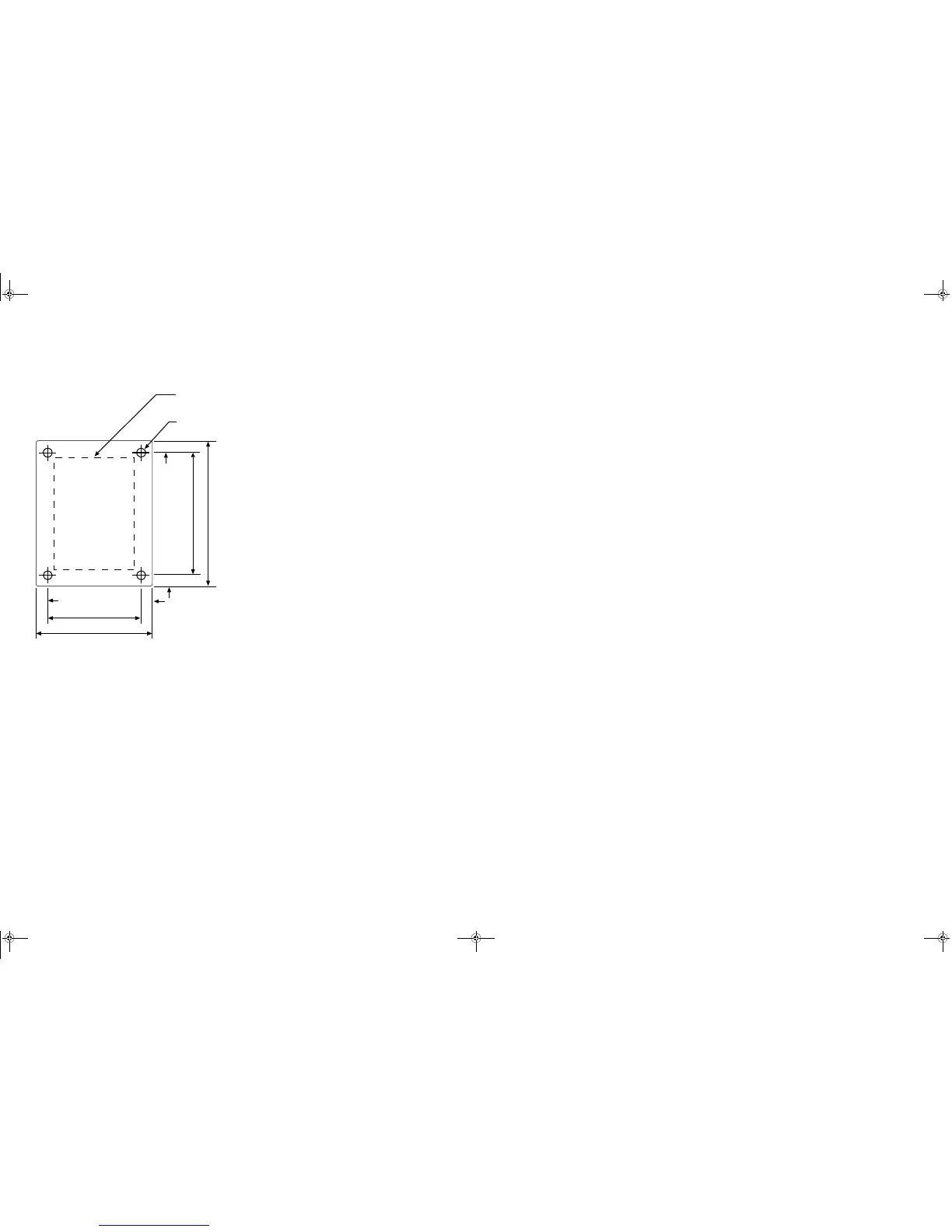

Mounting Template
975-0530-01-01_rev-A.fm Page 2 Monday, June 29, 2009 9:46 AM

Xantrex PROwatt SW Specifications

General

Output Waveform	Pure Sine Wave
Input Voltage	12 VDC
Total Harmonic Distortion (THD)	< 3%
Output Voltage	120V
Low Voltage Alarm	10.5 VDC
Low Voltage Shutdown	10.0 VDC
High Voltage Shutdown	15.5V
