Xiaomi Mi Electric Scooter 1S User Manual

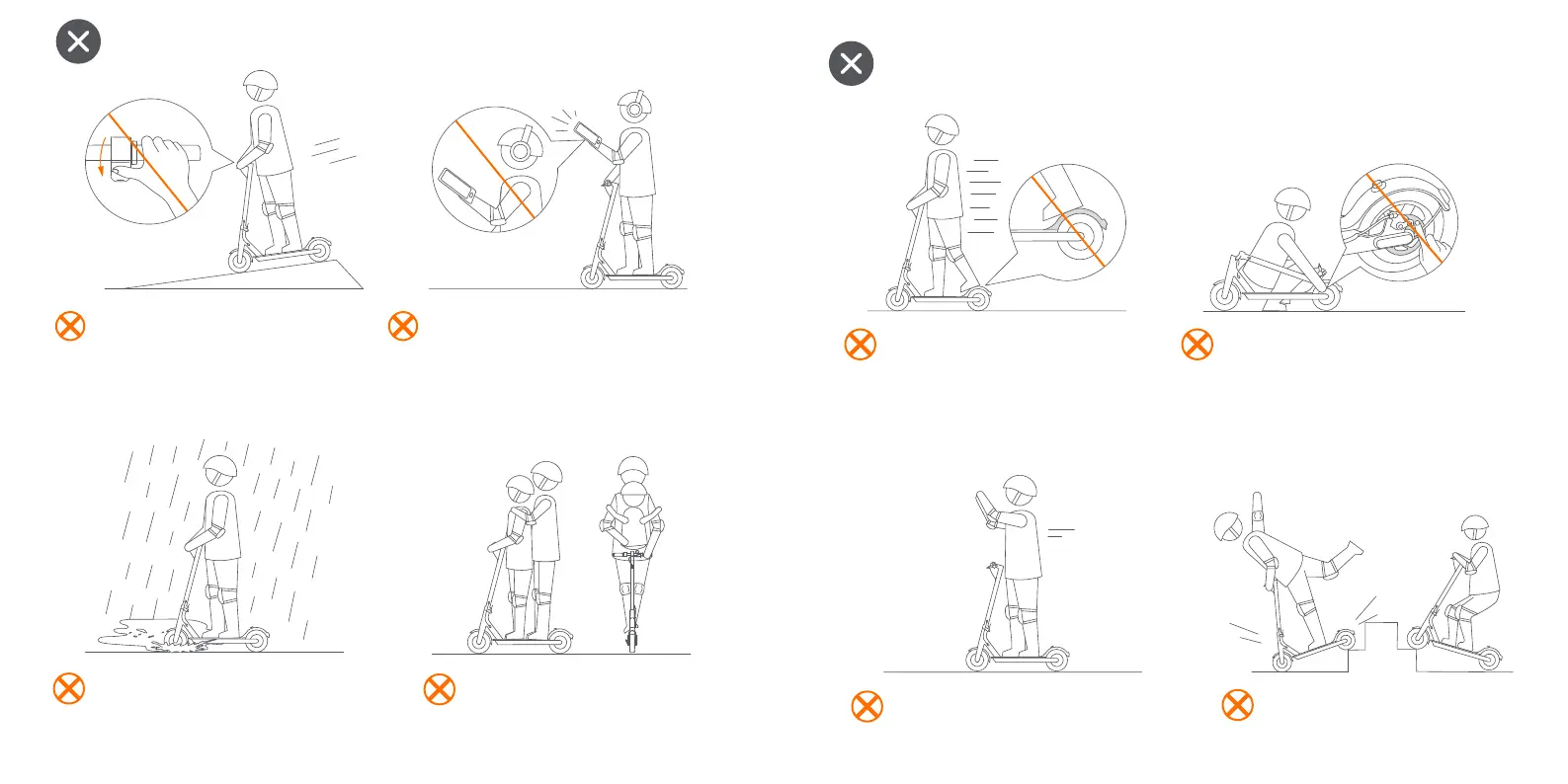

Do not try dangerous actions.
EN
EN
EN
Do not use mobile phone or wear earphones when
operating the scooter.
EN
Do not accelerate when going downhill, and brake in time
to slow down. When encountering a steep incline, you need
to step off the scooter and push.
D
o not ride in the rain. Do not ride through puddles or
any other (water) obstacles.
Do not ride with anyone else
, including children.
Do not try dangerous actions.
EN
EN
EN
EN
Do not keep your feet on the rear mudguard.
D
o not touch the disc brake.
Do not let go
of the handlebar while riding.
Do not try riding up or down
stairs, nor try
jumping over obstacles.

Xiaomi Mi Electric Scooter 1S Specifications

General

Type	Classic scooter
Foldable	Yes
Motor type	Brushless
Wheels type	Solid wheels
Cable length	2 m
Maximum speed	25 km/h
Product color	Black
Motor position	Front wheel
Wheel material	Rubber
Maximum gradient	14 °
Number of wheels	2 wheel(s)
Rear brake system	Disc brake
Display technology	LCD
Recommended gender	Any gender
Maximum load weight	100 kg
Displayed parameters	Battery status, Distance traveled, Gear indicator, Operating mode, Speed
Recommended age (max)	50 yr(s)
Recommended age (min)	16 yr(s)
Recommended height (max)	200 m
Recommended height (min)	120 m
Storage temperature (T-T)	-20 - 45 °C
Suitable for surface type	Asphalt
Front tire size (imperial)	8.5 \
Operating temperature (T-T)	-10 - 40 °C
Distance per battery charge (max)	30 km
International Protection (IP) code	IP54
Motor power	250 W
Battery type	NE1003-H
Charging time	5.5 h
Output current	1.7 A
Output voltage	42 V
Battery voltage	36 V
AC input voltage	100 - 240 V
Battery capacity	7.65 Ah
AC input frequency	50 - 60 Hz
Instantaneous power (max)	500 W
Package type	Box
Seat included	No

Weight and Dimensions

Depth	430 mm
Width	1080 mm
Height	1140 mm
Weight	12500 g
Folded height	490 mm
