The Arty A7 is fully compatible with the high-performance Vivado ® Design Suite. It is supported under the free WebPACK™ license,
so designs can be implemented at no additional cost. This free license includes the ability to create MicroBlaze™ soft-core processor
designs. Design resources, example projects, and tutorials are available for download at the Arty Resource Center, accessible from
reference.digilentinc.com.
(https://reference.digilentinc.com/_detail/reference/programmable-logic/arty-a7/arty-a7-callout.png?id=reference%3Aprogrammable-logic%3Aarty-
a7%3Areference-manual)

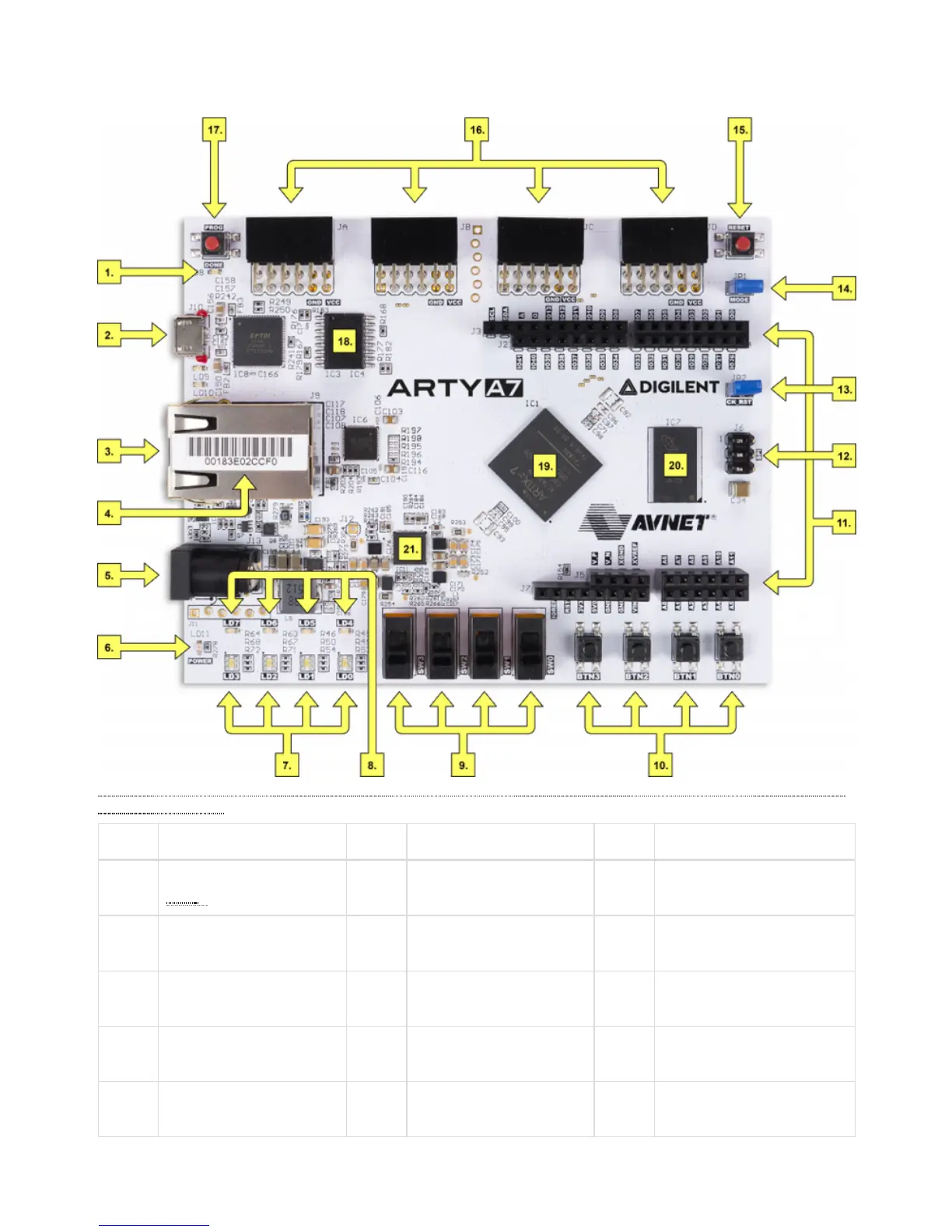

Callout Description Callout Description Callout Description
1 FPGA programming DONE
LED ()
8 User RGB LEDs 15 chipKIT processor reset
2 Shared USB JTAG / UART
port
9 User slide switches 16 Pmod connectors
3 Ethernet connector 10 User push buttons 17 FPGA programming reset
button
4 MAC address sticker 11 Arduino/chipKIT shield
connectors
18 SPI flash memory
5 Power jack for optional
external supply
12 Arduino/chipKIT shield SPI
connector
19 Artix FPGA
