50

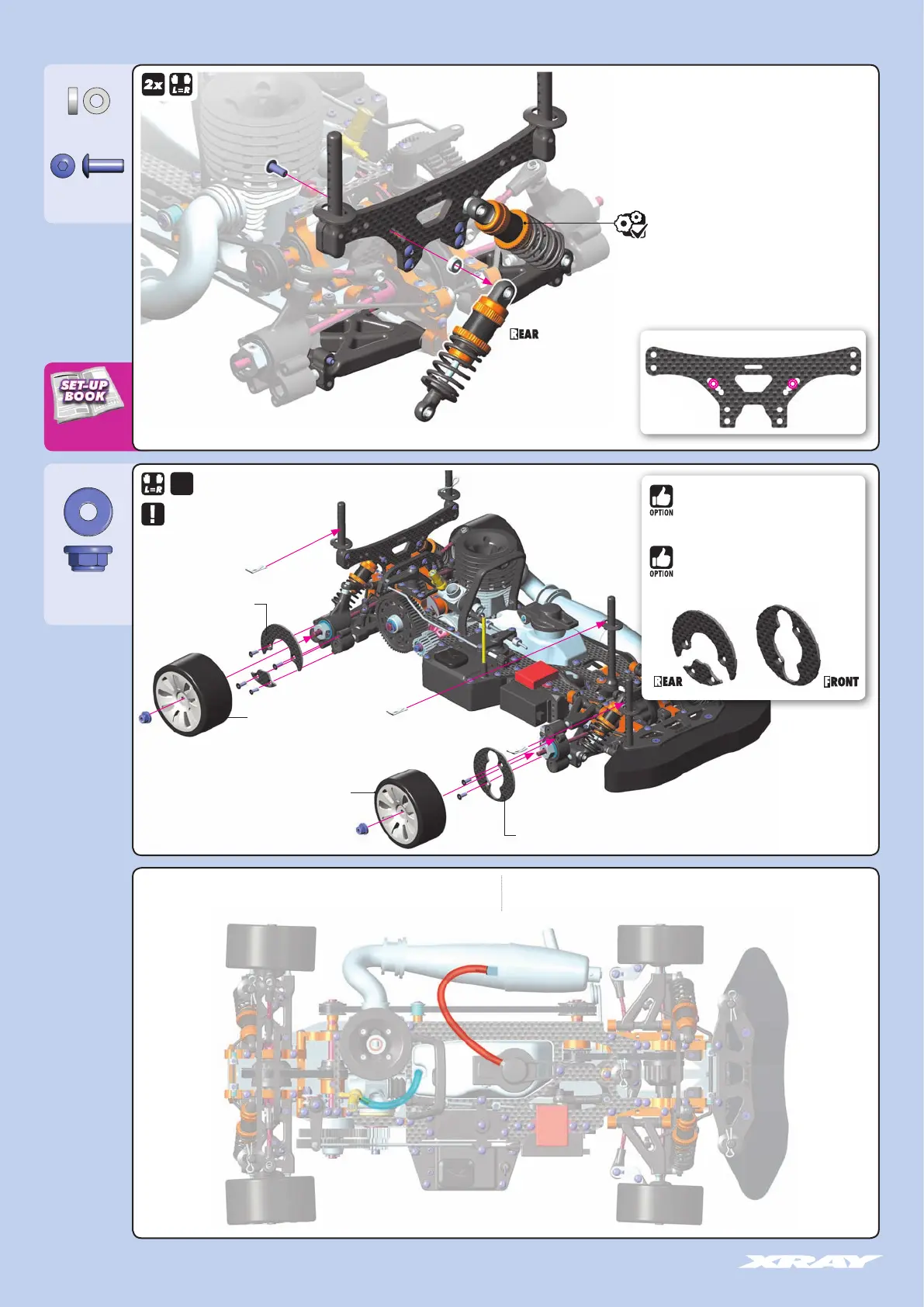

SHOCK POSITION
ADJUSTMENT
FINAL ASSEMBLY
303123-O
SHIM 3x6x2
960240
N M4
REAR SHOCKS
(LONGER SPRINGS)
REAR TIRES (WIDE)
FRONT TIRES (NARROW)
OPTIONAL #335270
OPTIONAL #335370
TIRES NOT INCLUDED
INITIAL POSITION
4x
Cut 2 pieces of silicone tubing and install as follows: SILICONE TUBING MARKED AS RED
muffler to fueltank cap
SILICONE TUBING MARKED AS BLUE
fuel tank to carburetor
#335270
GRAPHITE AERODYNAMIC DISK - FRONT
for improved steering
#335370
GRAPHITE AERODYNAMIC DISK - REAR
for improved stability and traction
902308
SH M3x8
3x6x2mm
