24
BAG
07
301332
981212
902308
3
08301
902306
902306
SH M3x6
902306
SH M3x6

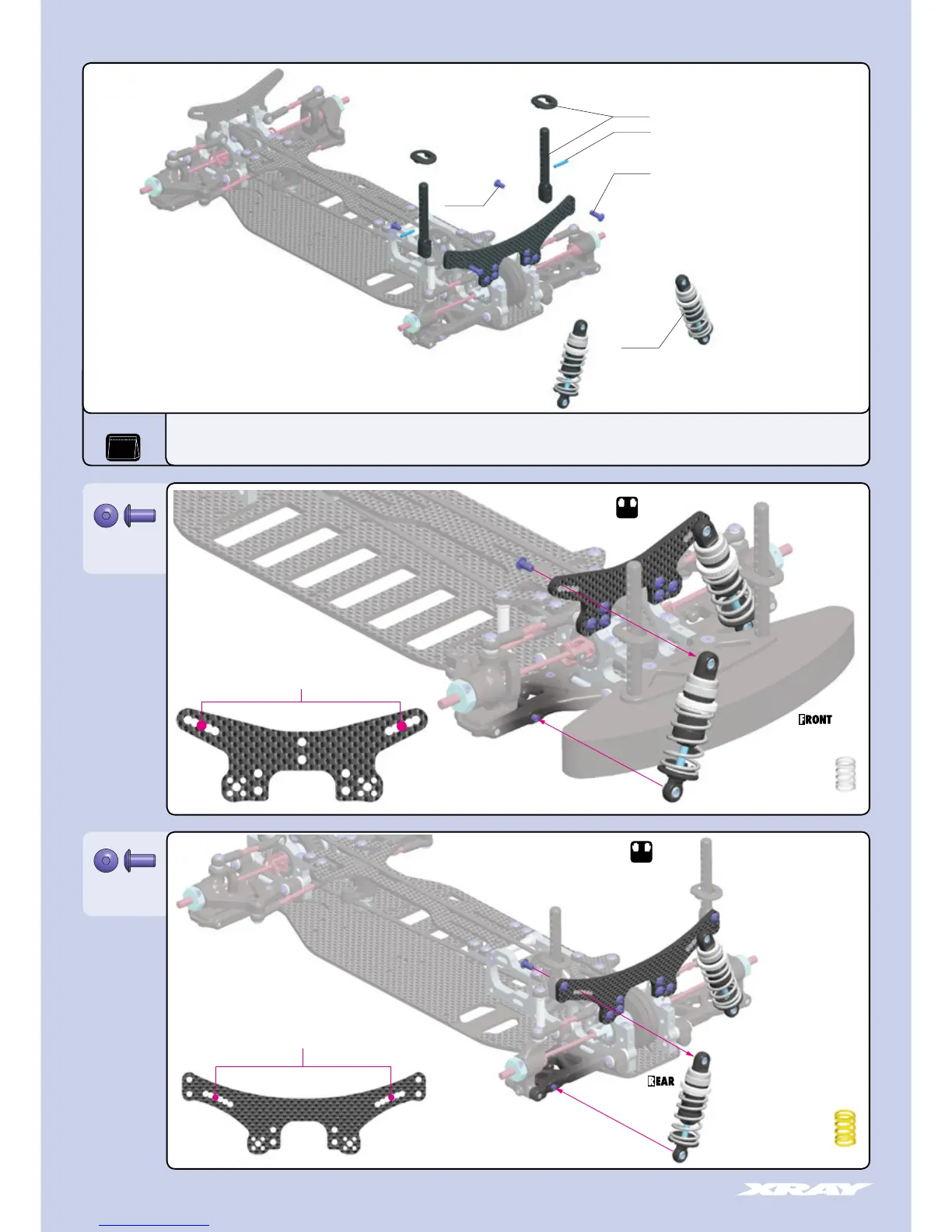

7. FRONT & REAR ASSEMBLY
30 1332 T2 REAR BODY MOUNT SET 6MM
90 2306 HEX SCREW SH M3x6 (10)
90 2308 HEX SCREW SH M3x8 (10)
98 1212 PIN 2x12 (10)
30 8301 T2 XRAY SHOCK ABSORBER-SET 4-STEP - SHORT (2)
INITIAL POSITION
REAR SHOCK
(YELLOW-SILVER SPRING)
L=R
INITIAL POSITION
FRONT SHOCK
(SILVER SPRING)
L=R
