If a tuned open wire transmission line, or a long wire
antenna is used, a suitable antenna tuner must be used
between the antenna and the transceiver to provide an
impedance match between the unbalanced coaxial out-
put of the transceiver and the balanced open-wire feeder
or Jong wire.
For mobile operation, most of the commercially availa-
ble antennas on the market will give good results with
coaxial cable is securely grounded to the chassis of
the vehicle at the antenna mount. Adjust the antenna
length carefully for minimum SWR after installation.

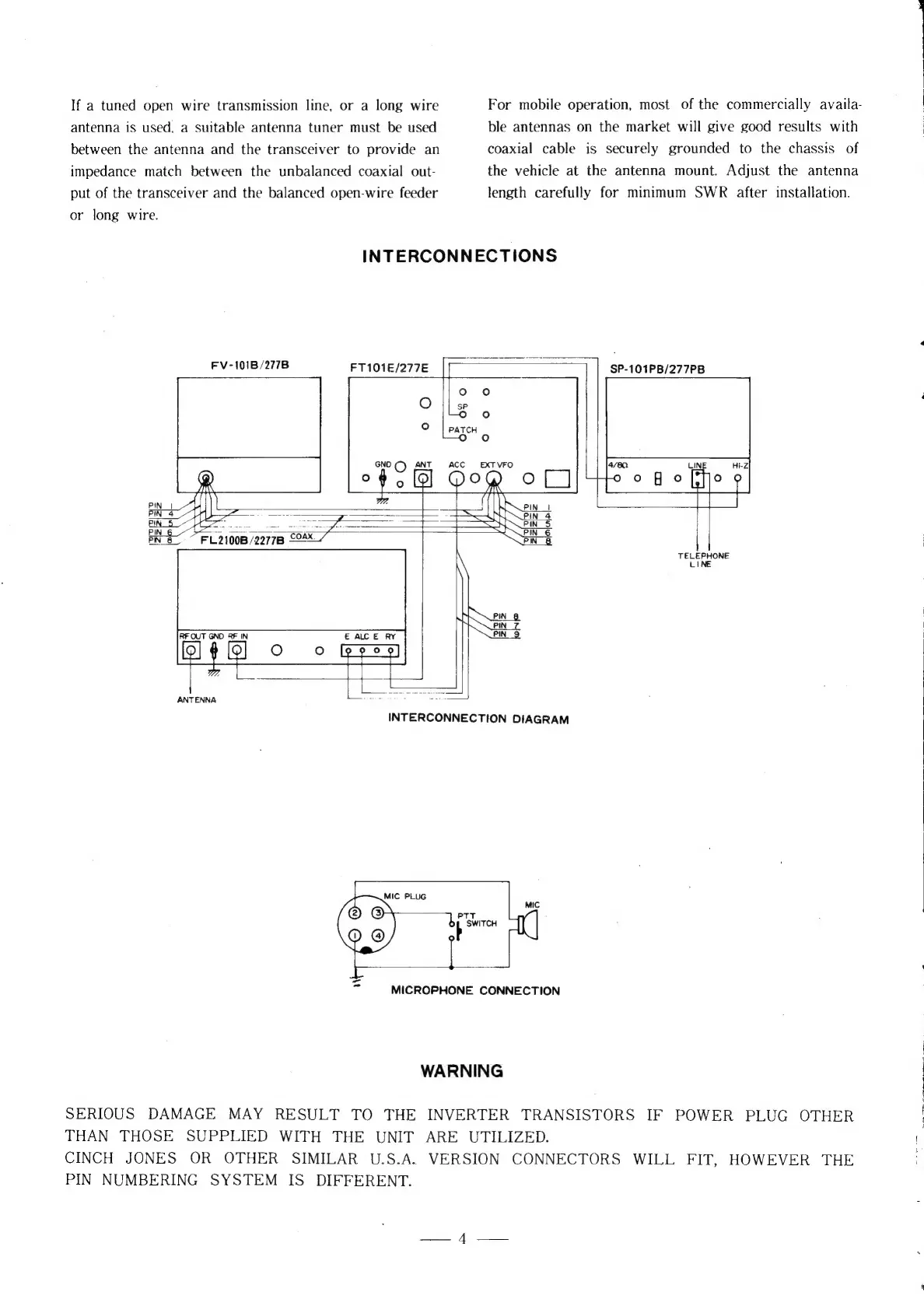

INTERCONNECTIONS
FV-101B/277B FT101E/277E
GND
1 O
°
SP-101PB/277PB
ANTENNA
TELEPHONE
LINE
INTERCONNECTION DIAGRAM
MIC PLUG
@ @
Q @
MICROPHONE CONNECTION
WARNING
SERIOUS DAMAGE MAY RESULT TO THE INVERTER TRANSISTORS IF POWER PLUG OTHER
THAN THOSE SUPPLIED WITH THE UNIT ARE UTILIZED.
CINCH JONES OR OTHER SIMILAR U.S.A. VERSION CONNECTORS WILL FIT, HOWEVER THE
PIN NUMBERING SYSTEM IS DIFFERENT.
