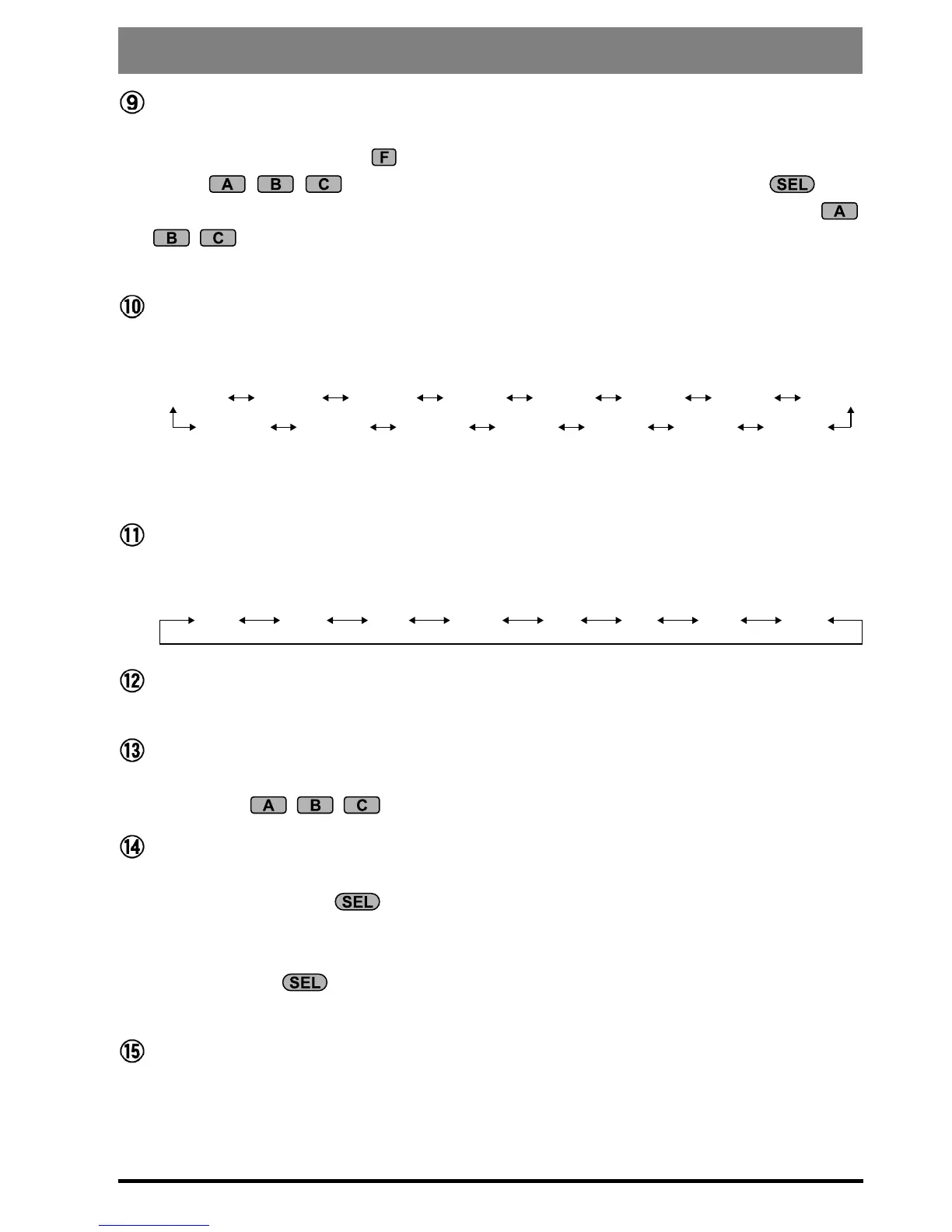

Front Panel Control & Switches
FUNC
Keys
These three keys select many of the most important operating features of the trans-
ceiver. When pressing the key, the current function of that key appears above each
of the , , keys (along the bottom of the LCD); rotating the knob
scrolls the display through eleven rows of functions available for use via the ,
, keys.
The available features are shown in chart on the next page.
BAND
(
DWN
)
/
BAND
(
UP
)
Key
Pressing either of these keys momentarily will cause the frequency to be moved up or
down by one frequency band. The selections available are:
1.8 MHz 3.5 MHz 7.0 MHz 10 MHz 14 MHz 15 MHz 18 MHz 21 MHz
24 MHz28 MHz50 MHz88 MHz108 MHz144 MHz430 MHz
Recalling the 5 MHz band (U.S. model) requires different procedure. See page 20
for details.
MODE
(
)
/
MODE
(
)
Key
Pressing either of these keys momentarily will change the operating mode. The selec-
tions available are:
LSB USB CW CWR AM FM DIG PKT
HOME
Key
Pressing this key momentarily recalls a favorite “
” frequency memory.
SEL
Knob
This detented rotary switch is used for tuning, memory selection, and function selec-
tion for the , , keys of the transceiver.
CLAR
Key
Press this key momentarily to activate the Receiver Clarier feature. When this fea-
ture is activated, the knob may be used to set a tuning offset of up to ±9.99
kHz. The transmitter’s frequency is not affected by the setting of the Clarier.
Press and hold this key for 1/2 second to activate the IF Shift feature, which allows
you to use the knob to adjust the center frequency of the IF lter’s passband
response.
ANT
Jack
Connect the supplied 50/144/430 MHz rubber ex antenna (or another antenna pre-
senting a 50
Ω
impedance) to this BNC connector.
In its default setting, this jack does not function on the HF bands. If you want to en-
able this jack on the HF bands, recall and change the setting of Menu #07.
To Next Page
