YDP-161/141 Owner’s Manual
34

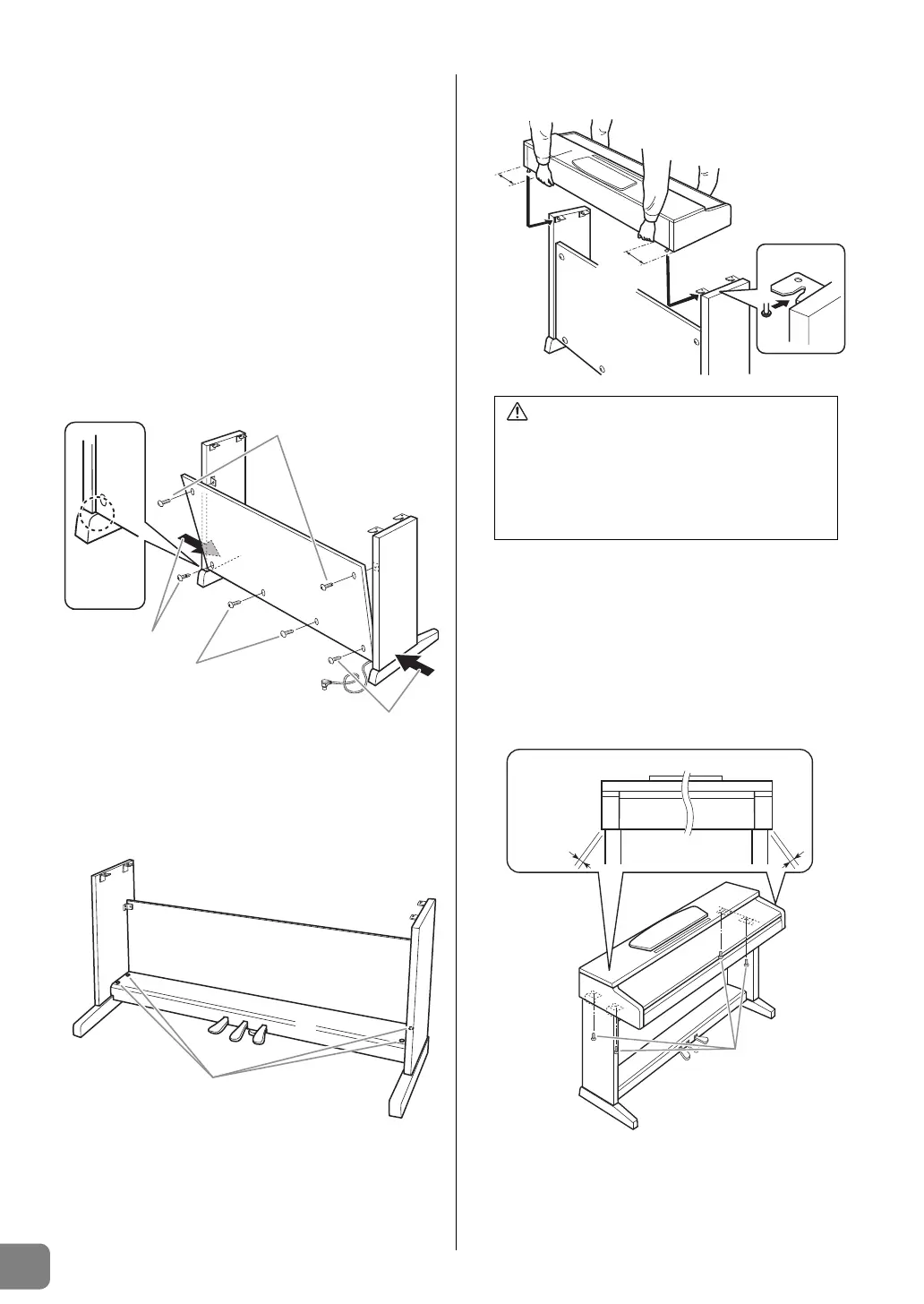

Keyboard Stand Assembly
ENGLISH
2 Attach B.
Depending on the model of digital piano you
purchased, the surface color of one side of B may be
different from the other side. In this case, position B so
that the side of the surface color similar to D and E
faces the player.
2-1 Place the lower side of B on each foot of D and E,
then attach the upper side to D and E.
2-2 Attach the top of B to D and E by finger-tightening
the thin screws 3 (4 × 12mm).
2-3 While pushing the lower part of D and E from
outside, secure the bottom ends of B using two
tapping screws 4 (4 × 20mm).
2-4 Insert the other two tapping screws 4 (4 × 20mm)
into the other two screw holes to secure B.
2-5 Securely tighten the screws on the top of B that
were attached in Step 2-2.
3 Securely tighten the screws on C that were
attached in Step 1-3.
4 Mount A.
5 Secure A.
5-1 Adjust the position of A so that the left and right
ends of A will project beyond D and E equally
when seen from the front.
5-2 Secure A by tightening the short screws 2
(6 × 16mm) from the front.
R
L
B
D
E
2-2, 2-5
2-1
2-3
2-4
2-3
Place the
bottom ends
of the rear
panel on
each foot.
B
C
3
CAUTION
• Fingers can become pinched between the main
unit and the rear or side panels, be extra careful
so as not to drop the main unit.
• Do not hold the keyboard in any position other
than the position shown in the illustration.
A
B
D
E
At least
10 cm
At least
10 cm
Be sure to place your hands at least
10 cm from either end of the main unit
when positioning it.
5-1
5-2
A
Projection
of A
