Yamaha 2001 YZF-R6 Service Manual

–7–
O Fasten the main harness, ground lead and battery
box with a plastic clamp.
P The end of the clamp is facing upward.
Q The end of the clamp is facing upward.
R Licence and flasher light sub harness on the
taillight unit.
S Licence and flasher light sub harness on the
taillight unit.
T Clamp the leads.
U Store the ends of all leads at the inside of the rib.
V Fasten the licence light lead. And bend the licence
light lead.
W Fasten the flasher light lead. And bend the flasher
light lead.

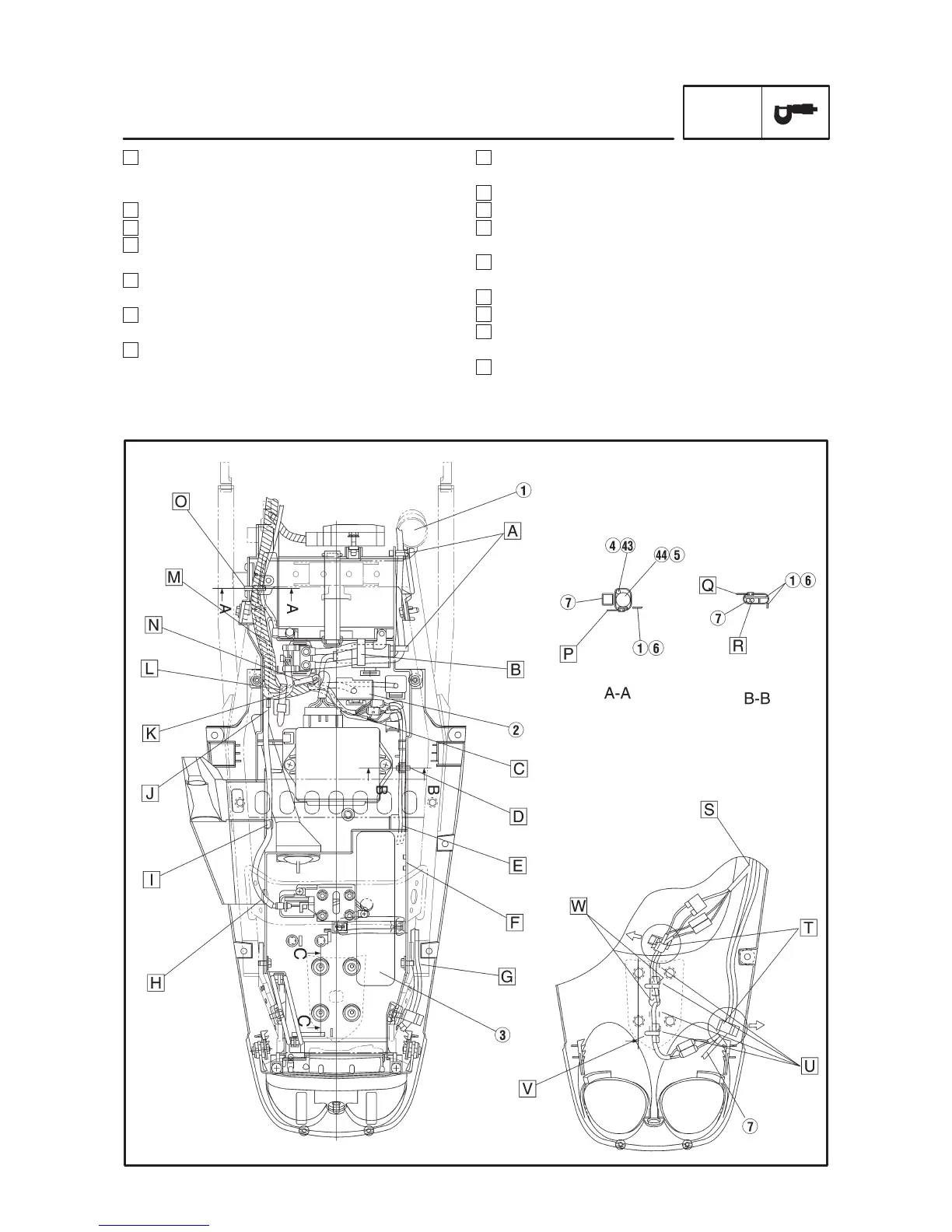

CABLE ROUTING
SPEC
H Route the seat lock cable into the hole of the frame.
Mount the cable so that the side covered with a
cable protector up the end is positioned at rear.
I Fasten the seat lock cable with a steel clamp.
J Do not fasten the seat lock cable.
K Route the wire negative lead under the starter relay
lead.
L Fasten the main harness, starter relay lead and
wire negative lead with a plastic clamp.
M Route the wire negative lead under the main
harness.
N Position the wire negative lead coupler under the
main harness.

Yamaha 2001 YZF-R6 Specifications

General

Bore x Stroke	65.5 x 44.5 mm
Compression Ratio	12.4:1
Ignition	Digital TCI
Transmission	6-speed
Final Drive	Chain
Rear Tire	180/55 ZR17
Fuel Capacity	4.5 gallons
Front Suspension	43 mm inner tube
Rear Suspension	Single shock; fully adjustable
Front Brakes	Dual 298mm discs
Rear Brakes	Single 220mm disc
Front Tire	120/60 ZR17
Wheelbase	54.3 inches
Seat Height	820 mm (32.3 in)
Length	2, 040 mm (80.3 in)
Dry Weight	370 lbs
