– 16 –
– +
ELEC
SIGNAL SYSTEM
MEETS
SPECIFICATION

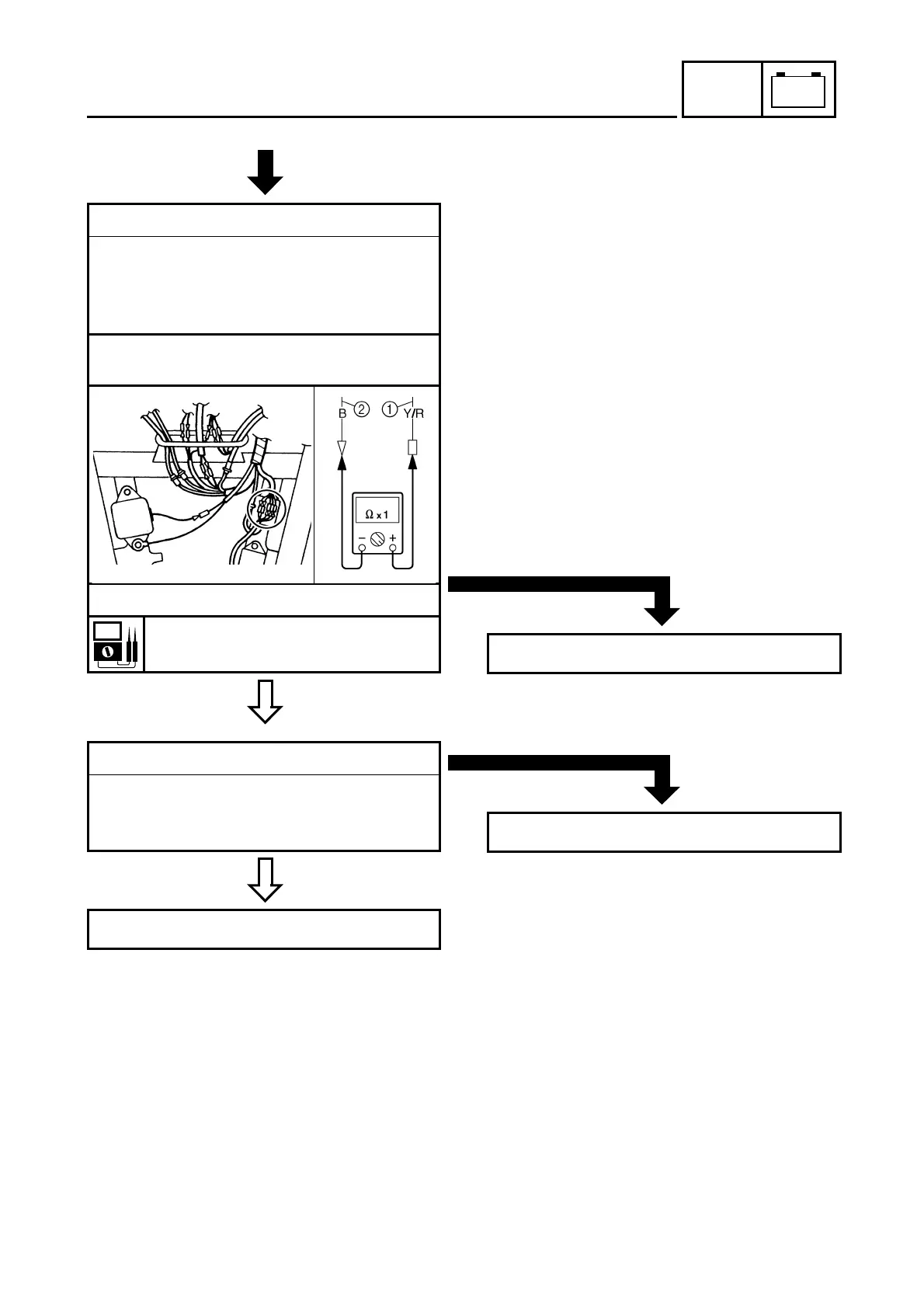

4.Lighting coil resistance
●
Disconnect the CDI magneto leads (Yel-
low/Red and Black).
●
Connect the pocket tester (Ω × 1) to the
lighting coil leads.
Tester (+) lead → Yellow/Red lead 1
Tester (–) lead → Black lead 2
●
Measure the lighting coil resistance.
Lighting coil resistance:
0.16 ~ 0.24 Ω at 20 °C (68 °F)
*
OUT OF SPECIFICATION
Replace the stator assembly.
CORRECT
5.Wiring connections
●
Check the connections of the entire lighting
system.
Refer to “CIRCUIT DIAGRAM”.
Replace the voltage regulator.
POOR CONNECTION
Properly connect the lighting system.
To Next Page
