GENERAL CHASSIS
4-15
EAS14B1049

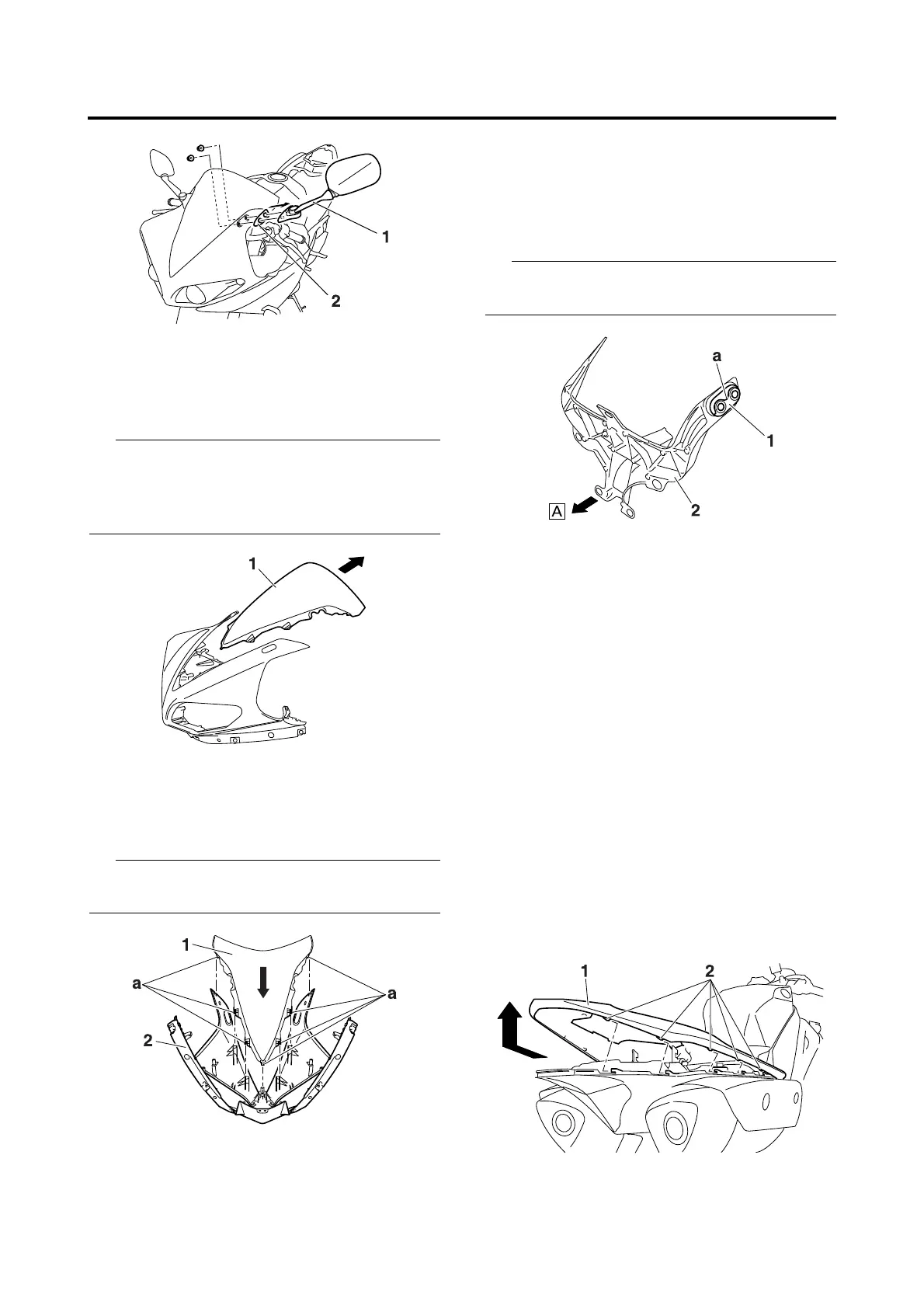

REMOVING THE WINDSHIELD
1. Remove:
• Windshield “1”
TIP
• Slide the windshield to the back and remove
from the front cowling.
• Remove the rear view mirror and then
remove the windshield.
EAS14B1050
INSTALLING THE WINDSHIELD
1. Install:
• Windshield “1”
TIP
Insert the windshield tabs “a” into the receptors
of the front cowling “2”.
EAS14B1051
INSTALLING THE MIRROR FITTING
PLATES
1. Install:
• Mirror fitting plate “1”
(to meter bracket “2”)
TIP
Face the mirror fitting plate concave “a” up and
install it to the meter bracket.
EAS14B1001
REMOVING THE UPPER TAIL COVER
1. Remove:
• Rider seat
Refer to “GENERAL CHASSIS” on page
4-1.
• Passenger seat
Refer to “GENERAL CHASSIS” on page
4-1.
2. Remove:
• Upper tail cover “1”
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Remove the bolt on the upper tail cover.
b. Remove the quick fasteners on the upper
tail cover.
c. Slide the upper tail cover to the back,
remove the tabs “2” of the upper tail cover
from the lower tail cover tabs, and then lift
the cover up a little.
d. Slide the upper tail cover forward and
remove.
A. Front side

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
