ENGINE REMOVAL
5-11

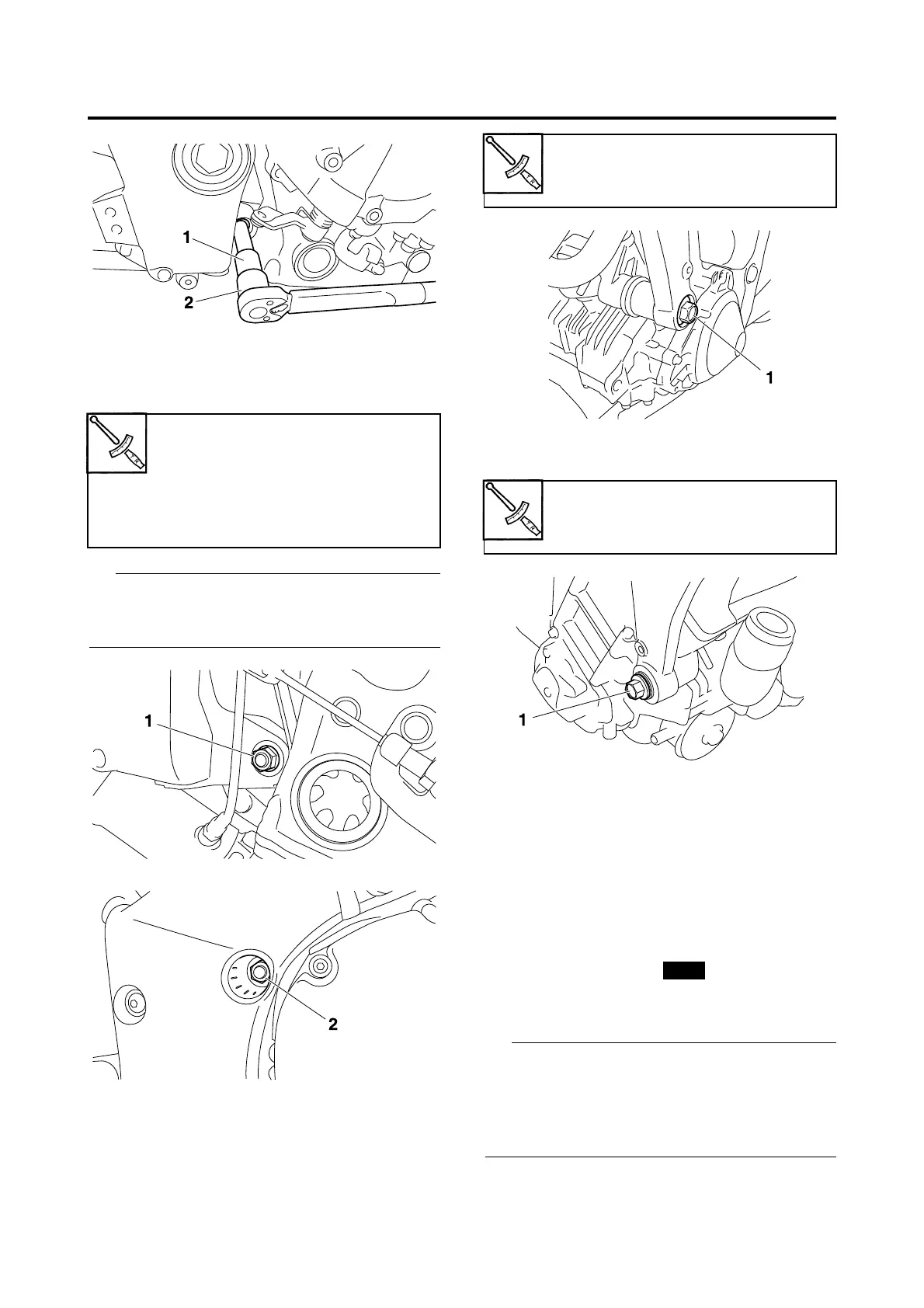

7. Tighten:
• Engine mounting nut (rear lower side) “1”
• Engine mounting nut (rear upper side) “2”
TIP
First tighten the engine mounting nut (rear
lower side), and then tighten the engine
mounting nut (rear upper side).
8. Tighten:
• Engine mounting bolt (front left side) “1”
9. Tighten:
• Engine mounting bolt (front right side) “1”
EAS14B1014
INSTALLING THE EXHAUST PIPE AND
MUFFLER
1. Install:
• Right footrest assembly
Refer to “ADJUSTING THE RIDER
FOOTRESTS” on page 4-16.
2. Install:
• Muffler gasket “1”
(to muffler)
• Muffler
TIP
• When installing the muffler gasket, set the
surface “a” with the carbon to the back.
• When installing the catalyst pipe assembly
and muffler clamp, tip of the tab “b” should
not contact the edge of the muffler gasket.
Engine mounting nut (rear
lower side)
51 Nm (5.1 m·kgf, 37 ft·lbf)
Engine mounting nut (rear
upper side)
51 Nm (5.1 m·kgf, 37 ft·lbf)
Engine mounting bolt (front left
side)
70 Nm (7.0 m·kgf, 50 ft·lbf)
Engine mounting bolt (front
right side)
70 Nm (7.0 m·kgf, 50 ft·lbf)
New

Yamaha 2009 YZF-R1 (Y) Specifications

General

Bore x Stroke	78.0 mm x 52.2 mm
Compression Ratio	12.7:1
Fuel System	Fuel injection with YCC-T and YCC-I
Ignition	TCI: Transistor Controlled Ignition
Transmission	6-speed w/multiplate slipper clutch
Final Drive	Chain
Front Tire	120/70-ZR17
Rear Tire	190/55-ZR17
Seat Height	835 mm
Wet Weight	206 kg
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Front Suspension	43 mm inverted fork, fully adjustable
Rear Suspension	Single shock, fully adjustable
Front Brakes	Dual 310 mm discs, radial-mount 6-piston calipers
Rear Brakes	220 mm disc, single-piston caliper
Dimensions (L x W x H)	2, 070 mm x 715 mm x 1, 130 mm
Wheelbase	1415 mm
Fuel Capacity	18 L
