Yamaha 2014 MT-07 Service Manual

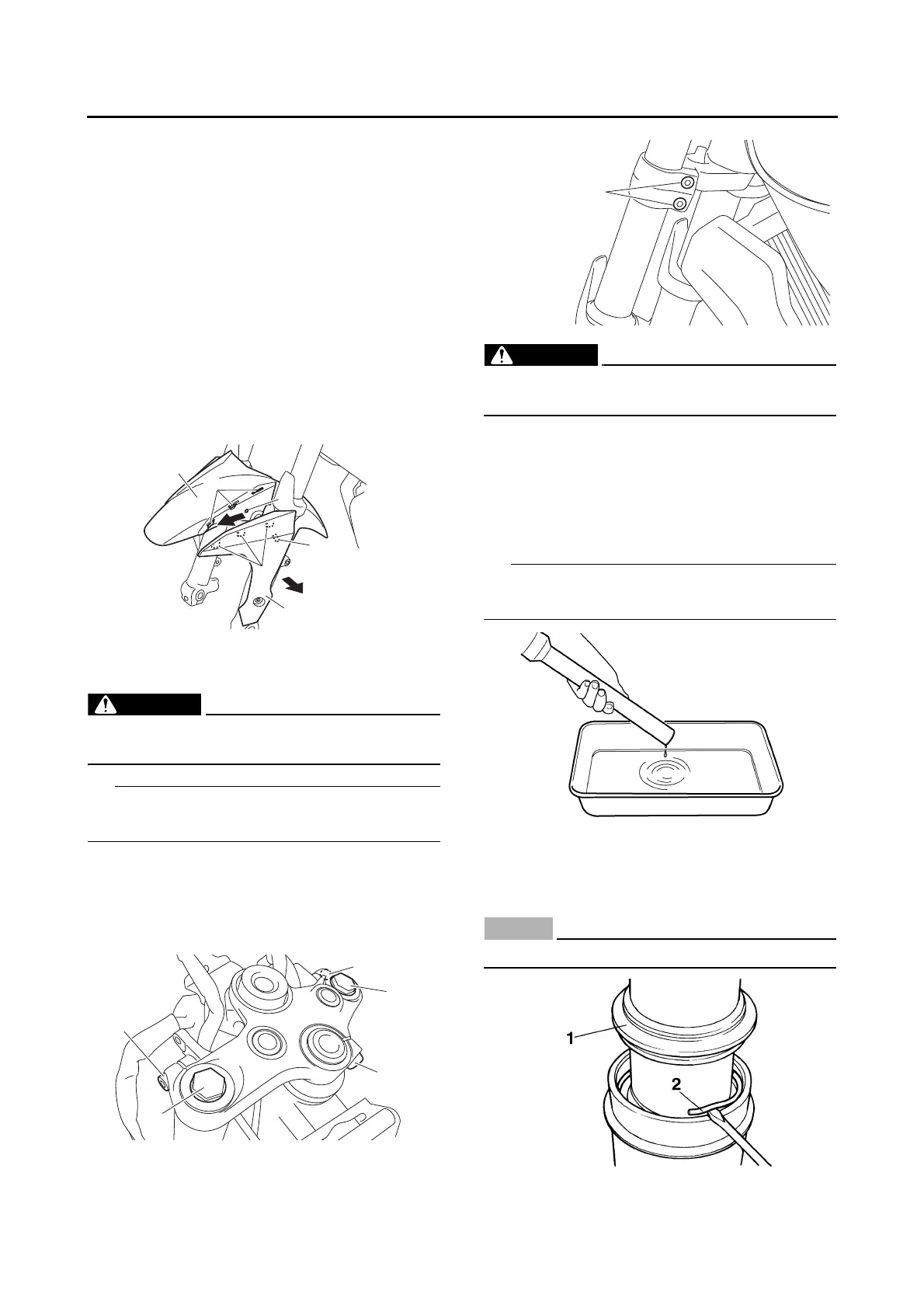

FRONT FORK
4-80
EAS31110
REMOVING THE FRONT FENDER SIDE
COVERS AND FRONT FORK LEGS
The following procedure applies to both of the
front fender side covers and front fork legs.
1. Remove:
• Front fender side cover “1”
• Front fender “2”
• Front fender brackets
▼▼▼▼ ▼ ▼▼▼▼▼▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼ ▼ ▼▼▼▼▼▼▼
a. Remove the projection “a” on the cover from
the hole “b” in the front fender.
b. Slide the front fender side cover forward to re-
move the projections “c” on the cover from
the holes “d” in the front fender, and then re-
move the cover.
▲▲▲▲ ▲ ▲▲▲▲▲▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲ ▲ ▲▲▲▲▲▲▲
2. Stand the vehicle on a level surface.
WARNING
EWA13120
Securely support the vehicle so that there is
no danger of it falling over.
TIP
Place the vehicle on a suitable stand so that the
front wheel is elevated.
3. Loosen:
• Front fork cap bolt “1”
• Upper bracket pinch bolts (left and right) “2”
• Upper bracket pinch bolt (center) “3”
• Lower bracket pinch bolts “4”
WARNING
EWA13640
Before loosening the upper and lower brack-
et pinch bolts, support the front fork leg.
EAS30207
DISASSEMBLING THE FRONT FORK LEGS
The following procedure applies to both of the
front fork legs.
1. Drain:
• Fork oil
TIP
Stroke the outer tube several times while drain-
ing the fork oil.
2. Remove:
• Dust seal “1”
• Oil seal clip “2”
(with a flathead screwdriver)
NOTICE
ECA14180
Do not scratch the inner tube.
2
b
d
c
a
1
3
2
1
2
1
4

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
