Yamaha 2014 MT-07 Service Manual

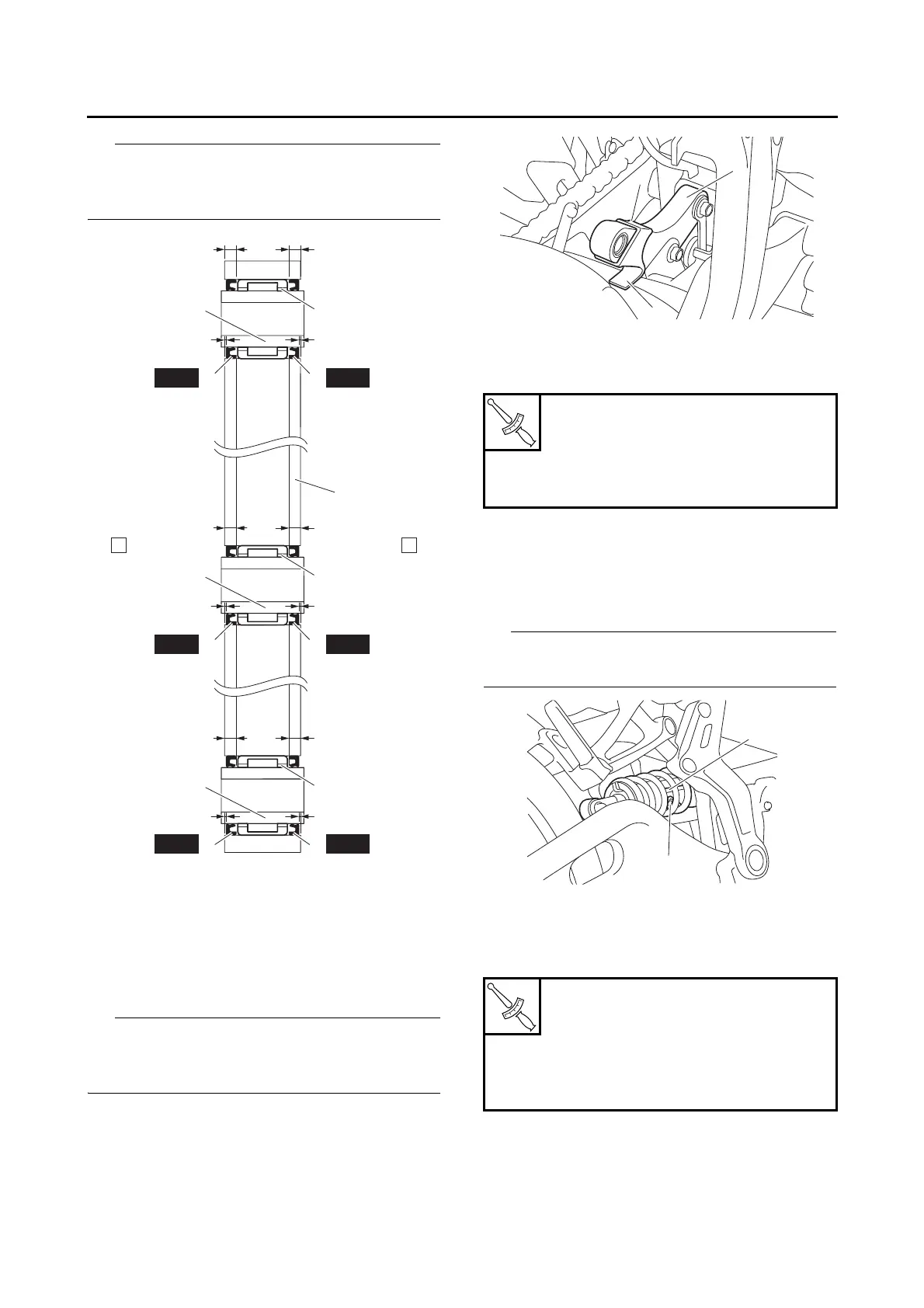

REAR SHOCK ABSORBER ASSEMBLY
4-94
TIP
When installing the oil seals to the relay arm,
face the character stamps of the oil seals out-
side.
3. Install:
• Relay arm “1”
• Relay arm rubber cover “2”
(to the relay arm)
TIP
Make sure that the portion “a” of the relay arm
rubber cover is positioned on top of the swing-
arm.
4. Tighten:
• Connecting arm nut
• Relay arm nut
EAS30225
INSTALLING THE REAR SHOCK
ABSORBER ASSEMBLY
1. Install:
• Rear shock absorber assembly “1”
TIP
Make sure that the label “a” on the rear shock
absorber assembly faces down.
2. Tighten:
• Rear shock absorber assembly nut (front
side)
• Rear shock absorber bolt (rear side)
A. Left side
B. Right side
a a
1
2
4
3
A B
New
2
New
bb
a a
1
2
3
New
2
New
bb
a a
1
2
3
New
2
New
bb
T
R
.
.
Connecting arm nut (relay arm
side)
40 Nm (4.0 m·kgf, 29 ft·lbf)
Relay arm nut
40 Nm (4.0 m·kgf, 29 ft·lbf)
T
R
.
.
Rear shock absorber assembly
bolt (front side)
44 Nm (4.4 m·kgf, 32 ft·lbf)
Rear shock absorber assembly
nut (rear side)
40 Nm (4.0 m·kgf, 29 ft·lbf)
2
a
1
a
1

Yamaha 2014 MT-07 Specifications

General

Engine Type	Liquid-cooled, 4-stroke, DOHC, 4-valve
Displacement	689 cc
Bore x Stroke	80.0 mm x 68.6 mm
Compression Ratio	11.5:1
Maximum Torque	68.0 Nm (6.9 kg-m) @ 6, 500 rpm
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	Constant Mesh, 6-speed
Final Drive	Chain
Front Suspension	Telescopic forks
Front Brake	Hydraulic dual disc, Ø 282 mm
Rear Brake	Hydraulic single disc, Ø 245 mm
Front Tyre	120/70 ZR17M/C (58W)
Rear Tyre	180/55 ZR17M/C (73W)
Dimensions (L x W x H)	2, 085 mm x 745 mm x 1, 090 mm
Seat Height	805 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	140 mm
Wet Weight	179 kg
Fuel Tank Capacity	14 L
Maximum Power	74.8 PS (55.0 kW) @ 9, 000 rpm
Rear Suspension	Swingarm (Link type suspension)
