5-30

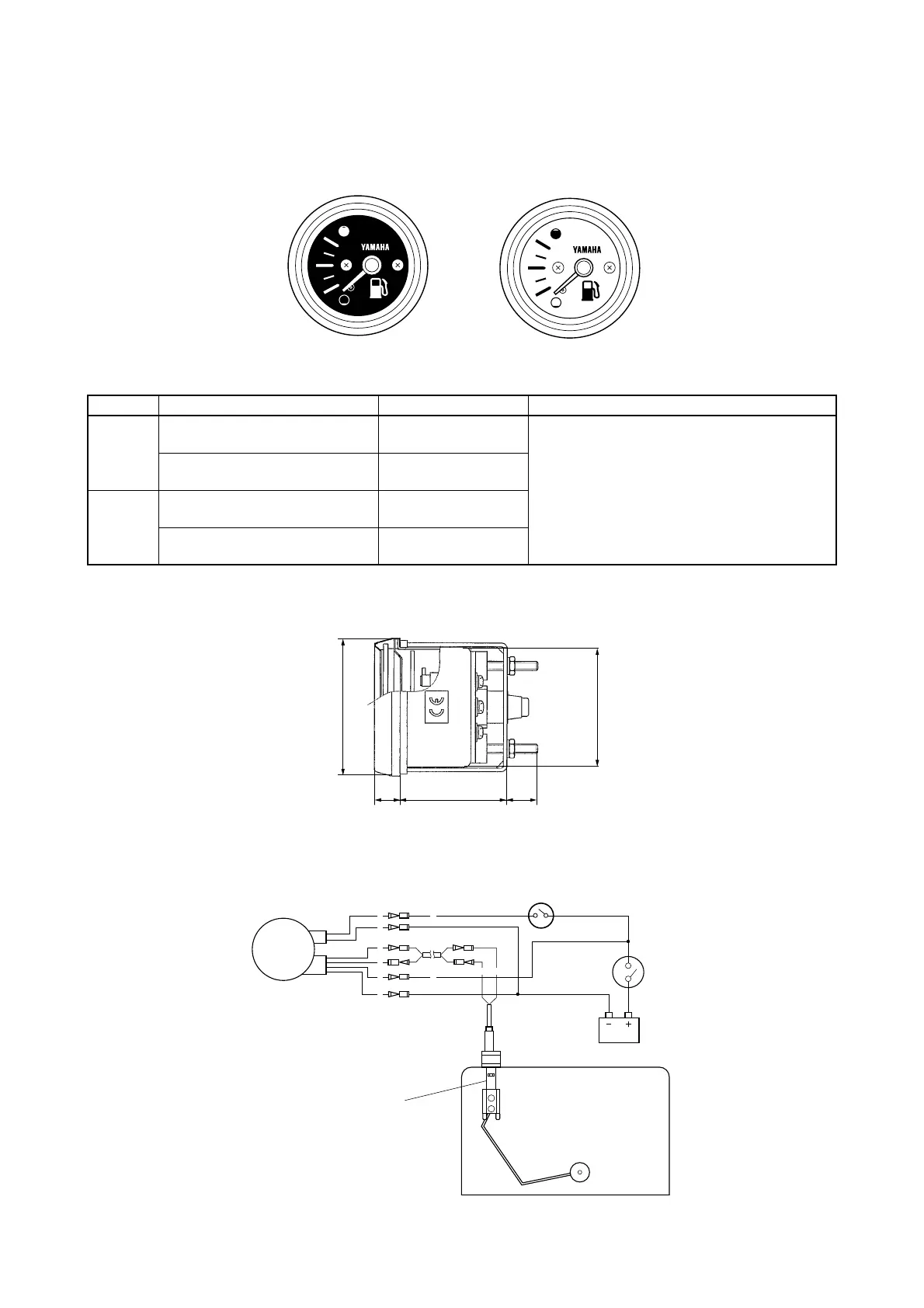

FUEL METER
The fuel meter indicates the amount of fuel remaining in the fuel tank.
However, a difference between the indication and actual remaining fuel may occur due to the fuel
tank shape, design, etc.
FUEL METER TYPES AND APPLICATIONS
FUEL METER DIMENSIONS
WIRING THE FUEL METER
Ref. No. Description Part No. Applicable model
1
For Yamaha sensor (5 – 105 Ω)
Black panel
6Y7-85750-00
All electrical start models
For ABYC sensor (30 – 240 Ω)
Black panel
6Y7-85750-10
2
For Yamaha sensor (5 – 105 Ω)
White panel
6Y7-85750-20
For ABYC sensor (30 – 240 Ω)
White panel
6Y7-85750-30
60 (2.36)
11 (0.43)
46.6 (1.83)
13.7 (0.54)
52 (2.05)
L
BW
Fuel sensor
(Yamaha, ABYC, others)
Battery
Fuel meter
Fuel tank
B
B
W
Y
L
Y
B
Lamp switch
IG
switch
