Yamaha XT660X Service Manual

4 - 26
CHAS
FRONT AND REAR BRAKES
EAS00584

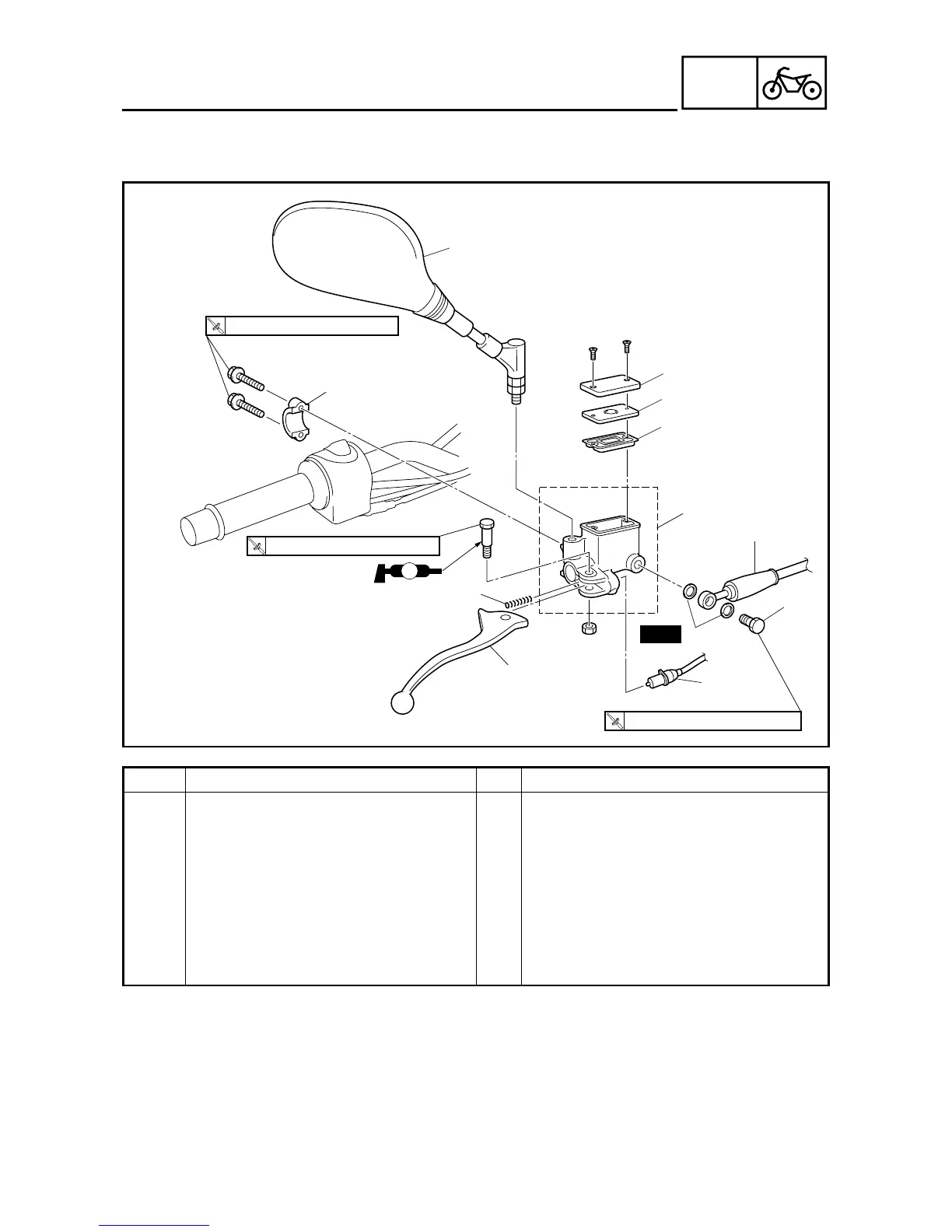

FRONT BRAKE MASTER CYLINDER
T
R
.
.
30 Nm (3.0 m
•
kg, 22 ft
•
Ib)
T
R
.
.
7 Nm (0.7 m
•
kg, 5.1 ft
•
Ib)
T
R
.
.
6 Nm (0.6 m
•
kg, 4.3 ft
•
Ib)
5
7
8
6
1
4
3
2
9
10
12
11
LS
New
Order Job/Part Q’ty Remarks
Removing the front brake master
cylinder
Remove the parts in the order listed.
Brake fluid Drain.
1 Rearview mirror (right) 1
2 Brake master cylinder reservoir cap 1
3 Brake master cylinder reservoir dia-
phragm holder
1
4 Brake master cylinder reservoir dia-
phragm
1

Yamaha XT660X Specifications

General

Displacement	660cc
Bore x Stroke	100.0 mm x 84.0 mm
Compression Ratio	10.0:1
Fuel System	Fuel Injection
Ignition System	TCI
Transmission	5-speed
Final Drive	Chain
Rear Brake	Single disc, Ø 245 mm
Front Tyre	120/70 R17
Rear Tyre	160/60 R17
Maximum Power	48 HP (35.3 kW) @ 6, 000 rpm
Maximum Torque	58.4Nm (43.1lb-ft) @ 5, 250rpm
Front Suspension	Telescopic fork
Rear Suspension	Swingarm, (link suspension)
Fuel Tank Capacity	15 litres
Engine Type	Liquid-cooled, 4-stroke, single cylinder, SOHC, 4-valves
