PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
XT660X
EAUM1682

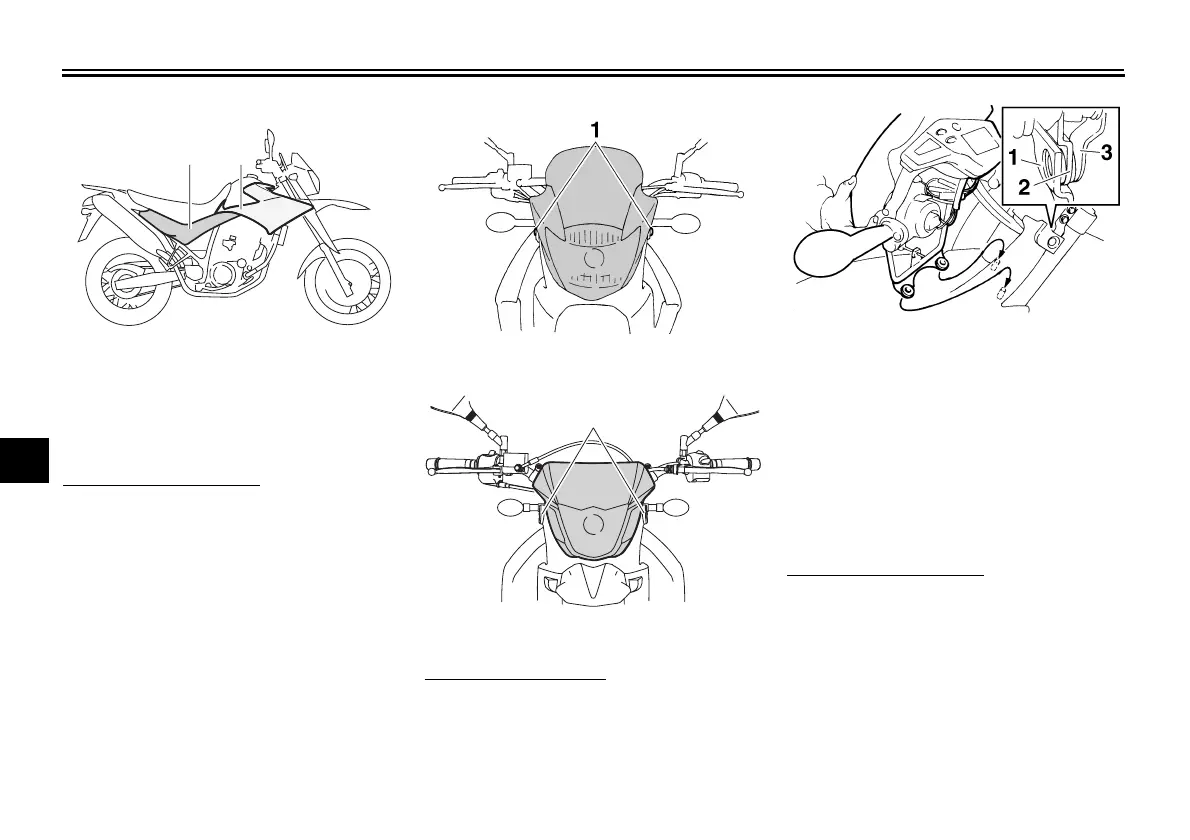

Cowling A
To remove the cowling
Remove the bolts and spacers, and
then lift the cowling up to remove it.
XT660R
XT660X
To install the cowling
1. Place the cowling bracket tab be-
tween the protector and the brack-
et on each side.
2. Place the cowling in the original
position, and then install the bolts
and spacers.
EAUM1692
Cowling B (XT660R)
To remove the cowling
1. Remove the seat and panel B.
(See pages 3-12 and 6-5.)
2. Remove the bolts, and then re-
move the quick fastener screws by
turning them 1/4 turn counterclock-
wise.
3. Pull the cowling off at the area
shown.
1. Cowling B
2. Panel B
2 1
1. Bolt
1. Bolt
1
1. Protector
2. Cowling bracket tab
3. Bracket
