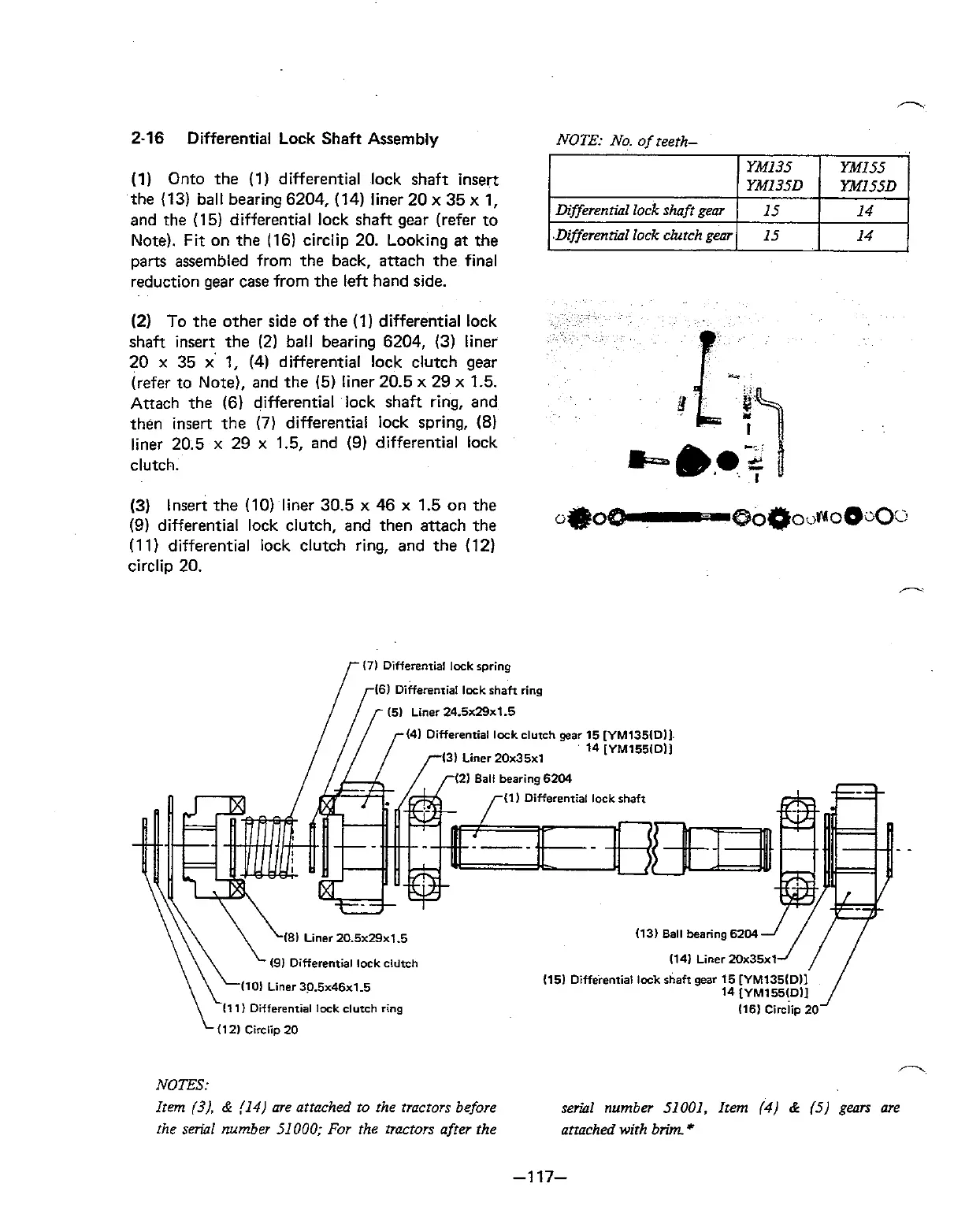

2-16 Differential Lock Shaft Assembly

(1)

Onto the (1) differential lock shaft insert

the

(13) ball bearing 6204, (14) liner 20

and the (15) differential lock shaft gear (refer to

Note). Fit on the (16) circlip 20. Looking at the

parts assembled from the back, attach the final

reduction gear case from the left hand side.

(2) To the other side of the (1) differential lock

shaft insert the

(2) ball bearing 6204, (3) liner

1, (4) differential lock clutch gear

(refer to Note), and the (5) liner 20.5

1.5.

Attach the

(6) differential lock shaft ring, and

then insert the

(7)

differential lock spring,

(8)

liner 20.5

1.5, and

(9)

differential lock

clutch.

(3) Insert the

(10) liner 30.5

1.5 on the

(9) differential lock clutch, and then attach the

(11) differential lock clutch ring, and the

(12)

circlip 20.

NOTE: No. of reeth-

(71 Oifferential lock spring

Differenzial lock shaft gear

(61 ~ifferential lock shaft ring

(51 Liner 24.5x29x1.5

(41 Differential lockclutch gear 15 [YM135(DIl.

14 [YM155(Dll

(21 Ball bearing 6204

(11 Differential lwkrhaft

(81 Liner 20.5x29x1.5

(131 Ball bearing

6204

(91 Differential lock cillfch

(141 Liner 20x35~1

(101 Liner30.5x46x1.5

I1 11 Differential lock clutch ring

NOTES:

Irem (31,

(14) are attached ro the tracrors before

serial number 51001. Item

(4)

(5)

gears

are

rhe

serial number 51000; For the RUCtOrS after the

atrached with brim

Differenzial lock clurch gear
