9 Electrical Installation
YASKAWA TOEPC71061723A YASKAWA AC Drive CR700 Quick Start Guide 29
6. Install the front cover and the keypad to their initial positions.
■ Wire the Main Circuit Terminal Block with Procedure B
Notes on Wiring the Main Circuit Terminal Block
Note:
• After the wiring, do not twist or shake the electrical wires too much.
• Be sure to use only wires with the correct size, stripped wire length, and tightening torque as specified by Yaskawa.
• Use tools that fit the shape of the screw head to tighten and loosen the terminal block screws.
• Make sure that there are no loose stranded wires or frayed wires after wiring is complete.
Main Circuit Terminal Block Wiring Procedure
Remove the terminal cover before wiring the main circuit terminal block.

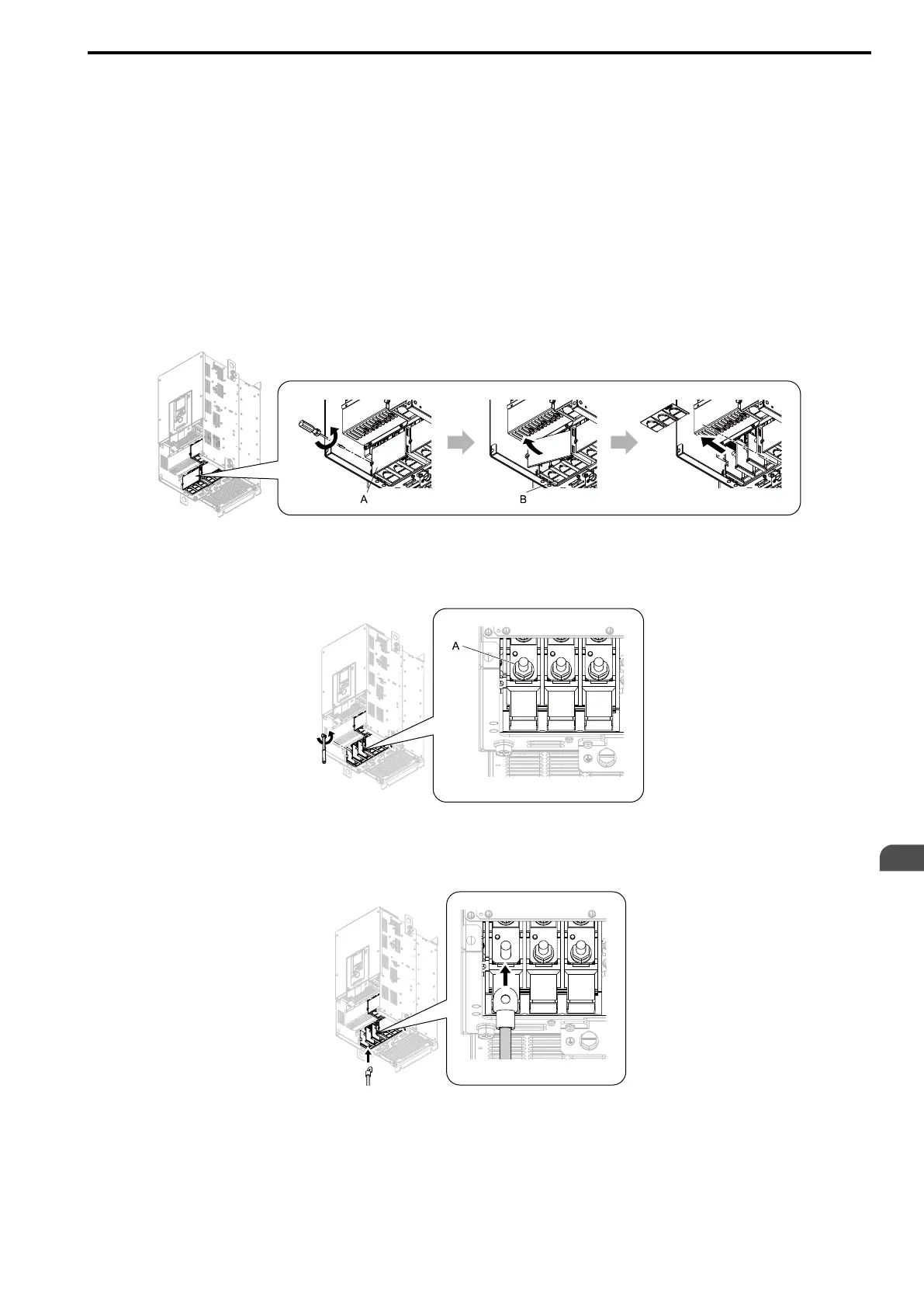

1. Remove the screws on the terminal block cover and pull the terminal block cover away from the drive. Pull
the wiring cover away from the drive to remove the wiring cover after removing the terminal block cover.
A - Terminal block cover B - Wiring cover
Figure 9.10 Remove the Wiring Cover
2. Remove the terminal block nut.
A - Nut
Figure 9.11 Remove the Terminal Block Nut
3. Wire the closed-loop crimp terminal to the main circuit terminal block.
Figure 9.12 Install the Electrical Wire
EN
To Next Page
