9 Electrical Installation
48 YASKAWA TOEPC71061723A YASKAWA AC Drive CR700 Quick Start Guide
A - Loosen the screws and put the wire into the
opening on the terminal block.
B - Wire with a crimp ferrule attached, or
unsoldered wire with the core wires lightly
twisted
C - Pull back the shielding and lightly twist the end
with your fingers to keep the ends from fraying.
D - When you do not use crimp ferrules, remove
approximately 5.5 mm (0.21 in) of the covering
at the end of the wire.
E - Blade width of 2.5 mm (0.1 in) or less
F - Blade thickness of 0.4 mm (0.01 in) or less

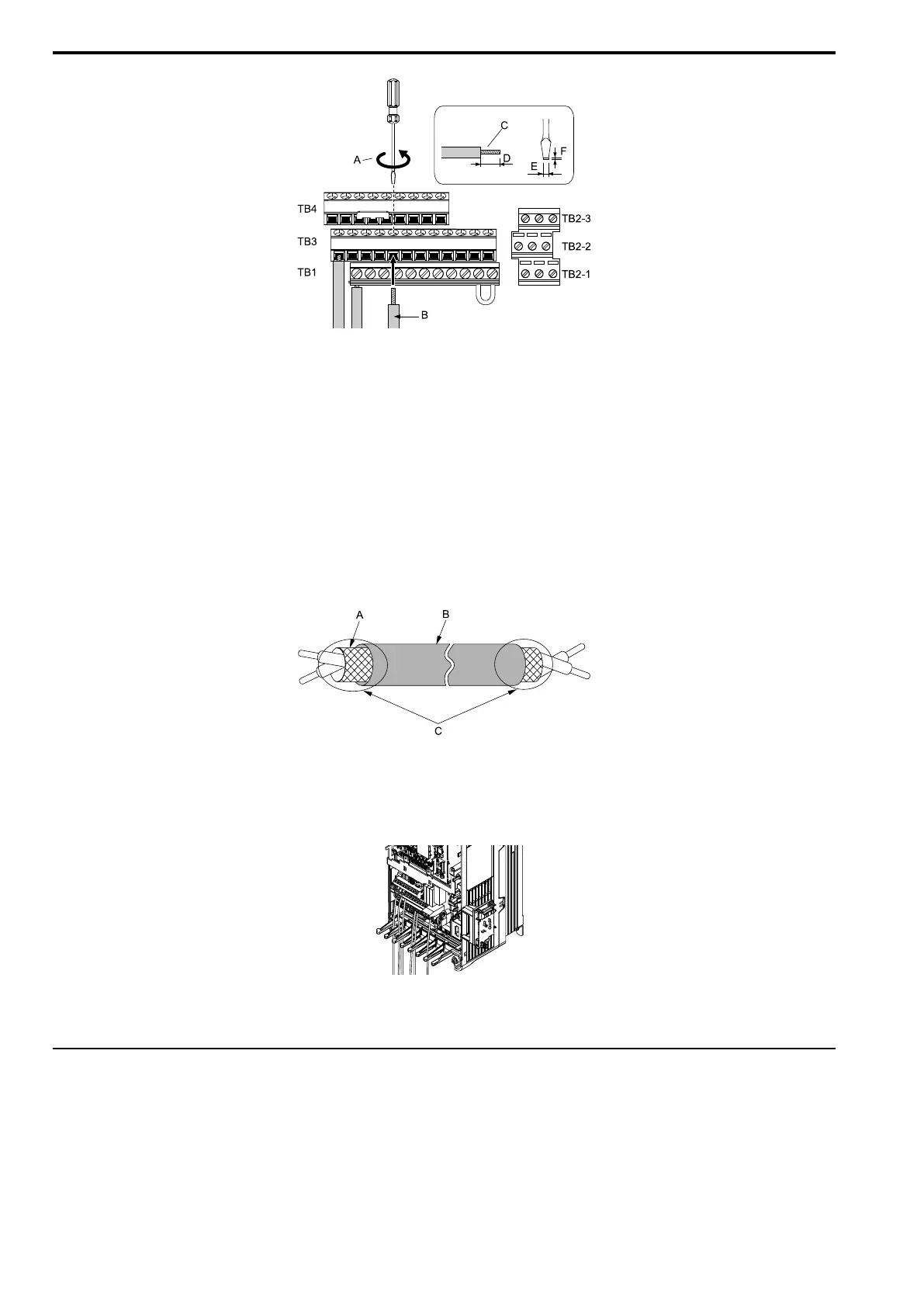

Figure 9.25 Wiring Procedure for the Control Circuit
Note:
• Do not solder the core wire. Soldered wiring connections can become loose and cause the drive to malfunction.
• Tighten all terminal screws to the correct tightening torque. Connections that are too loose or too tight can cause incorrect
operation and damage to the drive. Incorrect connections can also cause death or serious injury from fire.
• Refer to Figure 9.26 for information to prepare terminal ends of the shielded wire.
• Prepare the wire ends of shielded twisted-pair wires as shown in Figure 9.26 to use an analog reference from an external
frequency setting potentiometer to set the frequency. Connect the shield to terminal E (G) of the drive.
A - Connect the shield to terminal E (G) of the drive.
B - Sheath
C - Insulate with electrical tape or shrink tubing.
Figure 9.26 Prepare the Ends of Shielded Wire
3. Put the cable through the clearance in the wiring cover.
Figure 9.27 Control Circuit Wiring
4. Install the LED status ring board, front cover, and the keypad to their initial positions.
◆ Switches and Jumpers on the Terminal Board
The terminal board is equipped with several switches used to adapt the drive I/Os to the external control signals as
shown in the Figure 9.28.
Set the switches to select the functions for the respective terminals.
To Next Page
