Yealink MVC840 User Manual

4
MTouch
3x HDMI out
3
4
Installation
Connection
• MCore Pro supports
:
mount on the wall, mount on the TV, stick to the table.
• MTouch Plus supports: put on a table, paste on a table, xed on a table, mount on the wall.
• UVC84 supports
:
put on a at surface, mount on top of a display, mount on the wall, mount on the ceiling,
mount on the TV mount.
• RoomSensor
supports: mount on the ceiling, mount on the wall.
• Install and deploy the accessories in the system according to the environment and actual needs. For how
to install and deploy, please refer to the quick start guide of each product.

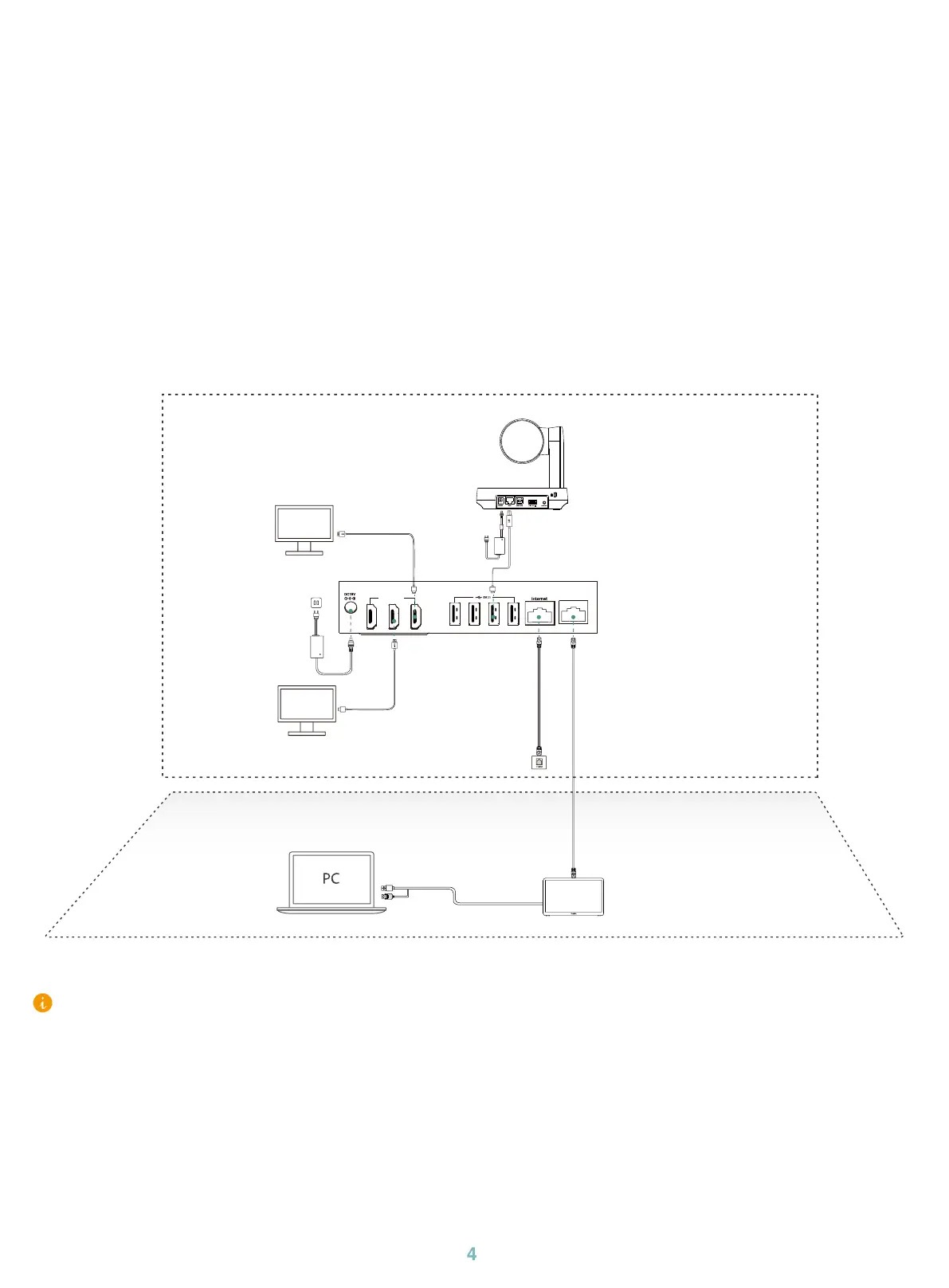

Display
(not included)
Display
(not included)
UVC84
MCore Pro
(2.1 m, 6.89 ft)
Power
(19V/4.74A)
(1.8 m, 5.91 ft)
HDMI
(1.8 m, 5.91 ft)
HDMI
(1.2 m, 3.94 ft) USB 3.1 (C - C, HDMI)
• When starting up the system for the rst time, you need to connect a mouse to complete the initial
conguration. We recommend using the wireless mouse and keyboard kit.
• Not included accessories requirements:
»
Display: Resolution of 1080p or higher and with an HDMI port.
»
PC: Equipped with HDMI or USB-C (support DP protocol) Port.
»
Ethernet cable: CAT5e or higher ethernet cable.
»
HDMI: Standard HDMI cable.
»
PoE switch: If you use PoE to connect speakers or cameras, you need to use PoE+.
PC
(not included)
MTouch Plus
CAT5e Cable
(not included)
(7.5 m, 24.60 ft) CAT5e
(3.5m, 11.48ft)
Power
(48V/0.7A)
(2.5m, 8.20ft)
USB 2.0 (A - B) Cable

Yealink MVC840 Specifications

General

Bluetooth	Yes
Pan range	0 - 200 °
Product type	Group video conferencing system
Product color	Black, Grey
Tilt angle range	0 - 130 °
Number of cameras	1
Number of persons	- person(s)
Number of microphone arrays	3
Megapixel	- MP
Camera type	Single camera
Sensor type	-
Image sensor size	- \
Diagonal field of view	80 °
Vertical field of view	130 °
Horizontal field of view	200 °
Optical zoom (normal mode)	12 x
USB connector type	USB Type-B
HDMI output ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Maximum frame rate	30 fps
Display diagonal	8 \
Touchscreen type	Capacitive
Display resolution	1280 x 800 pixels
Internal memory	8000 MB
Storage media type	SSD
Total storage capacity	128 GB
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Processor family	Intel® Core™ i5
Computer system type	Mini PC
Operating system installed	Windows 10 IoT
Harmonized System (HS) code	85176990
