Yealink UVC84 User Manual

1

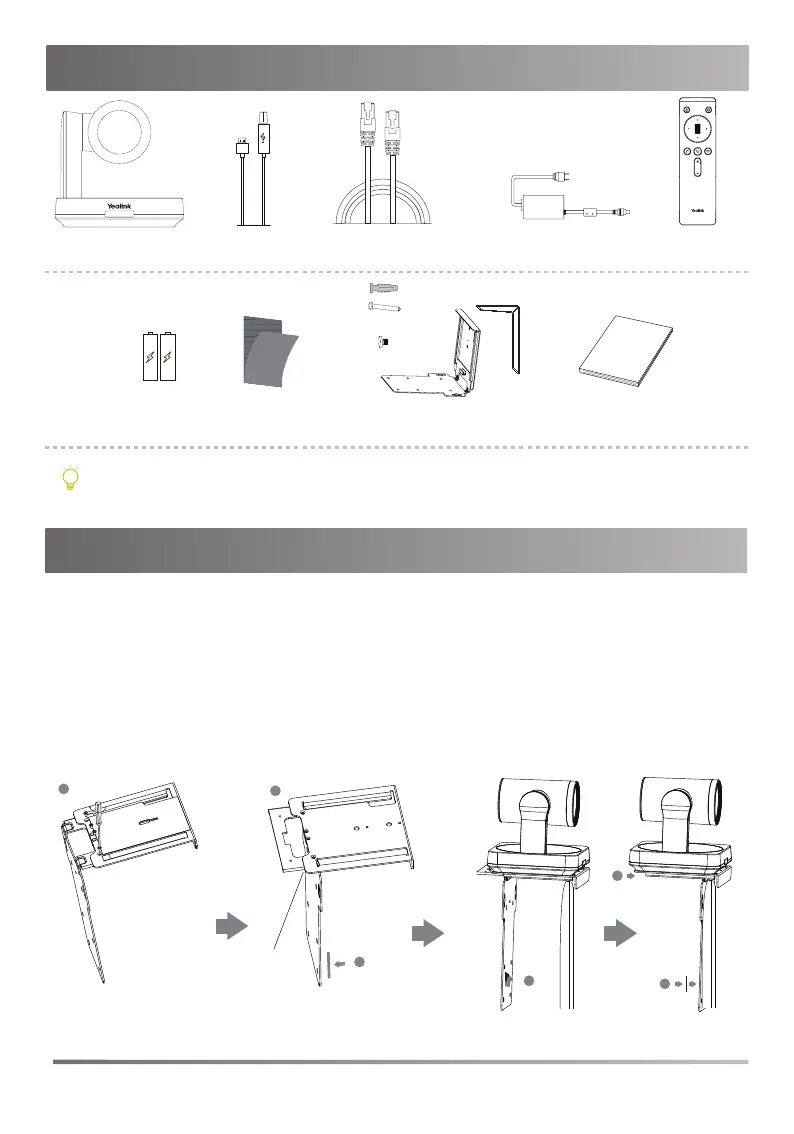

Package Contents
(T4×30 screw)
X 4
X 4
X 5
(1/4'' -20 UNC screw)
UVC84
7m
USB Cable
7.5m
Ethernet Cable
Power Adapter
48V/0.7A
VCR20
Remote Control
AAA
Battery×2
Velcro×5
Mounting Bracket
and Accessories
UVC84
Quick Start Guide
We recommend that you use the accessories provided or approved by Yealink. The use of
unapproved third-party accessories may result in poor performance.
UVC84 Installation
• Mount on top of a display
Choose the following installation method when the thickness of the TV is between 0mm and 50mm.






3M Velcro
Pay attention to the direction
of the bracket.
• Put on a Flat Surface
You can put the UVC84 on the conference table, and make sure that the angle of inclination of the
UVC84 is not more than 5 degrees to ensure proper operation.

Yealink UVC84 Specifications

General

Maximum frame rate	30 fps
Supported video modes	720p, 1080p
Maximum video resolution	3840 x 2160 pixels
Resolution at capture speed	1280x720@30fps, 1920x1080@30fps, 3840x2160@30fps
Supported graphics resolutions	1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160
Megapixel	- MP
Camera type	Single camera
Digital zoom	3 x
Optical zoom	12 x
Combined zoom	36 x
White balance	ATW, Auto, Manual
Zoom capability	Yes
Focal length range	3.9 - 46.8 mm
Aperture range (F-F)	1.6 - 2.8
Light exposure modes	Auto, Manual
Minimum illumination	0.1 lx
Vertical field of view	45 °
Horizontal field of view	73 °
Field of view (FOV) angle	80 °
Signal-to-Noise Ratio (SNR)	63 dB
Fastest camera shutter speed	1/10000 s
Slowest camera shutter speed	0.01667 s
Pan range	-100 - 100 °
Mounting type	Stand
Product color	Black
Tilt angle range	-90 - 40 °
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	1
Input current	0.7 A
AC input voltage	100-240 V
DC input voltage	48 V
Power source type	AC, DC
Mac operating systems supported	Mac OS X 10.10 Yosemite
Windows operating systems supported	Windows 10, Windows 7
Cables included	USB
USB cable length	7 m
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Harmonized System (HS) code	85258900

Weight and Dimensions

Width	156 mm
Height	183 mm
Weight	2900 g
Height (max)	192 mm
