567175-YTG-E-0512
Johnson Controls Unitary Products 15
ACCESSORIES
Hard Start Kit - Provides increased starting torque for areas
with low voltage. See Hard Start Kit Accessory Installation
Manual for Hard Start Kit part number for each model.
TXV Kits - S1-1TVM series thermal expansion valves precisely
meter refrigerant for optimum performance over a wide range of
conditions. See System Charge table for TXV part number for
each model.
Low Ambient Pressure Switch Kit (S1-2LA06700424) -
Allows use of air conditioning at low outdoor ambient tempera-
tures. For use with models containing R-410A refrigerant only.
Dehumidistat (S1-2HU16700124) - Provides increased dehu-
midification when matched with variable speed furnace or air
handler.
Thermostats - Compatible thermostat controls are available
through accessory sourcing. For optimum performance, these
outdoor units are fully compatible with the Residential Touch-
screen Communicating Control S1-TTSCC01.
SOUND POWER LEVEL - TYPICAL OCTAVE BAND SPECTRUM (without tone adjustment)
Rated in accordance with ARI Standard 270-2008.

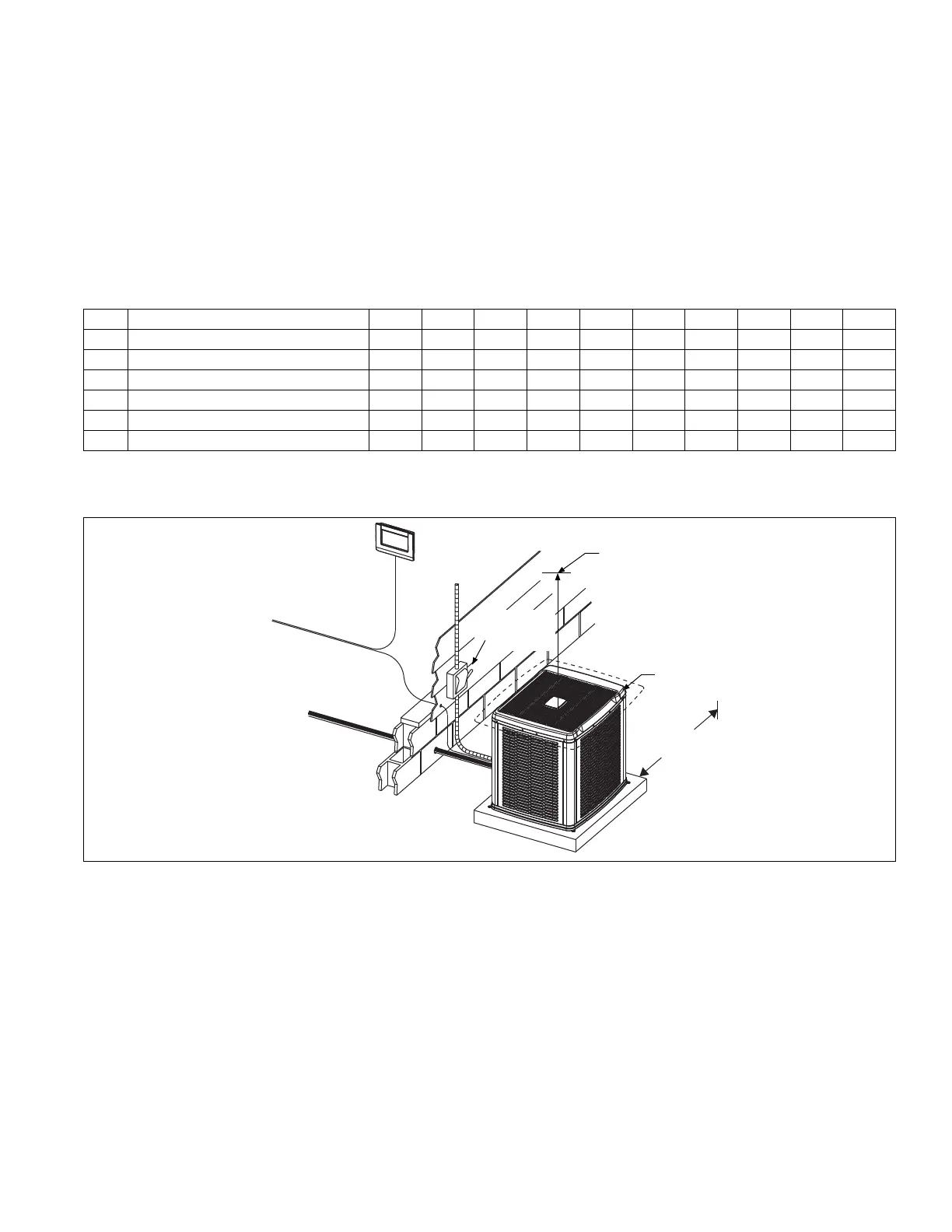

TYPICAL INSTALLATION
Size Test Condition 63 125 250 500 1000 2000 4000 8000 dBA SQI
024 Cooling Mode 72 75 66 66 61 54 47 40 67 19.2
030 Cooling Mode 70 77 67 69 66 58 51 47 70 19.1
036 Cooling Mode 74 73 70 71 69 63 57 51 73 19.0
042 Cooling Mode 78 72 69 70 67 61 55 48 71 19.1
048 Cooling Mode 72 73 70 70 67 62 58 52 72 19.0
060 Cooling Mode 76 73 74 70 70 62 58 55 74 19.2
THERMOSTAT
NEC CLASS 1
WIRING
TO INDOOR
BLOWER
NEC CLASS 2
WIRING
TO COIL
WEATHERPROOF
DISCONNECT
SWITCH
24” SERVICE
ACCESS
CLEARANCE
ALL OUTDOOR WIRING MUST BE WEATHERPROOF
MINIMUM 24” UNIT TO UNIT CLEARANCE
SEAL OPENINGS WITH
PERMAGUM OR EQUIVALENT
60” OVERHEAD
CLEARANCE
10” CLEARANCE
AROUND PERIMETER
NOTES:
